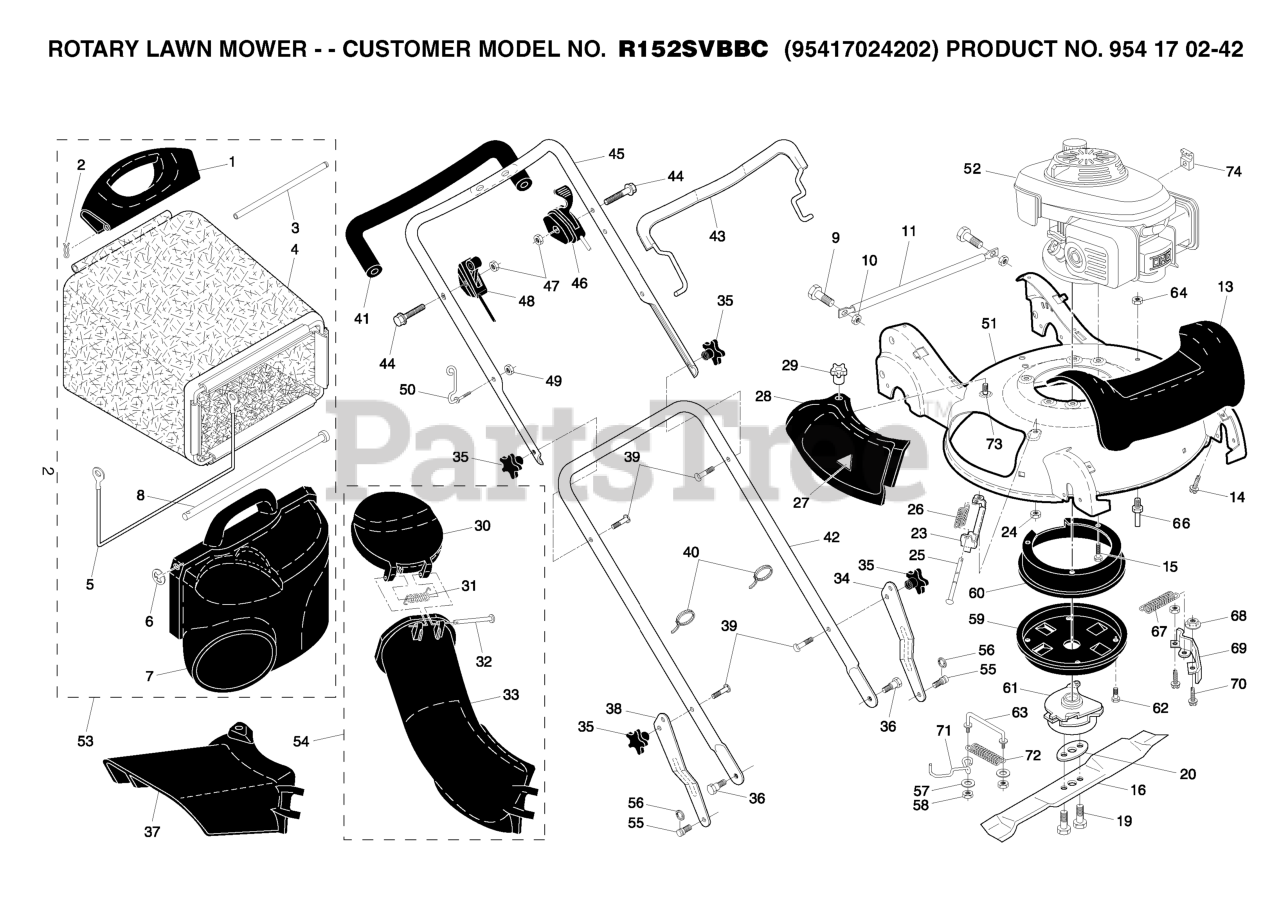

R 152 (954170242-02) - Husqvarna Walk-Behind Mower (2005-04) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title
70

Husqvarna 874780410

BOLT
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

71

Husqvarna 532188545

BELT KEEPER

$15.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532194070

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 532190580

CHUTE.DOOR.21.HV.H-GRAY

$17.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, Qty 7

0

51

Husqvarna 532194088

NEEDS DESCRIPTION

$

$

Currently unavailable

60

Husqvarna 532190930

COVER.BELT.BBC.AW.TOP

$27.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532183465

SHOULDER BOLT
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

64

Husqvarna 873197033

NEEDS DESCRIPTION

$

$

Currently unavailable

66

Husqvarna 532182131

STUC.GUIDE.BELT.RWGD

$17.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532191257

THROTTLE CONTROL

$

$

Not available

24

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

14

Husqvarna 532184572

SCREW
(Superseded to 532194189)

$7.49

$

In Stock, Qty 20+

0

- -

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

$

$

Not available

5

Husqvarna 532188506

FRAME, GRASSBAG

$27.99

$

In Stock, only 1 left!

0

16

Husqvarna 532180459

BLADE.21".BBC

$27.99

$

In Stock, only 1 left!

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

26

Husqvarna 532183446

SPRING.MULCH.DOOR

$7.49

$

In Stock, only 4 left!

0

63

Husqvarna 532180188

LINK.TORQUE.BBC

$15.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

62

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

55

Husqvarna 532188628

STUD, SHOULDER
(Superseded to 532194192)

$6.49

$

In Stock, only 1 left!

0

72

Husqvarna 532180394

SPRING.LINK.BBC

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532183609

BRACKET.ASM.HINGE

$

$

Not available

$7.99

$

In Stock, only 1 left!

0

47

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

69

Husqvarna 532190929

BRAKE, CLUTCH
(Superseded to 532188525)

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532189014

CHUTE.LOWER.ASM.WALK.MOWER

$

$

Not available

7

Husqvarna 532190581

DOOR, GRASSBAG
(Superseded to 532188498)

$50.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 532186299

BAIL
(Superseded to 583754701)

$42.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532188634

STUD.INSERT

$

$

Not available

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532190619

ADJUSTMENT BRACKET, LOWER LH
(Superseded to 532187063)

$

$

Not available

20

Husqvarna 532193409

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532190519

COVER, FRONT
(Superseded to 586531501)

$

$

Not available

19

Husqvarna 532193407

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 532187096

HANDLE.LOWER.GREY

$31.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

MULCHER DOOR
(Superseded to 532188507)

$

$

Not available

50

Husqvarna 532188501

GUIDE.ROPE.WALK.MOWER

$15.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

DISCHARGE CHUTE PLASTIC
(Superseded to 532188504)

$

$

Not available

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532194086

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532190903

BRACKET.THROTTLE

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

$54.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532196541

CONTROL.BBC.HV.GRY/ORG

$87.99

$

In Stock, only 2 left!

0

1

Husqvarna 532190582

HANDLE.GRASSBAG.REAR.H-GRAY

$14.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532194087

NEEDS DESCRIPTION

$

$

Currently unavailable

38

Husqvarna 532190621

BRACKET.ADJ.LOWER.HDL.RT.GREY

$

$

Not available

11

Husqvarna 532190692

TUBE, REAR SKIRT
(Superseded to 532188359)

$34.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532194071

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 532183479

ROD, PIVOT

$15.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532180393

SPRING.BBC

$5.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532190931

BELT COVER, LOWER
(Superseded to 532188546)

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0
