R 15-V2 AWD - Husqvarna Swedish Riding Mower (2008-01) PEDALS Parts Diagram

Swedish Riding Mower

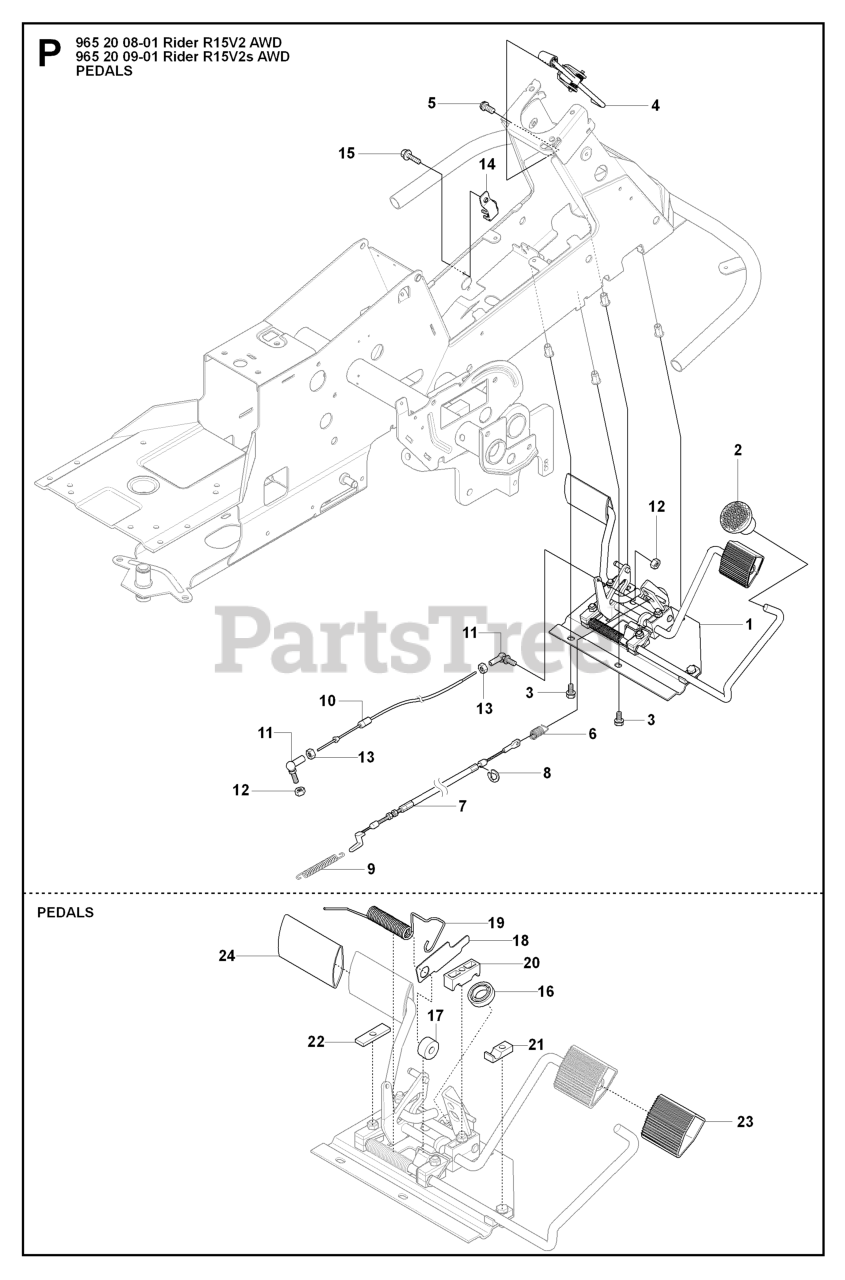

PEDALS Parts Diagram

  • Title
19

Husqvarna 535480701

SPRING
(Superseded to 535459501)

$9.49

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 535478801

PEDAL RUBBER
(Superseded to 586966401)

$17.99

$

In Stock, only 2 left!

0

24

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$17.99

$

In Stock, only 3 left!

0

20

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$7.99

$

Usually ships in 3-10 days

0

$9.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 535489601

RP WIRE
(Superseded to 576712101)

$37.99

$

In Stock, only 1 left!

0

18

Husqvarna 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$159.99

$

Usually ships in 3-10 days

0

8

$7.49

$

In Stock, Qty 7

0

12

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

4

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

14

Husqvarna 544341701

BRACKET
(Superseded to 522430801)

$6.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

$2.49

$

In Stock, Qty 8

0

21

Husqvarna 535480901

SUPPORT
(Superseded to 506954101)

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 535481001

PLATE
(Superseded to 506804101)

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

2

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

10

Husqvarna 506827202

%WIRE
(Superseded to 582152001)

$120.99

$

Usually ships in 3-10 days

0
