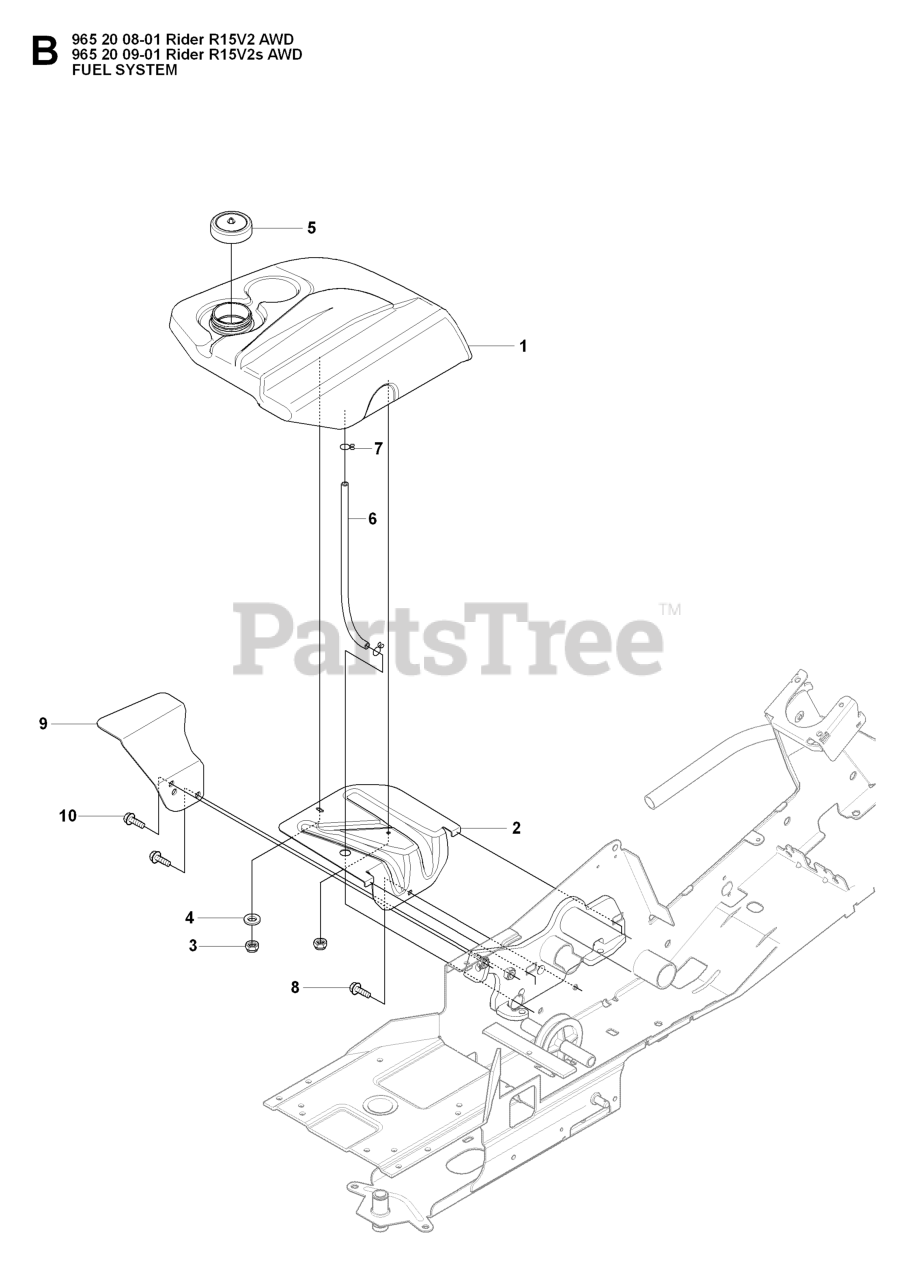

R 15-V2 AWD - Husqvarna Swedish Riding Mower (2008-01) FUEL SYSTEM Parts Diagram

Swedish Riding Mower

FUEL SYSTEM Parts Diagram

  • Title

1

Husqvarna 535501301

FUEL TANK

$

$

Not available

4

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

7

Husqvarna 535469701

CLAMP

$

$

Not available

5

Husqvarna 506673301

FUEL CAP

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 501020301

SUPPORT

$

$

Not available

3

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

2

Husqvarna 544329301

BRACKET

$

$

Not available

6

Husqvarna 506946703

HOSE

$

$

Not available

10

Husqvarna 725249371

Screw M10x25

$1.99

$

Usually ships in 3-10 days

0
