R 15-V2 AWD (965094701) - Husqvarna Swedish Riding Mower (2007-01) TRANSMISSION 2 Parts Diagram

Swedish Riding Mower

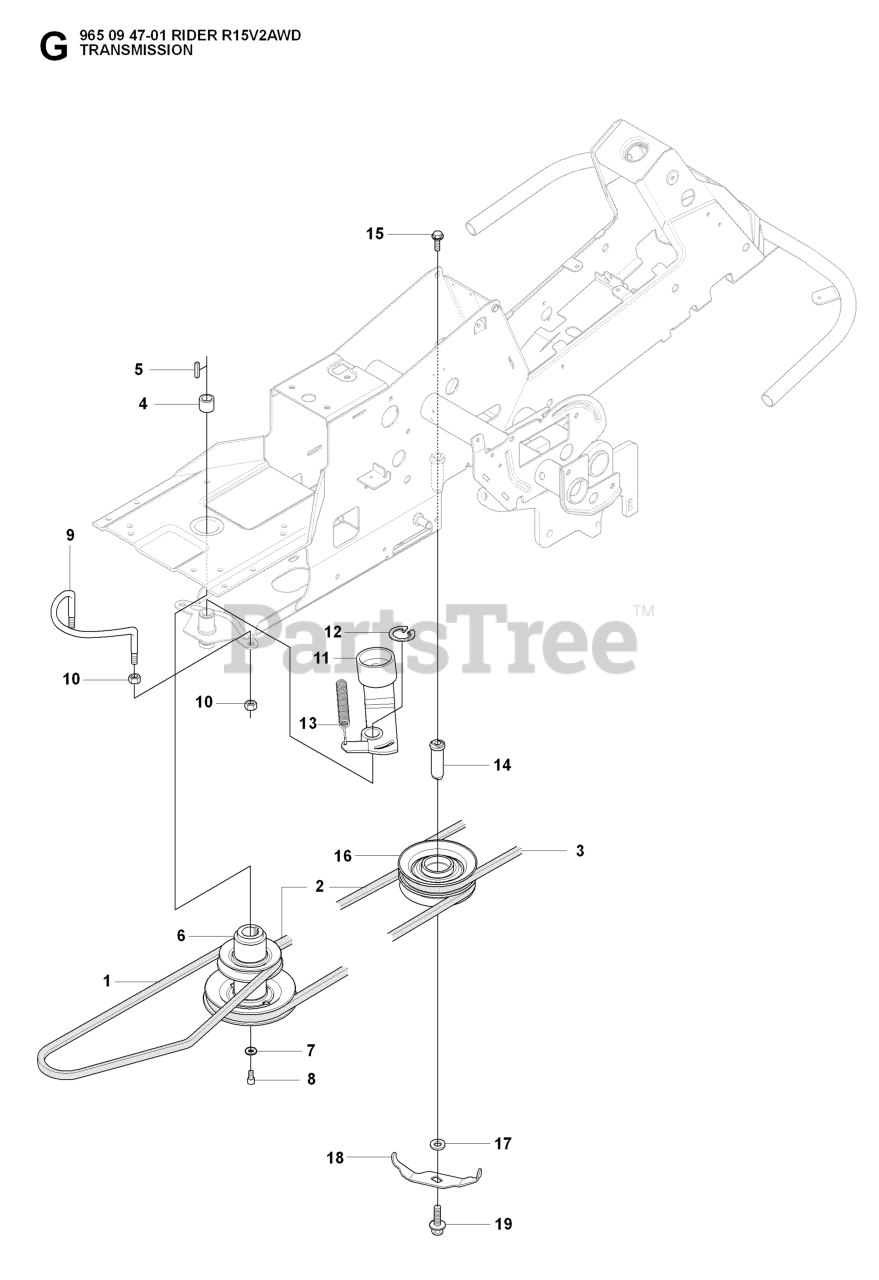

TRANSMISSION 2 Parts Diagram

  • Title

4

Husqvarna 506509201

SPACER

$11.99

$

In Stock, only 1 left!

0

8

Husqvarna 506556002

SCREW

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

13

Husqvarna 506665601

SPRING

$28.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506675401

BOLT

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 506555901

KEY

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 535482201

PULLEY

$74.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506597501

WASHER

$

$

Not available

11

Husqvarna 535484401

TENSIONER

$62.99

$

In Stock, only 1 left!

0

9

Husqvarna 506664501

BELT GUIDE

$42.99

$

Usually ships in 3-10 days

0

1

Husqvarna 506988301

BELT
(Superseded to 589531201)

$34.99

$

In Stock, only 1 left!

0

3

Husqvarna 594978001

BELT

$84.99

$

In Stock, only 2 left!

0

18

Husqvarna 544405301

BELT GUIDE

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544400201

BELT
(Superseded to 589530401)

$45.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506775701

WASHER

$5.99

$

In Stock, only 1 left!

0

6

Husqvarna 535482401

PULLEY

$79.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544426101

SHAFT
(Superseded to 581916401)

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0
