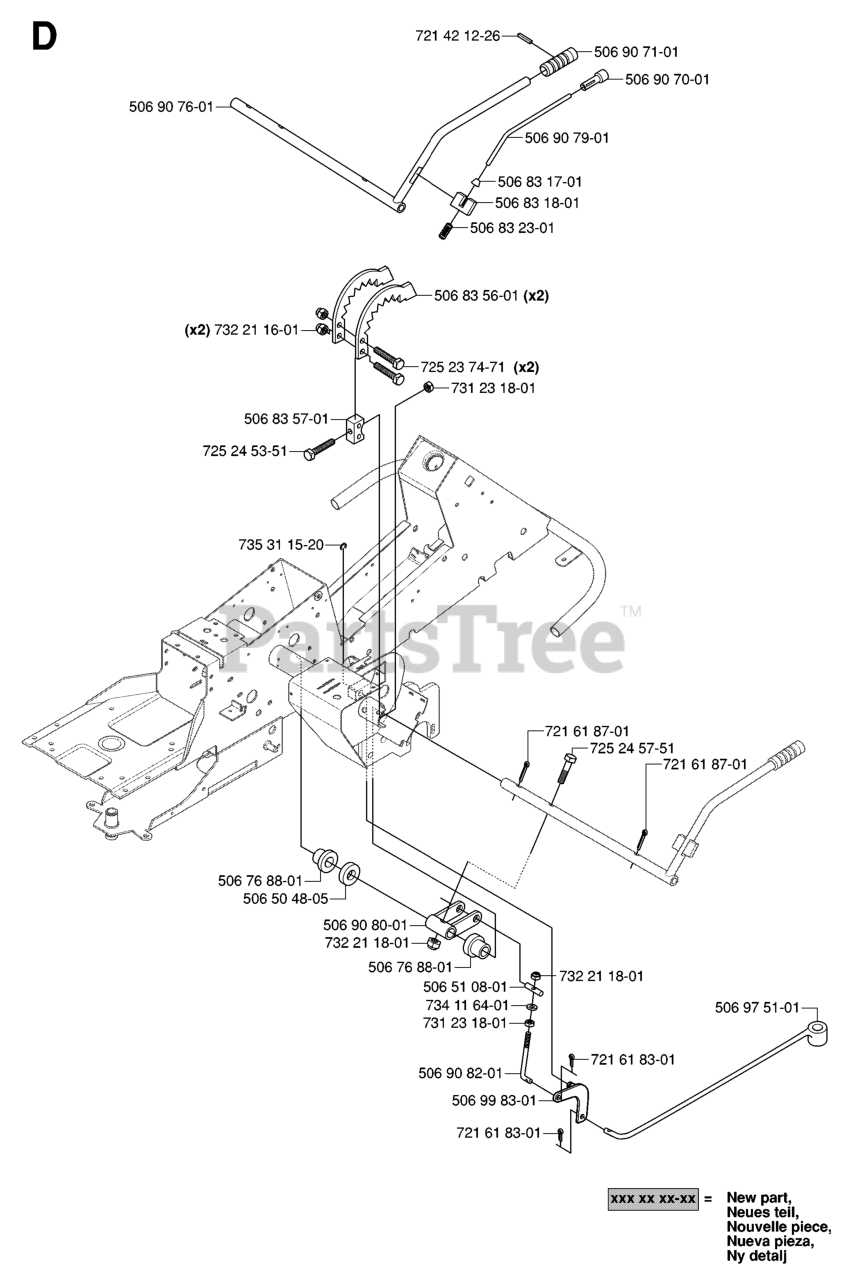

R 15-V2 AWD (965080101) - Husqvarna Swedish Riding Mower (2006-05) CONTROLS Parts Diagram

Swedish Riding Mower

CONTROLS Parts Diagram

  • Title

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

725 23 74-71

Husqvarna 725237471

SCREW M6S 6X30

$5.99

$

In Stock, Qty 20+

0

735 31 15-20

Husqvarna 735311520

RETAINING RING

$3.49

$

Usually ships in 3-10 days

0

725 24 57-51

Husqvarna 725245751

SCREW

$5.99

$

In Stock, only 1 left!

0

725 24 53-51

Husqvarna 725245351

SCREW M6S 8X25
(Superseded to 725245371)

$5.99

$

Usually ships in 3-10 days

0

721 61 87-01

Husqvarna 721618701

COTTER PIN

$4.99

$

In Stock, only 3 left!

0

506 99 83-01

Husqvarna 506998301

Bracket

$

$

Not available

506 90 80-01

Husqvarna 506908001

Lever

$

$

Not available

506 76 88-01

Husqvarna 506768801

Bushing

$

$

Not available

732 21 16-01

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

506 90 71-01

Husqvarna 506907101

KNOB

$

$

Not available

721 61 83-01

Husqvarna 721618301

Split Pin

$

$

Not available

506 83 57-01

Husqvarna 506835701

Clamp

$

$

Not available

721 42 12-26

Husqvarna 721421226

SPRING PIN 3X24

$6.49

$

In Stock, only 2 left!

0

506 83 17-01

Husqvarna 506831701

END PIECE

$

$

Not available

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506 83 23-01

Husqvarna 506832301

SPRING

$

$

Not available

506 50 48-05

Husqvarna 506504805

WASHER

$4.99

$

In Stock, only 4 left!

0

506 97 51-01

Husqvarna 506975101

CLUTCH ROD

$33.99

$

In Stock, only 1 left!

0

506 90 82-01

Husqvarna 506908201

LINKAGE

$13.99

$

Usually ships in 3-10 days

0

506 90 70-01

Husqvarna 506907001

BUTTON

$

$

Not available

506 51 08-01

Husqvarna 506510801

CLEVIS PIN

$

$

Not available

506 83 18-01

Husqvarna 506831801

CATCH

$22.99

$

Usually ships in 3-10 days

0

506 90 79-01

Husqvarna 506907901

ROD

$

$

Not available

506 83 56-01

Husqvarna 506835601

Index Plate

$

$

Not available

506 90 76-01

Husqvarna 506907601

LEVER

$

$

Not available
