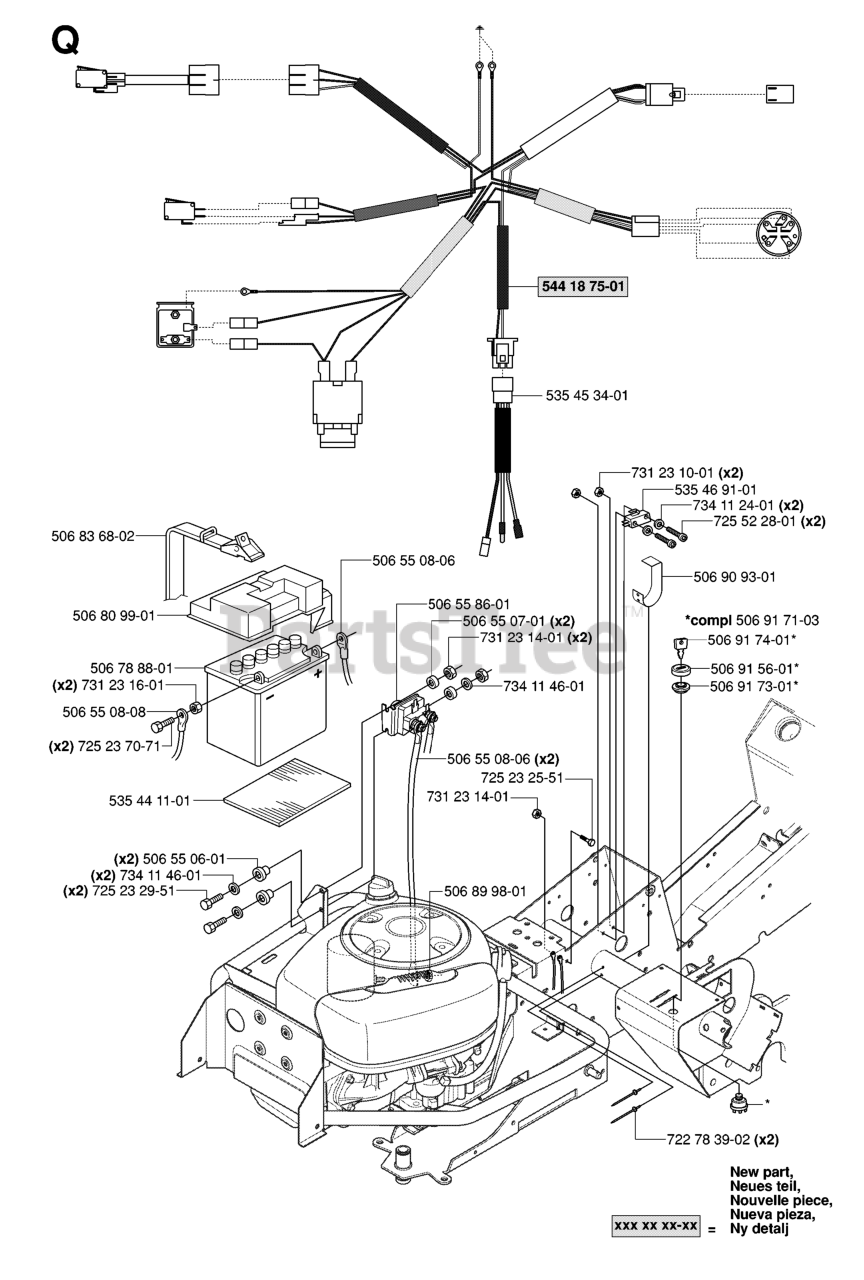

R 15-V2 AWD (965080101) - Husqvarna Swedish Riding Mower (2006-01) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title
506 80 99-01

$

$

Not available

506 55 08-08

$

$

Not available

731 23 10-01

Husqvarna 731231001

NUT M6M M3

$3.99

$

Usually ships in 3-10 days

0

731 23 14-01

$2.49

$

Usually ships in 3-10 days

0

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

506 91 56-01

Husqvarna 506915601

GROMMET
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

725 23 29-51

Husqvarna 725232951

Slotted Truss Head Screw #10-32 x 5/8"

$

$

Not available

506 55 07-01

$

$

Not available

725 23 70-71

$7.49

$

Usually ships in 3-10 days

0

535 44 11-01

$

$

Not available

734 11 24-01

Husqvarna 734112401

WASHER BRB 3.2X7

$2.99

$

Usually ships in 3-10 days

0

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

506 55 08-06

$

$

Not available

731 23 14-01

$2.49

$

Usually ships in 3-10 days

0

722 78 39-02

$

$

Not available

506 91 71-03

Husqvarna 506917103

IGNITION SWITCH

$

$

Not available

506 89 98-01

$

$

Not available

506 91 74-01

Husqvarna 506917401

KEY
(Superseded to 516844602)

$

$

Not available

506 55 08-06

$

$

Not available

506 55 86-01

Husqvarna 506558601

STARTING SOLENOID

$

$

Not available

535 45 34-01

$

$

Currently unavailable

506 91 73-01

Husqvarna 506917301

SWITCH
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

506 90 93-01

$

$

Not available

725 23 25-51

$

$

Not available

506 55 06-01

$5.99

$

In Stock, only 1 left!

0

544 18 75-01

Husqvarna 544187501

CABLE ASSY

$

$

Not available

506 78 88-01

Husqvarna 506788801

BATTERY - DRY
(Superseded to 531031071)

$

$

Not available

535 46 91-01

Husqvarna 535469101

%BRAKER
(Superseded to 574316001)

$14.99

$

In Stock, only 1 left!

0

731 23 16-01

$6.49

$

In Stock, only 1 left!

0

725 52 28-01

$

$

Not available

506 83 68-02

$11.99

$

Usually ships in 3-10 days

0
