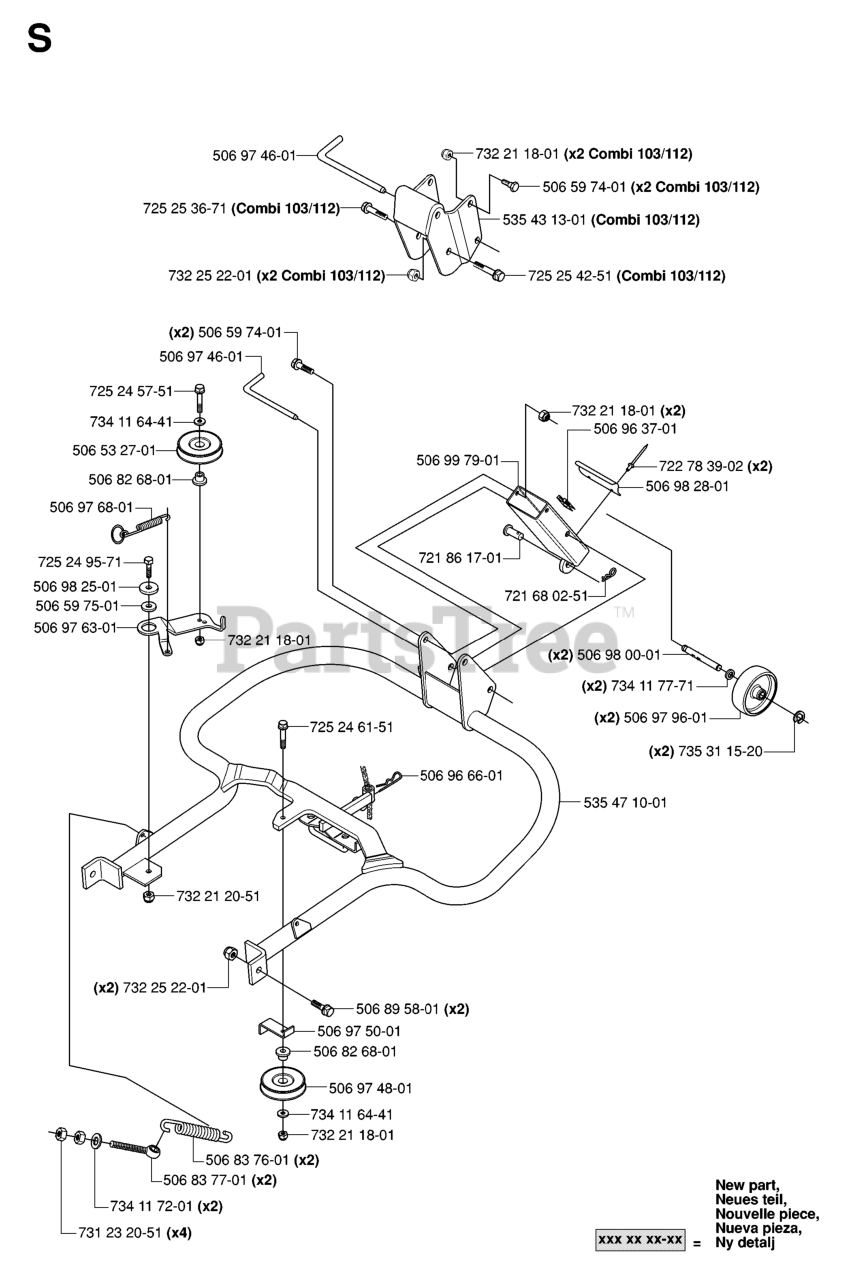

R 15-V2 (953533701) - Husqvarna Swedish Riding Mower (2006-01) FRAME Parts Diagram

Swedish Riding Mower

FRAME Parts Diagram

  • Title
506 98 28-01

$

$

Not available

506 97 46-01

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506 97 50-01

$

$

Not available

734 11 77-71

$6.49

$

In Stock, only 2 left!

0

506 96 66-01

$4.99

$

Usually ships in 3-10 days

0

506 97 96-01

$

$

Not available

734 11 72-01

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

506 98 25-01

$

$

Not available

506 89 58-01

$10.99

$

Usually ships in 3-10 days

0

506 97 48-01

$51.99

$

Usually ships in 3-10 days

0

535 43 13-01

Husqvarna 535431301

BRACKET

Note: COMBI 103/112

$

$

Not available

506 59 74-01

$6.99

$

In Stock, only 1 left!

0

721 68 02-51

$7.49

$

Usually ships in 3-10 days

0

725 24 95-71

$1.99

$

In Stock, Qty 10

0

735 31 15-20

Husqvarna 735311520

RETAINING RING

$3.49

$

Usually ships in 3-10 days

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506 82 68-01

$

$

Not available

725 24 57-51

$5.99

$

In Stock, only 1 left!

0

734 11 64-41

$4.99

$

Usually ships in 3-10 days

0

725 25 36-71

Husqvarna 725253671

Hex Head Capscrew, M12 X 1.75 X 30 DIN933ZP

Note: COMBI 103/112

$1.99

$

In Stock, only 2 left!

0

721 86 17-01

$

$

Not available

506 83 77-01

$10.99

$

In Stock, only 2 left!

0

506 98 00-01

$

$

Not available

725 24 61-51

$5.99

$

In Stock, only 1 left!

0

732 25 22-01

$1.99

$

In Stock, only 2 left!

0

506 99 79-01

$

$

Not available

725 25 42-51

Husqvarna 725254251

Screw

Note: COMBI 103/112

$7.49

$

Usually ships in 3-10 days

0

722 78 39-02

$

$

Not available

506 59 74-01

Husqvarna 506597401

BOLT

Note: COMBI 103/112

$6.99

$

In Stock, only 1 left!

0

506 96 37-01

$

$

Not available

535 47 10-01

$

$

Not available

506 97 63-01

$

$

Not available

731 23 20-51

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

Note: COMBI 103/112

$4.99

$

In Stock, Qty 12

0

506 83 76-01

$31.99

$

In Stock, only 2 left!

0

506 97 68-01

$

$

Not available

732 25 22-01

Husqvarna 732252201

Nut

Note: COMBI 103/112

$1.99

$

In Stock, only 2 left!

0

732 21 20-51

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

506 53 27-01

$45.99

$

In Stock, only 1 left!

0

506 59 75-01

$

$

Not available
