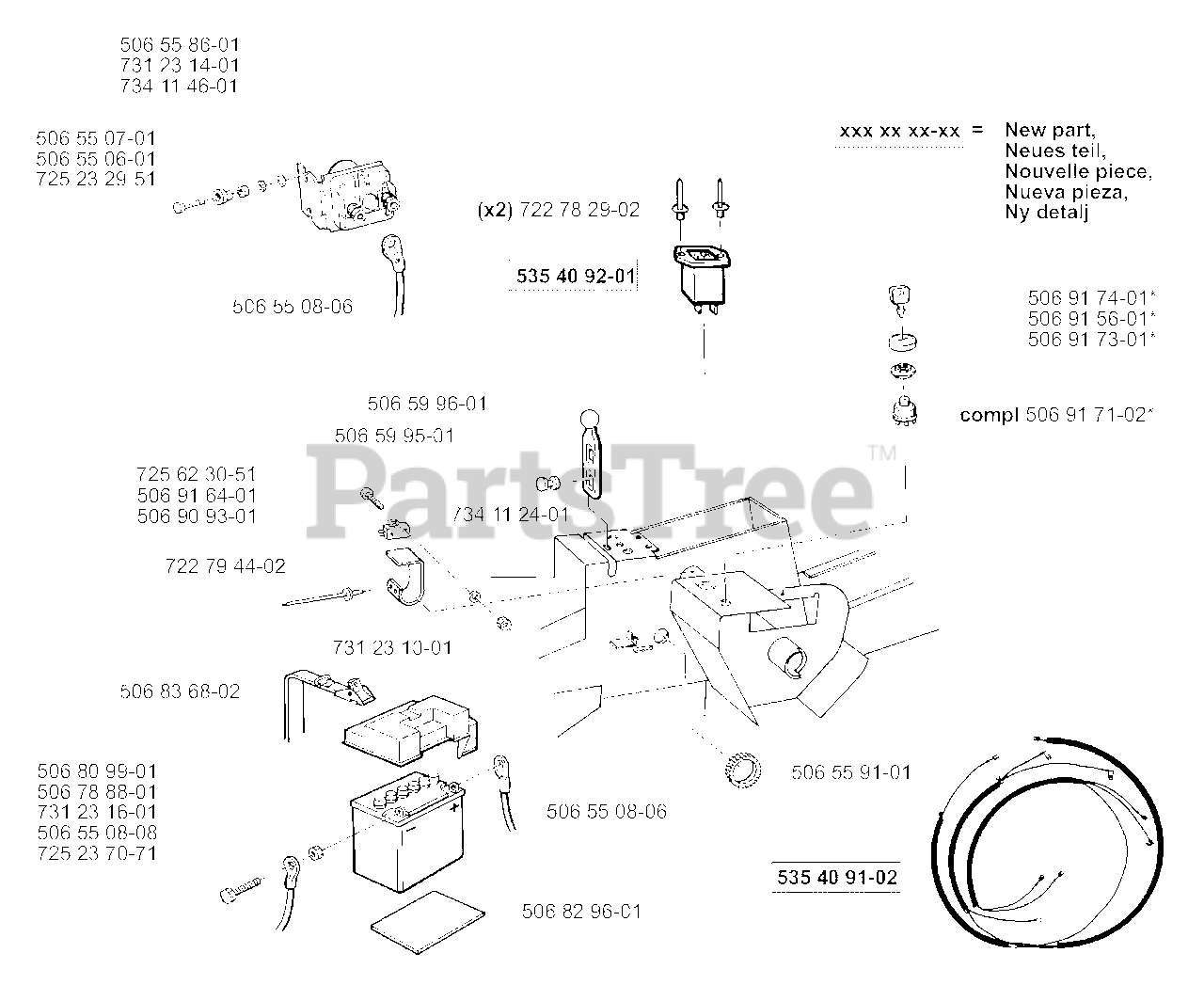

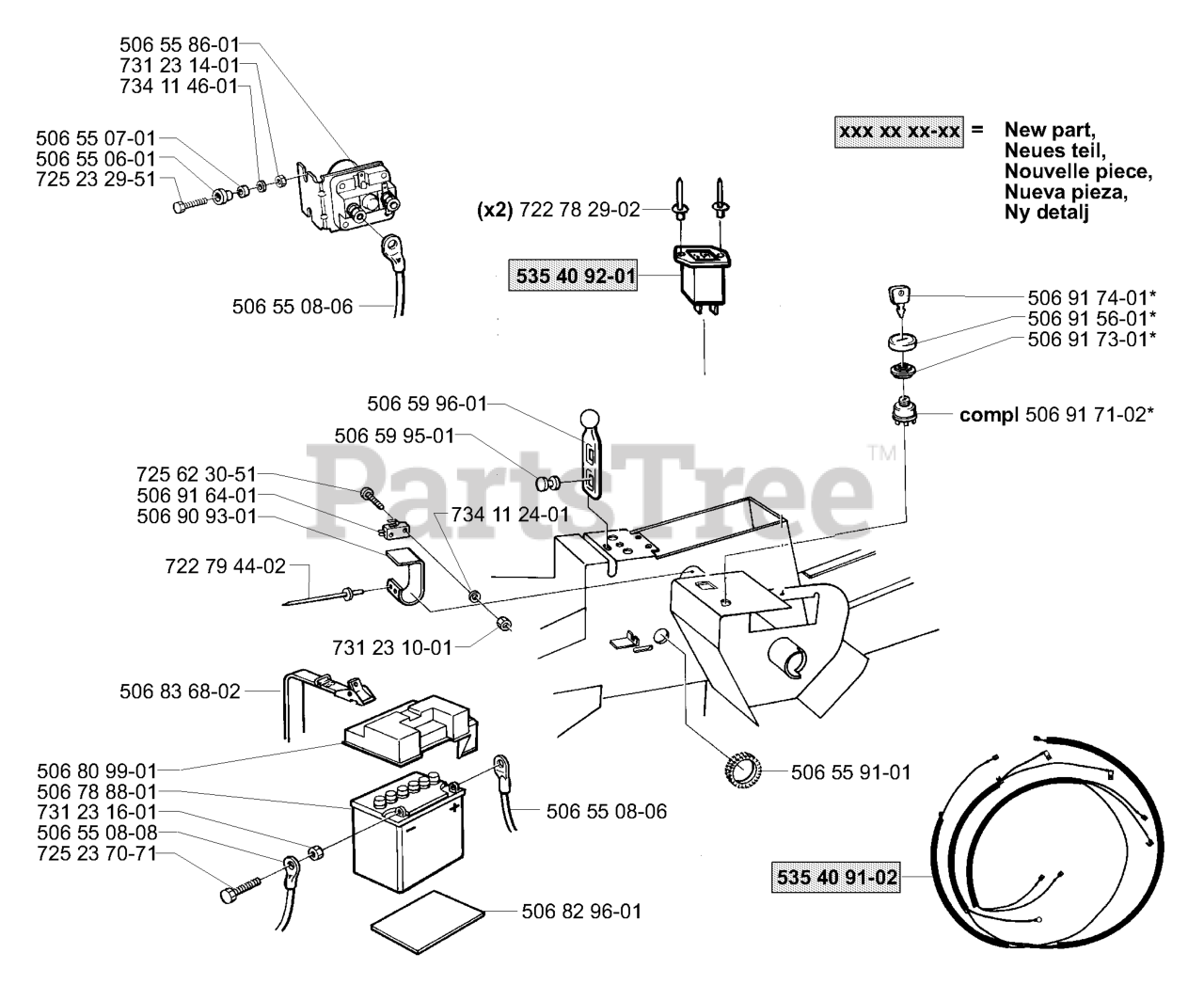

R 15 Pro - Husqvarna Swedish Riding Mower (2001-02) Electrical Parts Diagram

Swedish Riding Mower

Electrical Parts Diagram

  • Title
506558601

Husqvarna 506558601

STARTING SOLENOID

$

$

Not available

731231401

$2.49

$

In Stock, only 2 left!

0

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

506550701

$

$

Not available

506550601

$5.99

$

In Stock, only 1 left!

0

725232951

$

$

Not available

506550806

$

$

Not available

506599601

Husqvarna 506599601

SUPPORT STRAP

$

$

Not available

506599501

$

$

Not available

725623051

$

$

Not available

506916401

Husqvarna 506916401

SWITCH
(Superseded to 574316001)

$14.99

$

In Stock, only 1 left!

0

506909301

$

$

Not available

722794402

$0.99

$

Usually ships in 3-10 days

0

506836802

$11.99

$

Usually ships in 3-10 days

0

731231001

Husqvarna 731231001

NUT M6M M3

$3.99

$

Usually ships in 3-10 days

0

734112401

Husqvarna 734112401

WASHER BRB 3.2X7

$2.99

$

Usually ships in 3-10 days

0

506809901

$

$

Not available

506788801

Husqvarna 506788801

BATTERY - DRY
(Superseded to 531031071)

$

$

Not available

731231601

$6.49

$

In Stock, only 1 left!

0

506550808

$

$

Not available

725237071

$7.49

$

Usually ships in 3-10 days

0

506550806

$

$

Not available

506829601

$

$

Not available

535409102

Husqvarna 535409102

WIRE HARNESS

$

$

Not available

506559101

Husqvarna 506559101

PROTECTION RING

$

$

Not available

506917102

Husqvarna 506917102

IGNITION SWITCH
(Superseded to 506917103)

$

$

Not available

506917301

Husqvarna 506917301

Ignition Nut
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

506915601

Husqvarna 506915601

Switch Key Cover
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

506917401

Husqvarna 506917401

Ignition Key
(Superseded to 516844602)

$

$

Not available

722782902

$4.99

$

Usually ships in 3-10 days

0

535409201

Husqvarna 535409201

HOUR METER

$

$

Not available
