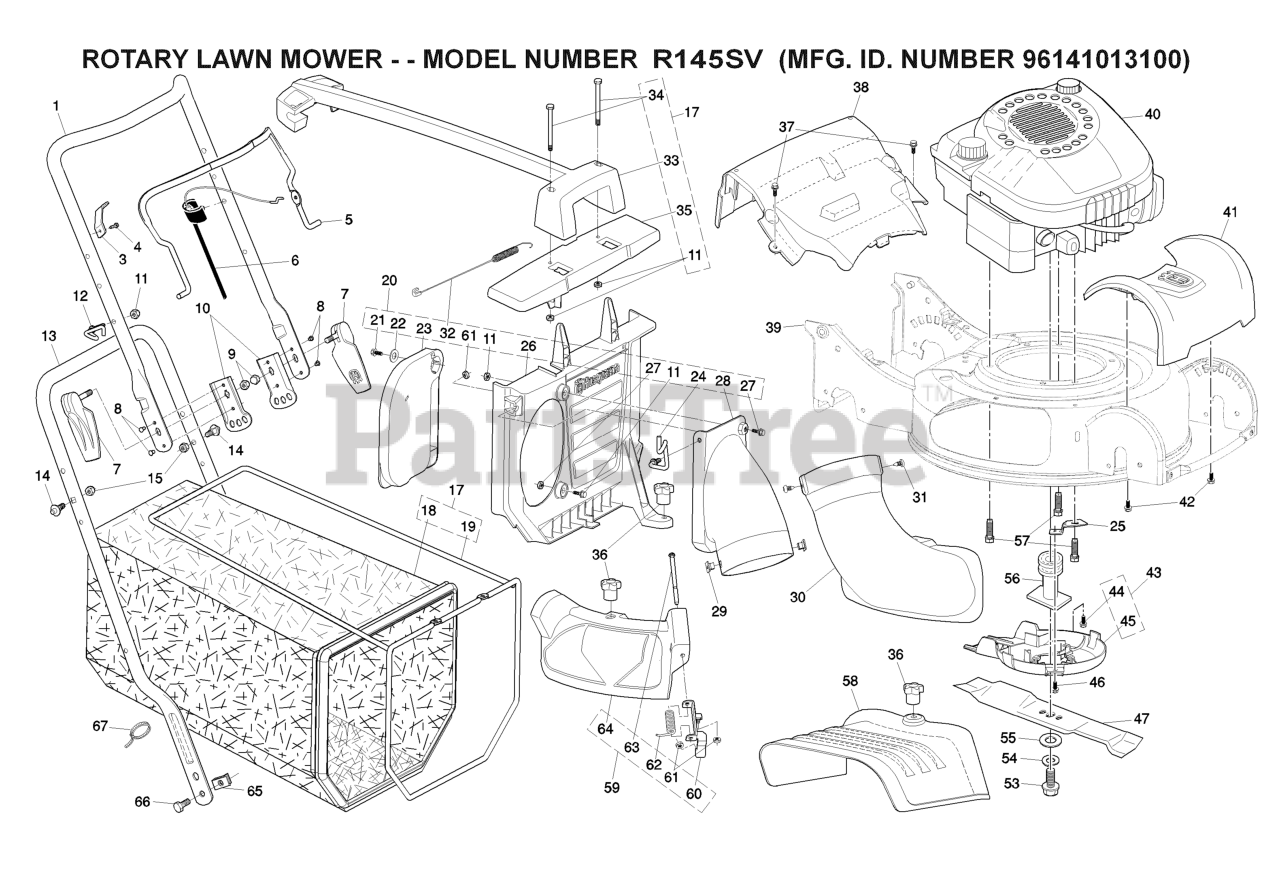

R 145 SV (961410131-00) - Husqvarna Walk-Behind Mower (2007-04) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

35

Husqvarna 532413512

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

31

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532413536

NEEDS DESCRIPTION

$

$

Currently unavailable

47

Husqvarna 532199243

BLADE.SWEPT.WING.45CM.H.TREAT
(Superseded to 583250401)

$66.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

37

Husqvarna 532199422

SCREW, HEX WASHER HEAD

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532199697

RIVET

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532413509

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 532413517

NEEDS DESCRIPTION

$

$

Currently unavailable

65

Husqvarna 532404008

NEEDS DESCRIPTION

$

$

Currently unavailable

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532413518

DOOR.MULCH.GREY

$21.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532199278

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 532400135

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

$

$

Not available

18

Husqvarna 532199273

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532413535

NEEDS DESCRIPTION

$

$

Currently unavailable

39

Husqvarna 532405814

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 532413534

BRACKET.ADJ.3POS.GREY

$10.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 532197740

CABLE.MZR.50.SNAP-IN
(Superseded to 532427497)

$14.99

$

In Stock, Qty 7

0

43

Husqvarna 532401216

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 532199727

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 532413514

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

57

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532400413

Locknut, Hex 1/4-20

$

$

Not available

1

Husqvarna 532199887

HANDLE.ASM.UP.W/ADJ.BKT
(Superseded to 583255301)

$61.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532199268

NEEDS DESCRIPTION

$

$

Currently unavailable

53

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 532413508

NEEDS DESCRIPTION

$

$

Currently unavailable

56

Husqvarna 532186766

ADAPTER.BLADE

$40.99

$

In Stock, only 1 left!

0

25

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532401402

NEEDS DESCRIPTION

$

$

Currently unavailable

66

Husqvarna 532850999

SCREW

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 532183518

BOLT, SHOULDER

$2.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532413515

NEEDS DESCRIPTION

$

$

Currently unavailable

62

Husqvarna 532183446

SPRING.MULCH.DOOR

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 871090448

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 532413511

NEEDS DESCRIPTION

$

$

Currently unavailable

38

Husqvarna 532413513

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 532413510

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

61

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 532400136

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 532408652

NEEDS DESCRIPTION

$

$

Currently unavailable

59

Husqvarna 532409314

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 532413507

ASM.QUICK.RELEASE
(Superseded to 584380101)

$

$

Not available

12

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5
