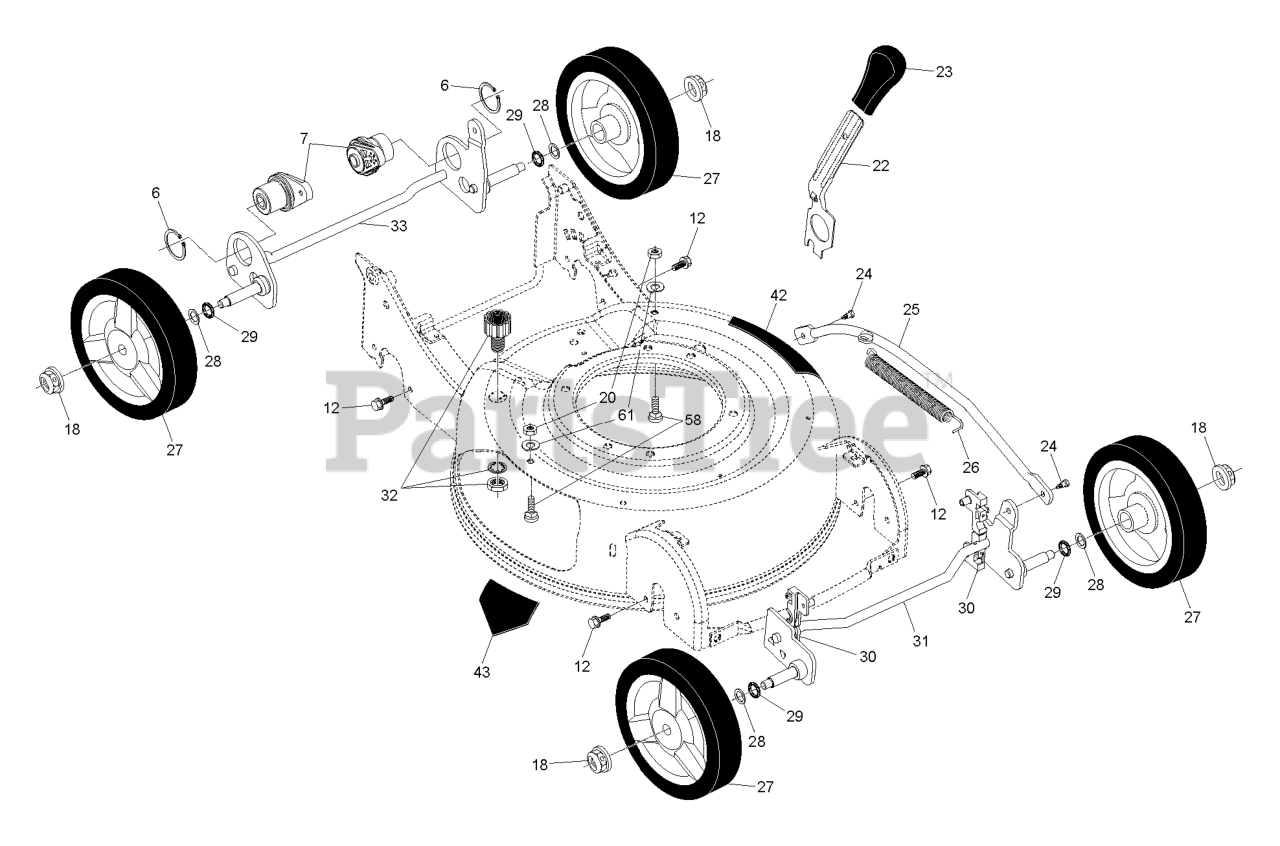

R 145 (961310021-03) - Husqvarna Walk-Behind Mower (2009-01) DRIVE 2 Parts Diagram

Walk-Behind Mower

DRIVE 2 Parts Diagram

  • Title

18

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532167653

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532413520

BUSHING.FRONT.TORQUE.S
(Superseded to 584465001)

$2.99

$

Usually ships in 3-10 days

0

58

Husqvarna 872110407

BOLT.CARRIAGE.1/4-20 X 7/8

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532414071

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 532199245

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 532407142

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

61

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

22

Husqvarna 532413519

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 532414072

AXLE.ASM.REAR.TORQUE.BZP

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532400094

NEEDS DESCRIPTION

$102.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532400100

NUT, HEX
(Superseded to 532438130)

$

$

Not available

24

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532199912

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

43

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0
