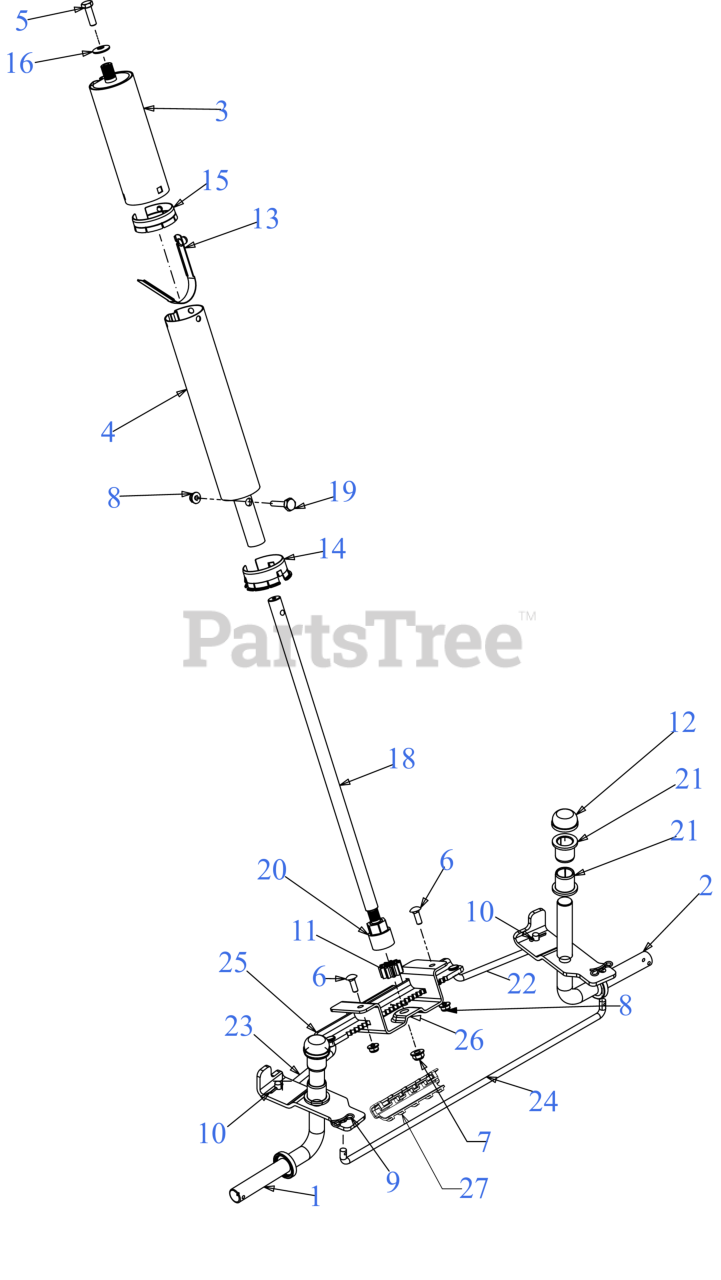

R 140 (CMXGRAM1130040) (13BC21JD093) - Craftsman Rear-Engine Riding Mower (2021) Steering Parts Diagram

Rear-Engine Riding Mower

Steering Parts Diagram

  • Title
1

MTD 683-04726

FRONT AXLE ASSEMBLY(RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-04726-0637

Front Axle Assembly, RH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

$29.99

$

Usually ships in 3-6 days

0

2

MTD 683-04727

FRONT AXLE ASSEMBLY(LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-04727-0637

Front Axle Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

$29.99

$

Usually ships in 3-6 days

0

3

MTD 683-04761

UPPER TUBE ASSEMBLY

$46.99

$

Usually ships in 3-6 days

0

4

MTD 683-04762

LOWER TUBE ASSEMBLY

$67.99

$

In Stock, only 1 left!

0

5

MTD 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.99

$

In Stock, Qty 5

0

6

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

7

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

9

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

10

MTD 914-0507

COTTER PIN-3/32 DIA x .75

$4.49

$

In Stock, Qty 17

0

11

MTD 717-1554

STEERING PINION GEAR

$10.99

$

In Stock, Qty 20+

0

12

$4.99

$

In Stock, Qty 20+

0

13

MTD 726-04127

SNAP BUTTON

$11.99

$

Usually ships in 3-6 days

0

14

MTD 731-08690

LOWER STEERING COLLAR

$3.99

$

In Stock, Qty 14

0

15

MTD 731-08691

UPPER STEERING COLLAR

$3.99

$

In Stock, Qty 7

0

16

MTD 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-04537A

STEERING SHAFT

$37.99

$

In Stock, Qty 20+

0

19

MTD 738-05000

SHOULDER SCREW .375 x .148

$3.99

$

In Stock, only 3 left!

0

20

MTD 741-04542A

FLANGE BEARING

$4.99

$

In Stock, Qty 20+

0

21

MTD 741-0660A

FLANGE BEARING .760 ID

$3.49

$

In Stock, Qty 10

0

22

MTD 747-05514

STEERING ROD (LH)

$14.99

$

In Stock, only 1 left!

0

23

MTD 747-05585

STEERING ROD (RH)

$14.99

$

In Stock, only 1 left!

0

24

MTD 747-06027

FRONT TIE ROD

$14.99

$

In Stock, only 2 left!

0

25

MTD 783-06988A

RACK STEERING PLATE
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0

26

MTD 783-09629

LOWER STEERING BRACKET
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0

27

MTD 731-13477A

RACK SUPPORT
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0
