R 13 R (953533001) - Husqvarna Swedish Riding Mower (2003-09) 97CM CUTTING DECK Parts Diagram

Swedish Riding Mower

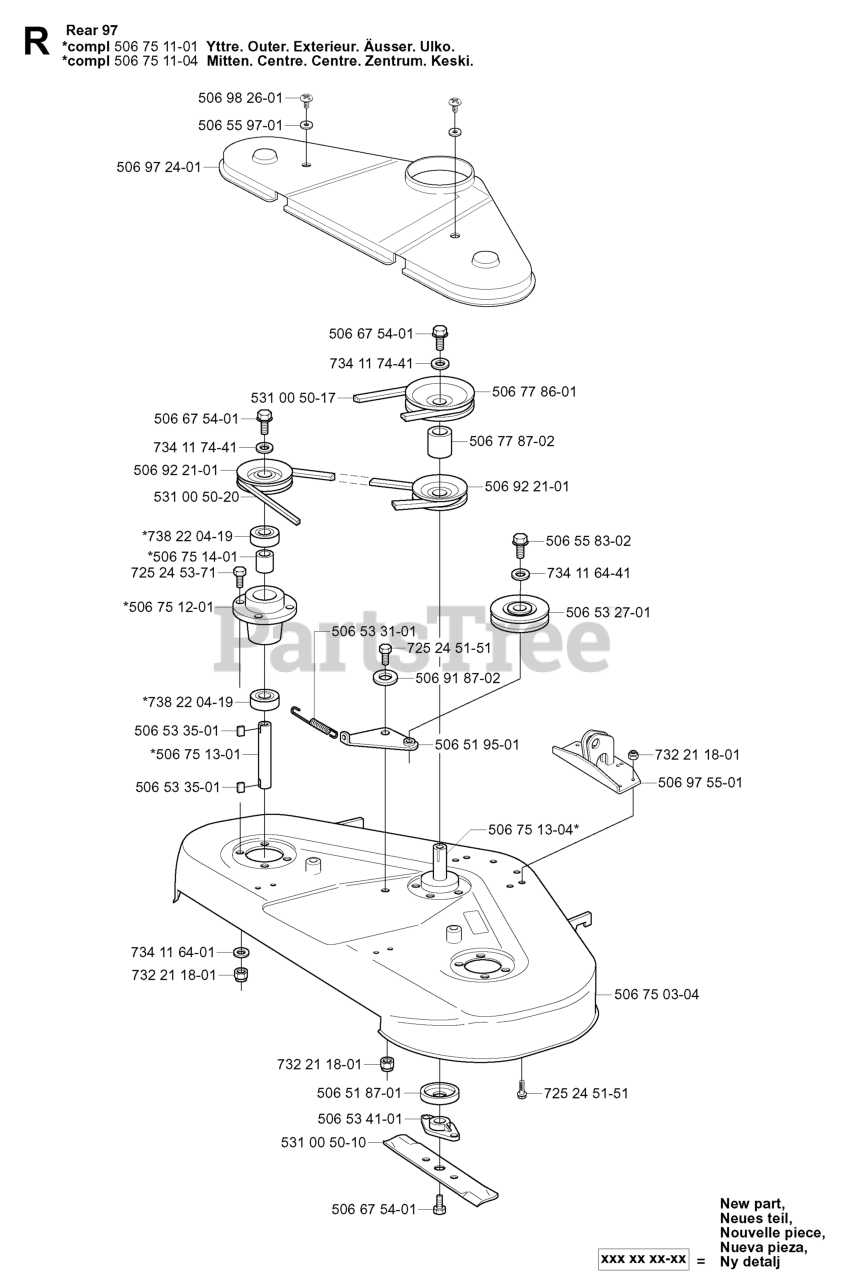

97CM CUTTING DECK Parts Diagram

  • Title
506 75 11-01

Husqvarna 506751101

CPL BLADEHOUSING MFG SKF, 48

Note: YTTRE.

$

$

Not available

506 77 87-02

$

$

Not available

506 51 87-01

Husqvarna 506518701

BEARING COVER

$

$

Not available

506 75 03-04

Husqvarna 506750304

Housing, Cpl

$

$

Not available

506 53 27-01

$45.99

$

In Stock, only 1 left!

0

531 00 50-20

Husqvarna 531005020

BELT
(Superseded to 589534001)

$

$

Not available

531 00 50-17

Husqvarna 531005017

MAIN DECK BELT RIDER 155
(Superseded to 589530601)

$66.99

$

In Stock, only 4 left!

0

506 53 31-01

$11.99

$

Usually ships in 3-10 days

0

506 91 87-02

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

506 98 26-01

$6.99

$

In Stock, Qty 6

0

738 22 04-19

Husqvarna 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

725 24 51-51

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

734 11 74-41

$4.99

$

In Stock, only 2 left!

0

506 92 21-01

$39.99

$

In Stock, only 1 left!

0

506 55 97-01

$5.99

$

In Stock, only 4 left!

0

506 75 12-01

Husqvarna 506751201

BEARING HOUSING
(Superseded to 535413401)

$

$

Not available

506 75 14-01

$

$

Not available

506 97 55-01

$

$

Not available

506 55 83-02

$4.99

$

In Stock, only 1 left!

0

506 53 35-01

$6.49

$

Usually ships in 3-10 days

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506 67 54-01

$5.99

$

In Stock, only 1 left!

0

506 51 95-01

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

506 97 24-01

$

$

Not available

506 53 41-01

Husqvarna 506534101

BLADE BOSS

$

$

Not available

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

531 00 50-10

Husqvarna 531005010

RP RIDER BLADE 14 PRO/16
(Superseded to 535420310)

$

$

Not available

734 11 64-41

$4.99

$

Usually ships in 3-10 days

0

506 75 13-01

$

$

Not available

725 24 53-71

$5.99

$

Usually ships in 3-10 days

0

506 75 13-04

$

$

Not available

506 75 11-04

Husqvarna 506751104

SPINDLE

Note: MITTEN.

$

$

Not available

506 77 86-01

$56.99

$

Usually ships in 3-10 days

0
