R 13 - Husqvarna Swedish Riding Mower (2002-02) CHASSIS / FRAME Parts Diagram

Swedish Riding Mower

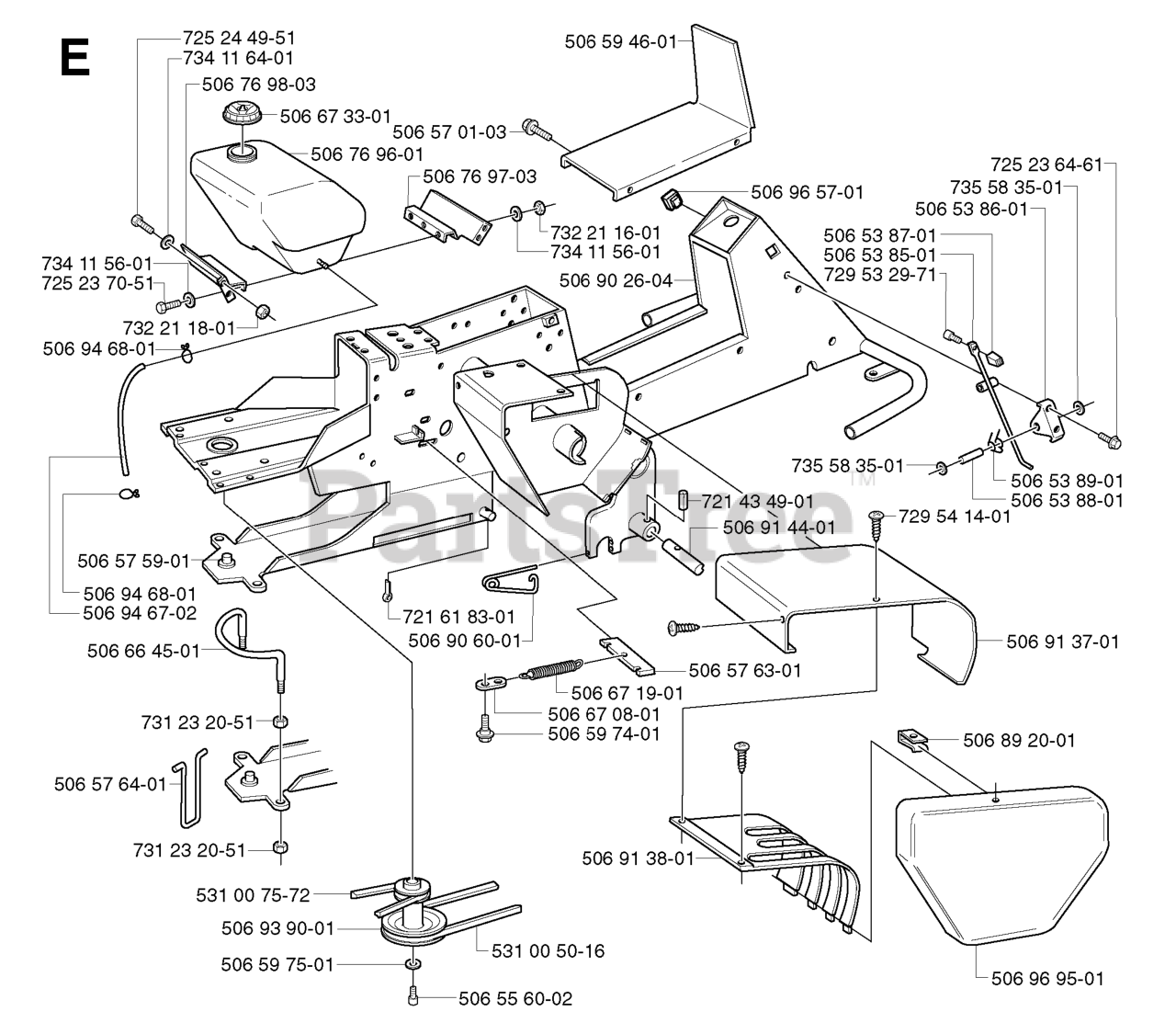

CHASSIS / FRAME Parts Diagram

  • Title
506 94 67-02

$

$

Not available

506 93 90-01

Husqvarna 506939001

RP PULLEY
(Superseded to 535482401)

$79.99

$

Usually ships in 3-10 days

0

531 00 50-16

Husqvarna 531005016

BELT
(Superseded to 589531601)

$

$

Not available

506 67 33-01

$31.99

$

Usually ships in 3-10 days

0

506 90 60-01

$

$

Not available

721 43 49-01

$

$

Not available

725 23 64-61

$3.49

$

Usually ships in 3-10 days

0

506 59 74-01

$6.99

$

In Stock, only 1 left!

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

735 58 35-01

$14.99

$

Usually ships in 3-10 days

0

732 21 16-01

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

506 66 45-01

Husqvarna 506664501

BELT GUIDE

$42.99

$

Usually ships in 3-10 days

0

506 59 75-01

$

$

Not available

506 76 98-03

$

$

Not available

506 89 20-01

$

$

Not available

506 57 59-01

Husqvarna 506575901

SHAFT PIVOT

$

$

Not available

506 91 44-01

$

$

Not available

506 96 57-01

$

$

Not available

725 23 70-51

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

725 24 49-51

Husqvarna 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

506 53 87-01

$

$

Not available

721 61 83-01

$

$

Not available

731 23 20-51

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

531 00 75-72

Husqvarna 531007572

BELT
(Superseded to 589531201)

$34.99

$

In Stock, only 1 left!

0

506 91 37-01

$

$

Not available

506 94 68-01

$

$

Not available

506 55 60-02

$6.99

$

Usually ships in 3-10 days

0

729 54 14-01

$

$

Not available

734 11 56-01

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

506 91 38-01

$

$

Not available

506 57 63-01

Husqvarna 506576301

SPRING BRACKET

$

$

Not available

506 53 85-01

$

$

Not available

506 53 88-01

$

$

Not available

506 53 89-01

$

$

Not available

506 96 95-01

$

$

Not available

506 90 26-04

$

$

Not available

506 59 46-01

Husqvarna 506594601

Center Panel

$

$

Not available

506 57 64-01

$

$

Not available

506 67 08-01

$7.99

$

Usually ships in 3-10 days

0

729 53 29-71

$

$

Not available

506 76 96-01

$

$

Not available

506 53 86-01

$

$

Not available

506 67 19-01

$40.99

$

In Stock, only 4 left!

0

506 76 97-03

$

$

Not available

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

506 57 01-03

$4.99

$

Usually ships in 3-10 days

0
