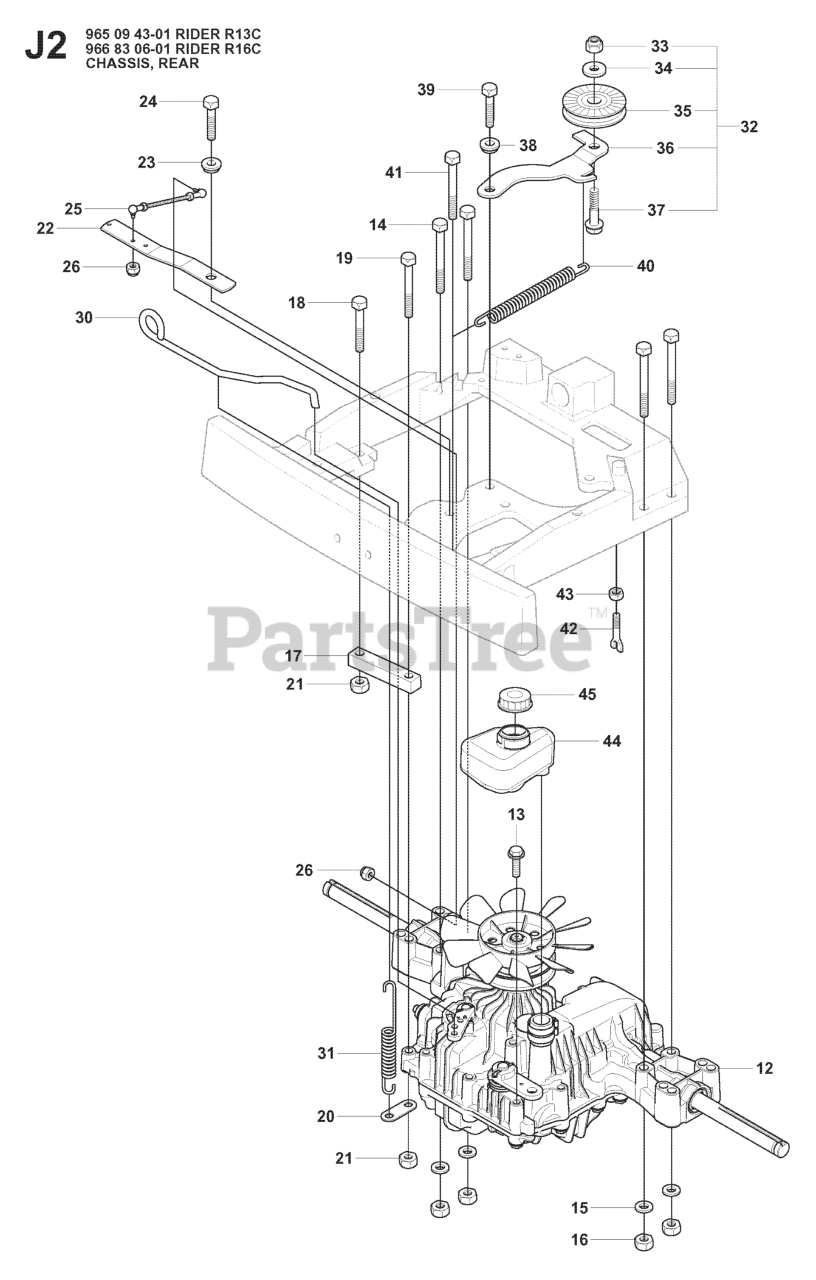

R 13 C (965094301) - Husqvarna Swedish Riding Mower (2008-04) TRANSMISSION Parts Diagram

Swedish Riding Mower

TRANSMISSION Parts Diagram

  • Title

16

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

17

Husqvarna 506987201

BRACKET

$

$

Not available

25

Husqvarna 506987501

ROD

$37.99

$

Usually ships in 3-10 days

0

42

Husqvarna 506988801

SCREW

$

$

Not available

26

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

37

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

39

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

41

Husqvarna 725246451

SCREW

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

24

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

14

Husqvarna 725246751

Hex Bolt

$1.49

$

Usually ships in 3-10 days

0

35

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

43

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

15

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

40

Husqvarna 506988601

SPRING

$

$

Not available

22

Husqvarna 506987403

ARM

$

$

Not available

32

Husqvarna 506988401

TENSIONER

$62.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506599301

CONNECTOR

$

$

Not available

23

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

38

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

34

Husqvarna 506946901

PULLEY

$39.99

$

In Stock, only 1 left!

0

30

Husqvarna 506988201

Rod

$

$

Not available

44

Husqvarna 506989001

TANK

$28.99

$

Usually ships in 3-10 days

0

36

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506988501

TENSIONER
(Superseded to 588740401)

$17.99

$

Usually ships in 3-10 days

0

45

Husqvarna 506988001

TANK CAP
(Superseded to 590324701)

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 506986301

HYDROSTAT 7A646024070

$1253.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 725246251

SCREW

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506834301

SPRING

$4.99

$

Usually ships in 3-10 days

0
