R 125R38 A - Electrolux/AYP Lawn Tractor (1997) TRANSAXLE Parts Diagram

Lawn Tractor

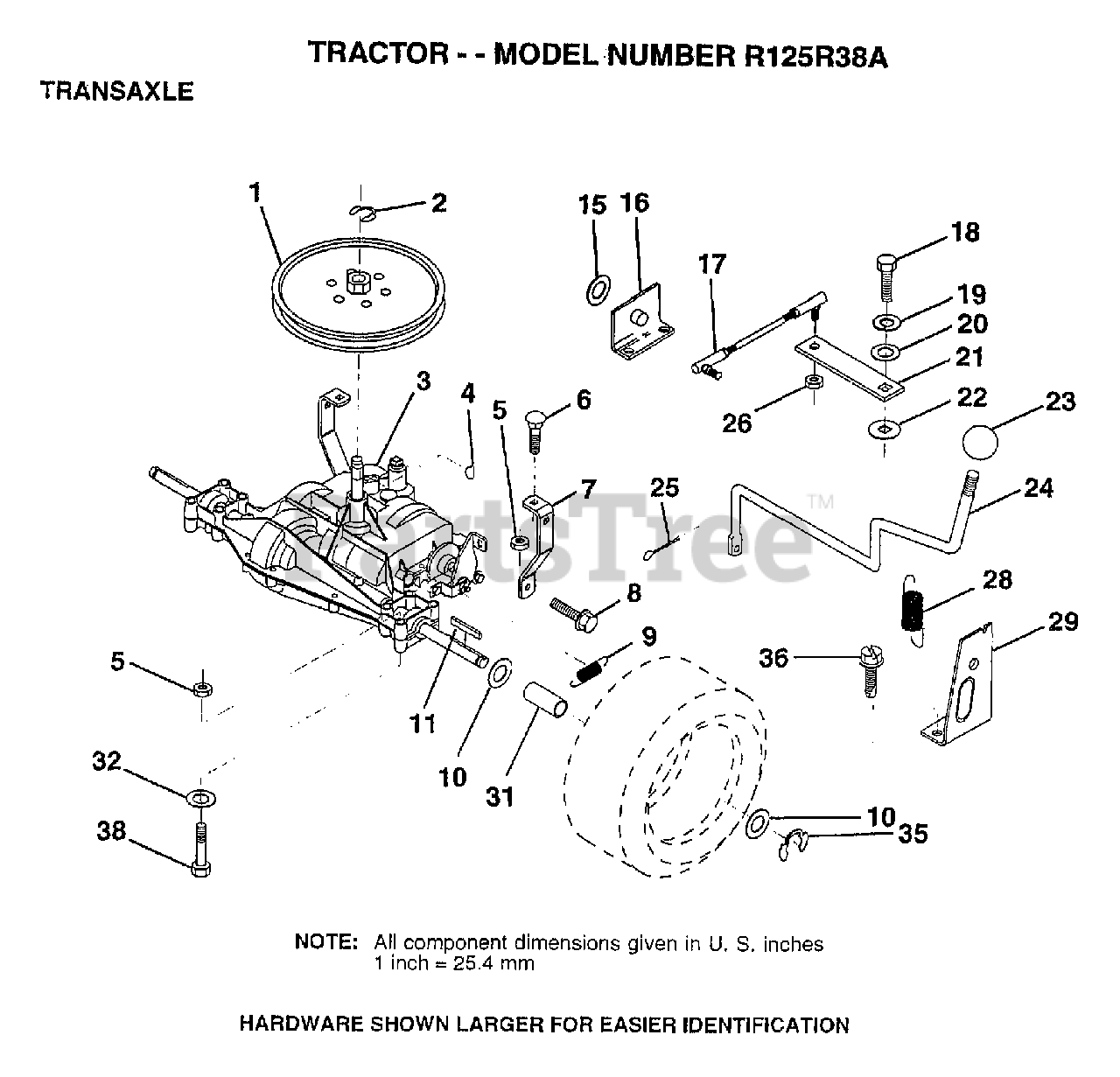

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 123385X

PULLEY
(Superseded to 532123385)

$45.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

3

Electrolux/AYP 127051X

TRANSAXLE PEERLESS

$

$

Not available

4

Murray 2228M

SUB= 2228M1

$

$

Not available

5

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 123378X

"STRAP,TORQUE"
(Superseded to 532123378)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 146682

SPRING.BRAKE.RETU
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

$2.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 124600

SUPPORT HANDLE SHIFT LH

$

$

Not available

17

Electrolux/AYP 126293X

LINK SHIFT
(Superseded to 583671201)

$28.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 74550412

BOLT.1/4-28.W/PAT
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

21

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 128215

"ROD,SHIFT"
(Superseded to 532128215)

$

$

Not available

25

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 128085

"SPRING,EXT"
(Superseded to 532128085)

$

$

Not available

29

Electrolux/AYP 128084

"SUPT,HDLE RH"
(Superseded to 532128084)

$

$

Not available

31

Electrolux/AYP 137057

SPACER AXLE
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

32

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

35

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 74490544

BOLT.HX.FLG.5/16
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0
