R 1200 - Husqvarna Swedish Riding Mower (1996-08) Pedal Assembly Parts Diagram

Swedish Riding Mower

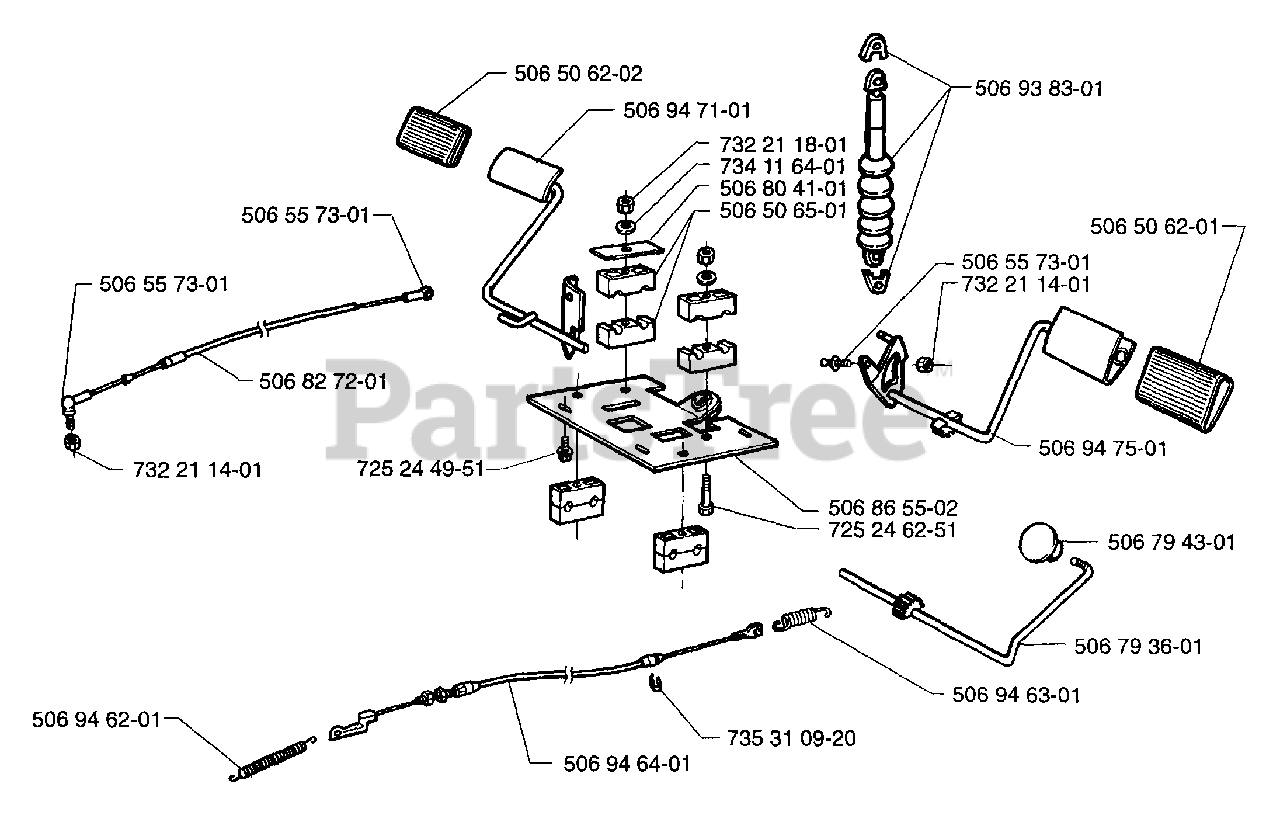

Pedal Assembly Parts Diagram

  • Title
506557301

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

506557301

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

506827201

Husqvarna 506827201

WIRE
(Superseded to 535404901)

$

$

Not available

732211401

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

725244951

Husqvarna 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

506804101

$6.99

$

Usually ships in 3-10 days

0

506506501

Husqvarna 506506501

PEDAL SHAFT CLAMP

$7.99

$

Usually ships in 3-10 days

0

506557301

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

732211401

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

506865502

$

$

Not available

725246251

$5.99

$

Usually ships in 3-10 days

0

506506201

Husqvarna 506506201

PEDAL RUBBER
(Superseded to 586966401)

$17.99

$

In Stock, only 2 left!

0

506947501

$

$

Not available

506794301

Husqvarna 506794301

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

506793601

$

$

Not available

506946301

$9.49

$

In Stock, only 1 left!

0

735310920

$7.49

$

In Stock, Qty 7

0

506946401

Husqvarna 506946401

BRAKE CABLE

$

$

Not available

506946201

$

$

Not available

506506202

Husqvarna 506506202

PEDAL RUBBER,SF
(Superseded to 586966402)

$17.99

$

In Stock, only 3 left!

0

506947101

$

$

Not available

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

506938301

Husqvarna 506938301

SHOCK ABSORBER

$

$

Not available
