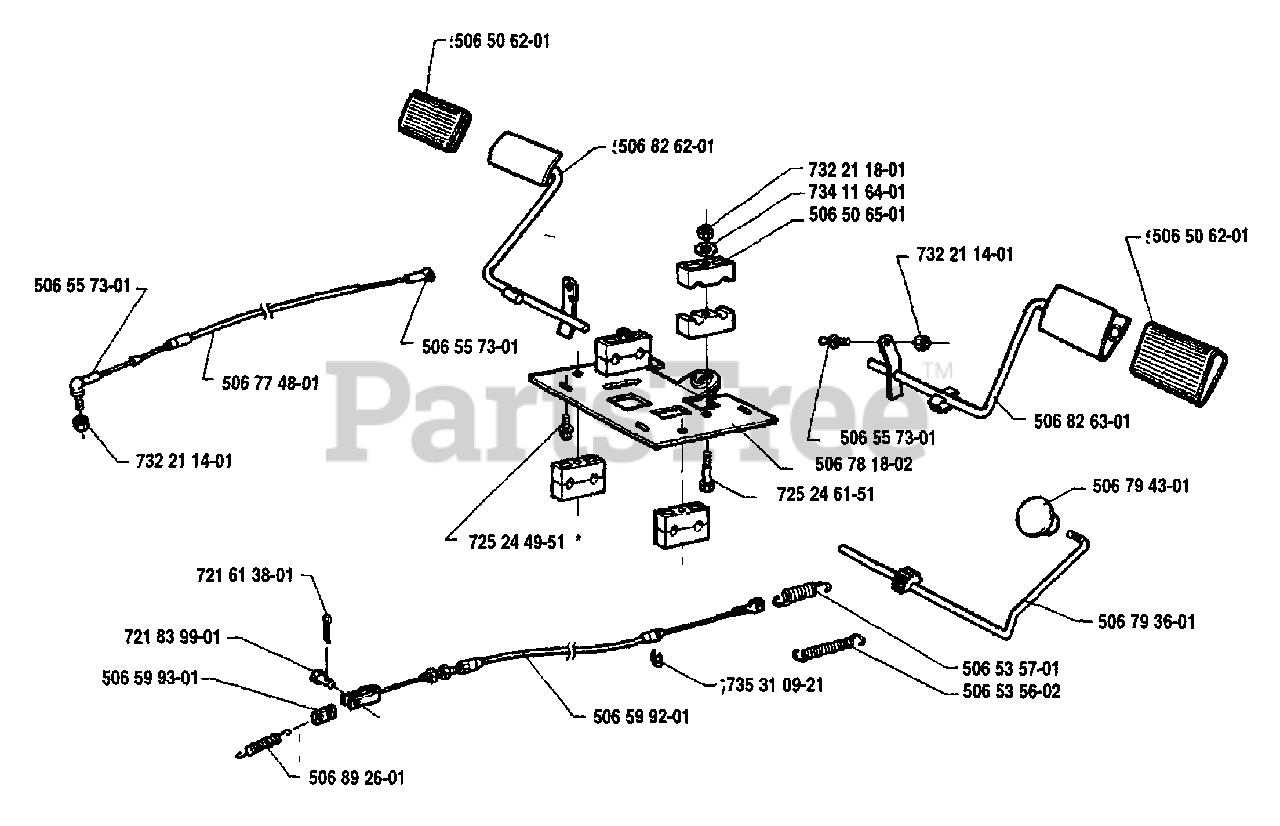

R 1200-14 - Husqvarna Swedish Riding Mower (1991-03) Pedal Assembly Parts Diagram

Swedish Riding Mower

Pedal Assembly Parts Diagram

  • Title
506506201

Husqvarna 506506201

PEDAL RUBBER
(Superseded to 586966401)

$17.99

$

In Stock, only 2 left!

0

506557301

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

506774801

Husqvarna 506774801

CABLE
(Superseded to 535404901)

$

$

Not available

506557301

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

732211401

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

721613801

$

$

Not available

721839901

Husqvarna 721839901

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

506599301

$

$

Not available

506892601

Husqvarna 506892601

SPRING
(Superseded to 506535702)

$

$

Not available

725244951

Husqvarna 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

506557301

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

506781802

Husqvarna 506781802

PEDAL PLATE

$

$

Not available

725246151

$5.99

$

In Stock, only 1 left!

0

735310921

Husqvarna 735310921

FASTENER
(Superseded to 735310920)

$7.49

$

In Stock, Qty 7

0

506599201

Husqvarna 506599201

BRAKE WIRE CPL
(Superseded to 506952601)

$

$

Not available

506535602

$

$

Not available

506535701

Husqvarna 506535701

SPRING
(Superseded to 506919101)

$5.76

$

Usually ships in 3-10 days

0

506793601

$

$

Not available

506794301

Husqvarna 506794301

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

506826301

$

$

Not available

506506201

Husqvarna 506506201

PEDAL RUBBER
(Superseded to 586966401)

$17.99

$

In Stock, only 2 left!

0

732211401

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

506506501

Husqvarna 506506501

PEDAL SHAFT CLAMP

$7.99

$

Usually ships in 3-10 days

0

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506826201

$

$

Not available
