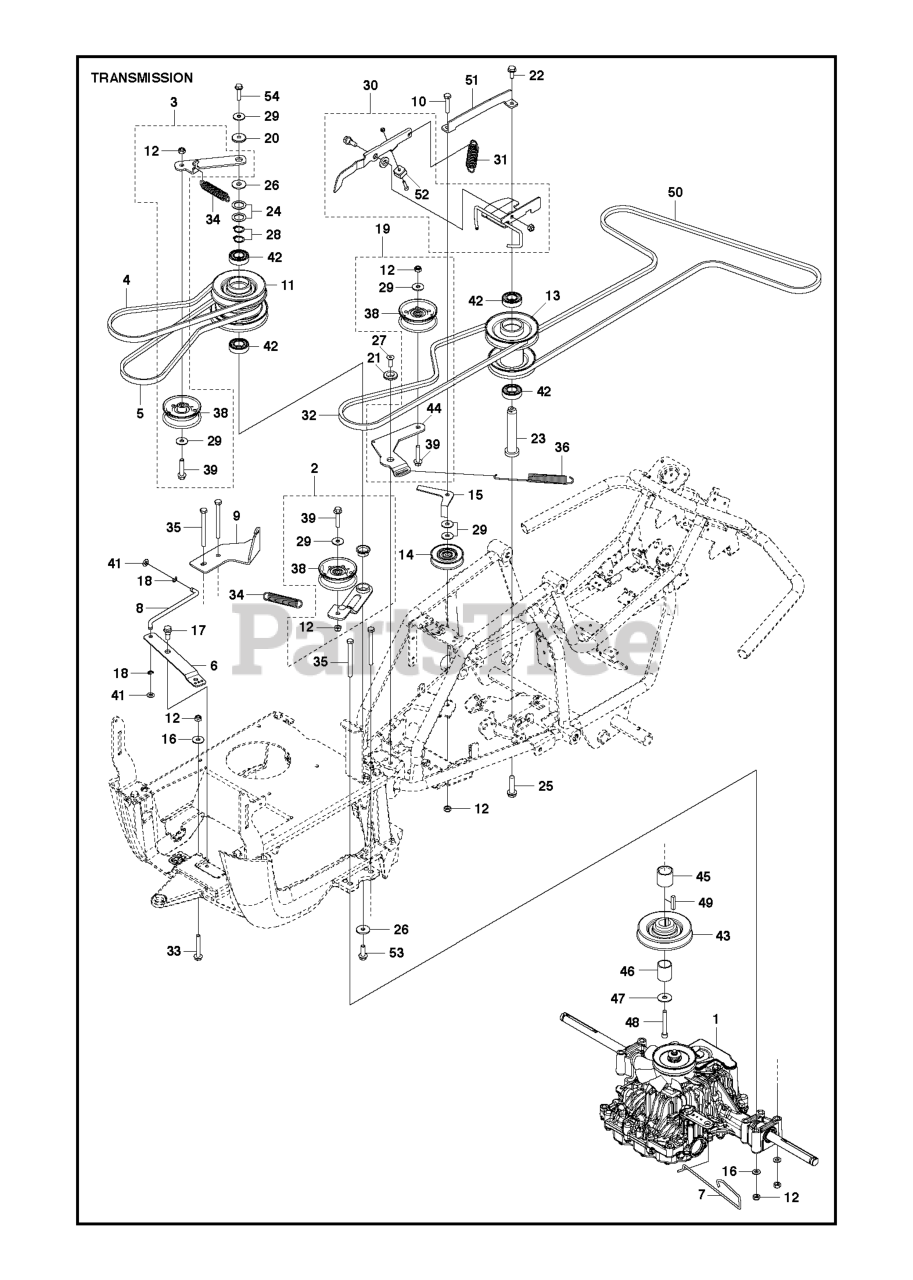

R 120 S - Husqvarna Swedish Riding Mower TRANSMISSION Parts Diagram

Swedish Riding Mower

TRANSMISSION Parts Diagram

  • Title

4

Husqvarna 589563101

BELT

$26.99

$

In Stock, only 2 left!

0

32

Husqvarna 581759901

BELT INTERMEDIATE 42 SD

$48.99

$

Usually ships in 3-10 days

0

50

Husqvarna 580926501

BELT DRIVE 42 SD
(Superseded to 584299801)

$62.99

$

In Stock, only 1 left!

0

21

Husqvarna 581765201

WASHER

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 575567202

SPRING

$7.99

$

In Stock, only 3 left!

0

27

Husqvarna 725645301

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580277801

LINK ARM

$

$

Not available

49

Husqvarna 506555902

WEDGE

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, only 3 left!

0

43

Husqvarna 582164001

PULLEY

$

$

Not available

34

Husqvarna 574506101

SPRING

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 506556002

SCREW

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 506509202

SPACING SLEEVE

$

$

Not available

46

Husqvarna 574412002

TUBE

$

$

Not available

1

Husqvarna 580378401

TRANSMISSION
(Superseded to 585235201)

$1367.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

15

Husqvarna 577418501

BRACKET

$

$

Not available

22

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 725245751

SCREW

$5.99

$

In Stock, only 1 left!

0

41

Husqvarna 735585201

WASHER

$

$

Not available

23

Husqvarna 574259801

SHAFT

$22.99

$

In Stock, only 1 left!

0

33

Husqvarna 506570107

SCREW EHHFM

$

$

Not available

18

Husqvarna 735311020

C-WASHER

$3.99

$

In Stock, Qty 9

0

29

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580279001

BELT TENSIONER ASSY

$43.99

$

Usually ships in 3-10 days

0

7

Husqvarna 580374901

ARM

$10.99

$

In Stock, only 1 left!

0

51

Husqvarna 581746601

BRACKET

$

$

Not available

44

Husqvarna 522602901

BELT TENSIONER

$

$

Not available

24

Husqvarna 506504805

WASHER

$4.99

$

In Stock, Qty 5

0

14

Husqvarna 506946901

PULLEY

$39.99

$

In Stock, only 1 left!

0

19

Husqvarna 522603301

BELT TENSIONER

$

$

Not available

5

Husqvarna 580280401

BELT

$26.99

$

Usually ships in 3-10 days

0

28

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

54

Husqvarna 506570106

SCREW EHHFM

$5.99

$

Usually ships in 3-10 days

0

47

Husqvarna 506597501

WASHER

$

$

Not available

3

Husqvarna 580278701

BELT TENSIONER ASSY

$39.99

$

Usually ships in 3-10 days

0

53

Husqvarna 577216501

SCREW

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 506833601

BRAKE PAD

$28.99

$

Usually ships in 3-10 days

0

31

Husqvarna 575928901

SPRING

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580291101

ROD

$

$

Not available

13

Husqvarna 581740201

PULLEY

$

$

Not available

26

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 574874101

WASHER
(Superseded to 584288601)

$

$

Not available

39

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

35

Husqvarna 725246951

Screw

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

30

Husqvarna 581739401

BRAKE ASSY

$39.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581738501

PULLEY

$85.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580291201

BRACKET

$

$

Not available
