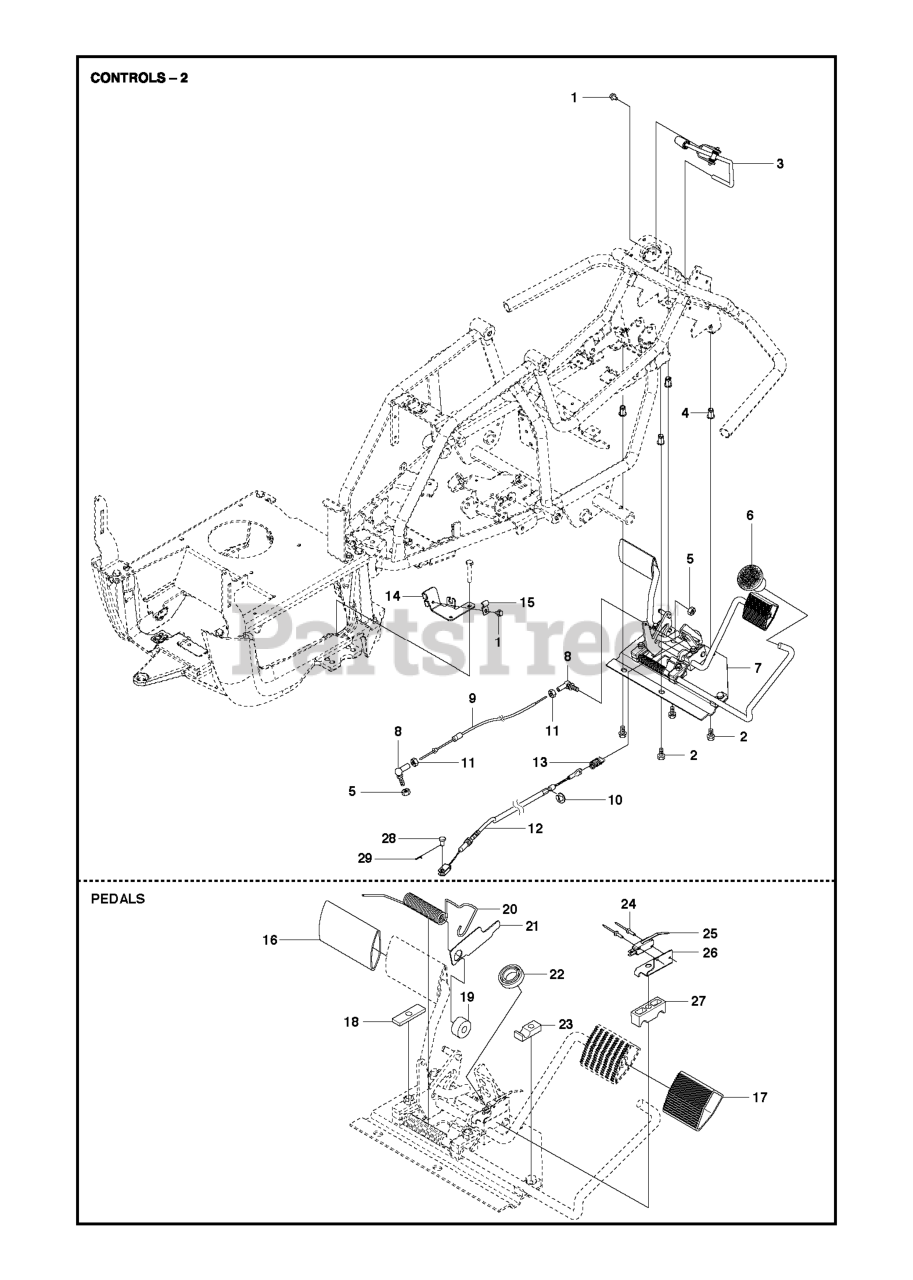

R 120 C - Husqvarna Swedish Riding Mower CONTROLS Parts Diagram

Swedish Riding Mower

CONTROLS Parts Diagram

  • Title
20

Husqvarna 535480701

SPRING
(Superseded to 535459501)

$9.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

6

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 578360602

BRAKE WIRE

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 523346001

LOCKING LEVER

$

$

Not available

10

$7.49

$

In Stock, Qty 8

0

19

Husqvarna 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

23

Husqvarna 535480901

SUPPORT
(Superseded to 506954101)

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574411105

CONTROL CABLE

$74.99

$

Usually ships in 3-10 days

0

26

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

16

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$17.99

$

In Stock, only 3 left!

0

14

Husqvarna 522823101

WIRE HOLDER

$

$

Not available

7

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$159.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

27

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$7.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 721839901

Clevis Pin

$4.99

$

Usually ships in 3-10 days

0

$7.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 535481001

PLATE
(Superseded to 506804101)

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535478801

PEDAL RUBBER
(Superseded to 586966401)

$17.99

$

In Stock, only 2 left!

0

22

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

$2.49

$

In Stock, only 3 left!

0

25

Husqvarna 574316101

MICRO SWITCH

$13.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0
