R 115 C - Husqvarna Swedish Riding Mower (Original) TRANSMISSION 2 Parts Diagram

Swedish Riding Mower

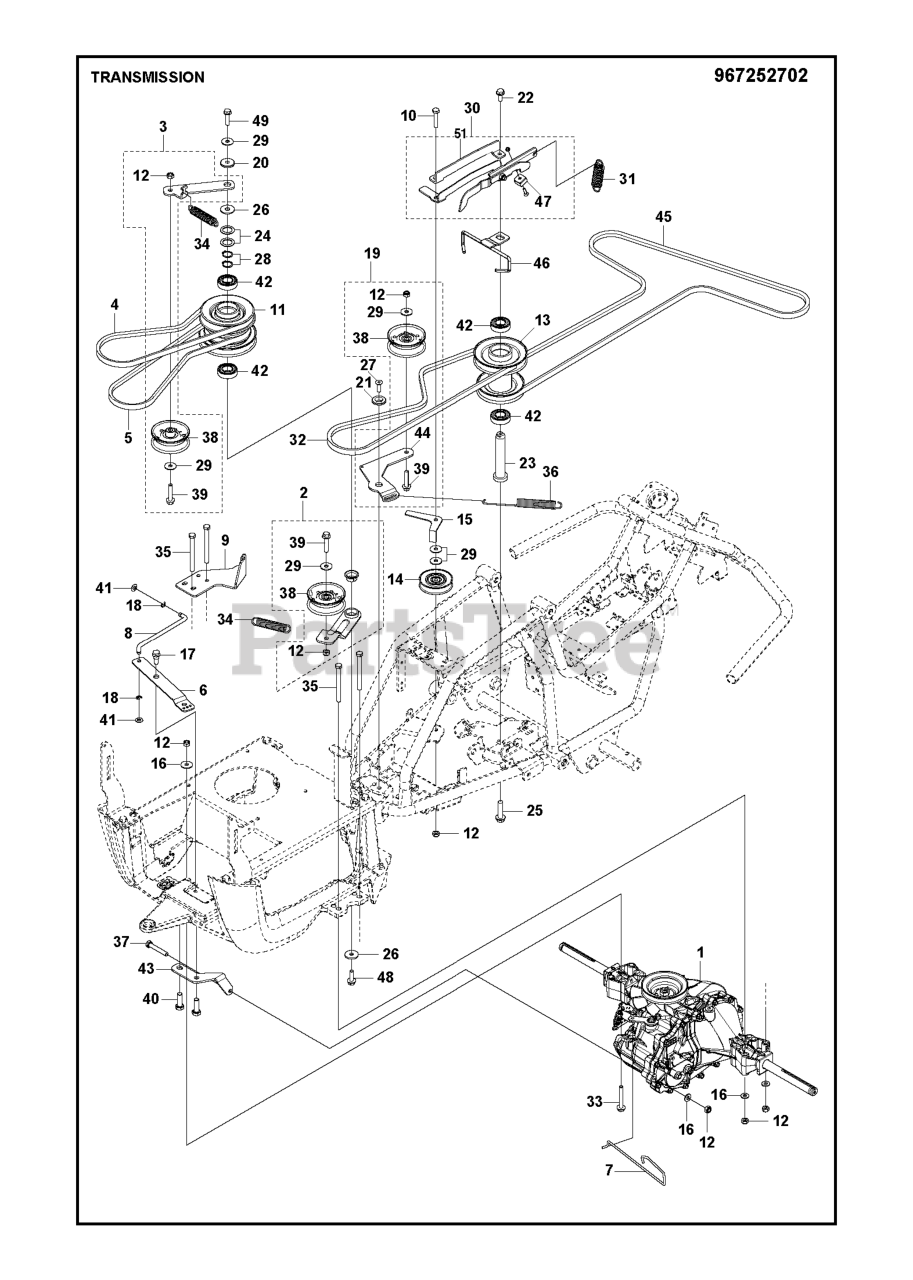

TRANSMISSION 2 Parts Diagram

  • Title

22

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 735311020

C-WASHER

$3.99

$

In Stock, Qty 9

0

4

Husqvarna 589563101

BELT

$26.99

$

In Stock, only 2 left!

0

33

Husqvarna 506570107

SCREW EHHFM

$

$

Not available

14

Husqvarna 506946901

PULLEY

$39.99

$

In Stock, only 1 left!

0

2

Husqvarna 580279001

BELT TENSIONER ASSY

$43.99

$

Usually ships in 3-10 days

0

49

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$6.99

$

In Stock, only 1 left!

0

13

Husqvarna 581740201

PULLEY

$

$

Not available

27

Husqvarna 725645301

SCREW

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

7

Husqvarna 580374901

ARM

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 581738501

PULLEY

$85.99

$

Usually ships in 3-10 days

0

20

Husqvarna 584288604

Washers

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

15

Husqvarna 577418501

BRACKET

$

$

Not available

6

Husqvarna 580277801

LINK ARM

$

$

Not available

44

Husqvarna 522602901

BELT TENSIONER

$

$

Not available

41

Husqvarna 735585201

WASHER

$

$

Not available

17

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 589561702

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 597598301

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 506504805

WASHER

$4.99

$

In Stock, Qty 5

0

43

Husqvarna 597984301

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 589533101

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 725246951

Screw

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 5

0

12

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

32

Husqvarna 581759901

BELT INTERMEDIATE 42 SD

$48.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574259801

SHAFT

$22.99

$

In Stock, only 1 left!

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

47

Husqvarna 506833601

BRAKE PAD

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580278701

BELT TENSIONER ASSY

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580291101

ROD

$

$

Not available

9

Husqvarna 580291202

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 575567202

SPRING

$7.99

$

In Stock, only 3 left!

0

28

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 574506101

SPRING

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581765201

WASHER

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

19

Husqvarna 522603301

BELT TENSIONER

$

$

Not available

26

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

46

Husqvarna 585295702

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 725249571

SCREW

$1.99

$

In Stock, Qty 10

0

30

Husqvarna 587977901

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 575928901

SPRING

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 577216501

SCREW

$4.99

$

Usually ships in 3-10 days

0
