R 115 C (967252701) - Husqvarna Swedish Riding Mower (2014) FRAME Parts Diagram

Swedish Riding Mower

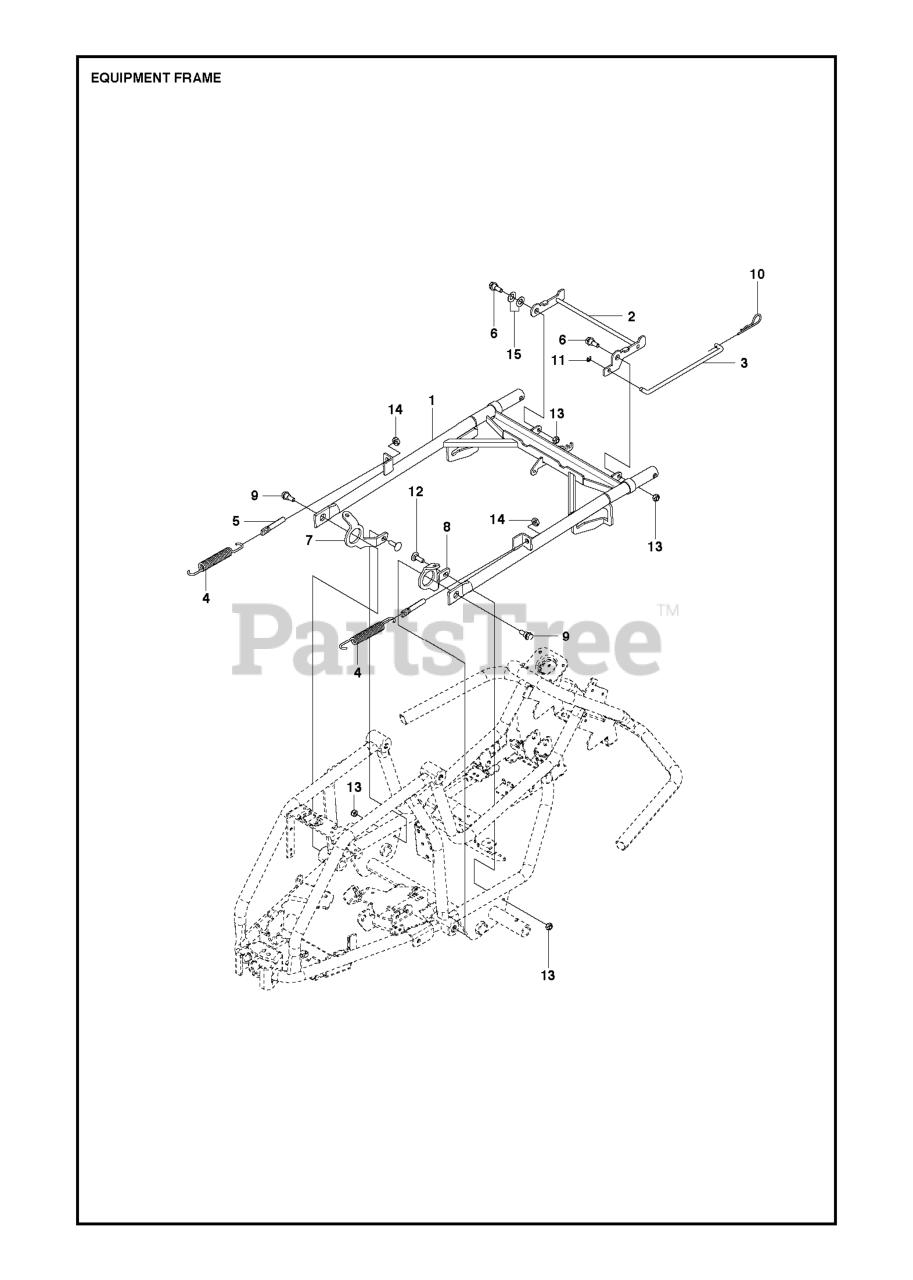

FRAME Parts Diagram

  • Title

11

Husqvarna 735311020

C-WASHER

$3.99

$

In Stock, Qty 9

0

5

Husqvarna 580480601

SCREW

$

$

Not available

10

Husqvarna 721680251

R-CLIP

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 580472101

BRACKET

$

$

Not available

1

Husqvarna 580379401

EQUIPMENT FRAME ASSY

$96.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

14

Husqvarna 731232001

Nut

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 580902401

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 506895801

BOLT

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580472102

BRACKET

$

$

Not available

13

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 580472301

SPRING

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580902901

ROD

$

$

Not available

15

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0
