R 111 B (965996801) - Husqvarna Swedish Riding Mower (2011-02) CHASSIS & ENCLOSURES 2 Parts Diagram

Swedish Riding Mower

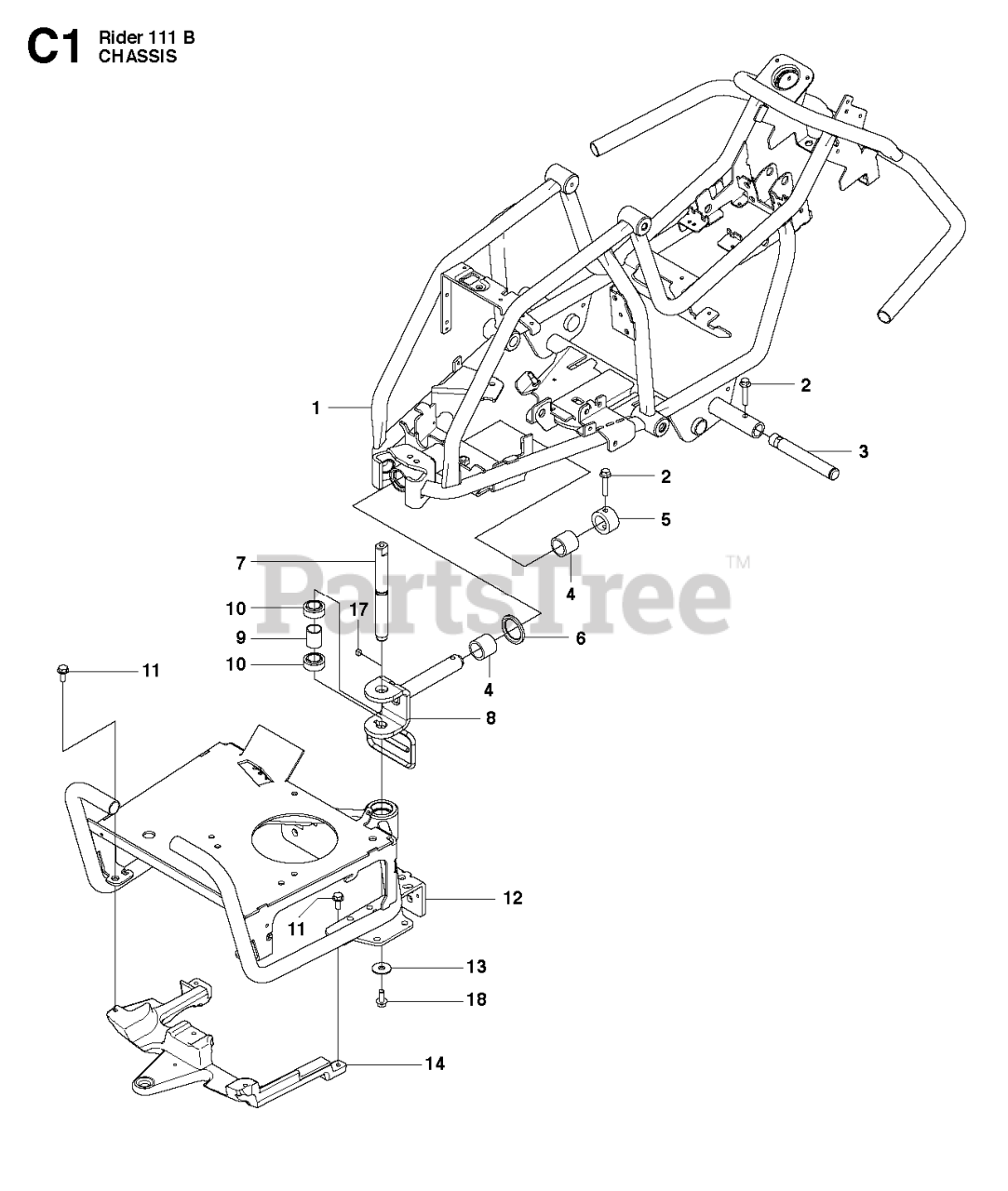

CHASSIS & ENCLOSURES 2 Parts Diagram

  • Title

17

Husqvarna 577708901

KEY

$

$

Not available

13

Husqvarna 544221601

NEEDS DESCRIPTION

$

$

Not available

5

Husqvarna 522425201

STOP SLEEVE

$

$

Not available

4

Husqvarna 506986101

BUSHING
(Superseded to 506986102)

$17.99

$

In Stock, only 2 left!

0

12

Husqvarna 522423101

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 577674801

NEEDS DESCRIPTION

$

$

Not available

1

Husqvarna 522416101

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 522424501

SLEEVE

$

$

Not available

10

Husqvarna 574368501

BEARING

$

$

Not available

18

Husqvarna 577216501

SCREW

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 725245961

BOLT FLANGE - M8X40\

$

$

Not available

14

Husqvarna 525352301

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 522425301

SPACER

$

$

Not available

3

Husqvarna 535470801

AXLE

$

$

Not available

8

Husqvarna 577705001

NEEDS DESCRIPTION

$

$

Not available
