R 11 R (966830401) - Husqvarna Swedish Riding Mower (2009-04) 94CM CUTTING DECK Parts Diagram

Swedish Riding Mower

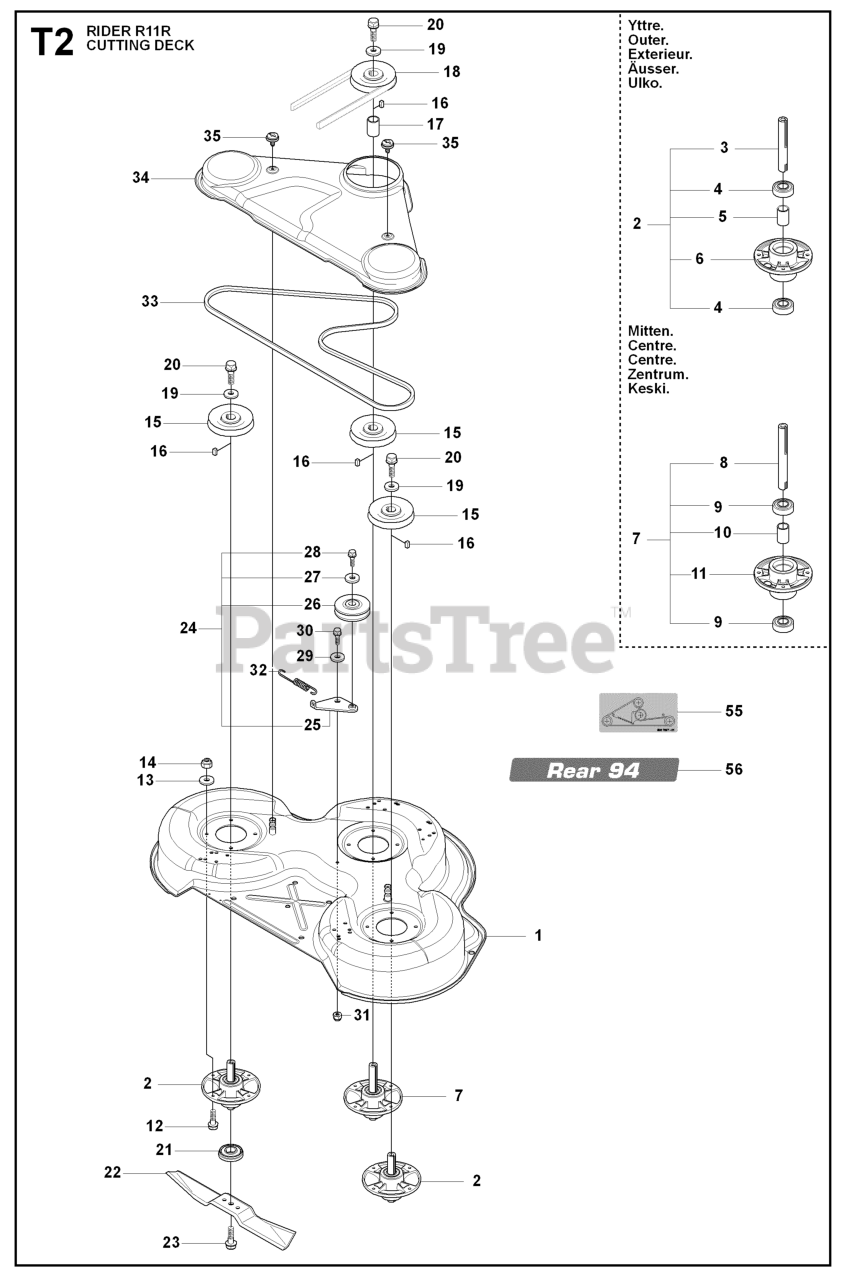

94CM CUTTING DECK Parts Diagram

  • Title

5

Husqvarna 544068001

SPACER

$

$

Not available

31

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

9

Husqvarna 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 544064901

BLADE BRACKET

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

33

Husqvarna 589530701

BELT

$56.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506797301

$

$

Not available

29

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

27

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

1

Husqvarna 544065506

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 544065903

NEEDS DESCRIPTION

$

$

Not available

3

Husqvarna 544067902

SHAFT

$

$

Not available

26

Husqvarna 506793201

PULLEY
(Superseded to 586964001)

$39.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

18

Husqvarna 506778601

PULLEY

$56.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

12

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

10

Husqvarna 544068001

SPACER

$

$

Not available

22

Husqvarna 505463510

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 544068003

SPACING SLEEVE

$

$

Not available

56

Husqvarna 544238114

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

14

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 506797101

BRACKET

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

34

Husqvarna 522821901

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

55

Husqvarna 506789701

Decal

$

$

Not available

8

Husqvarna 544067901

SHAFT

$

$

Not available

19

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0
