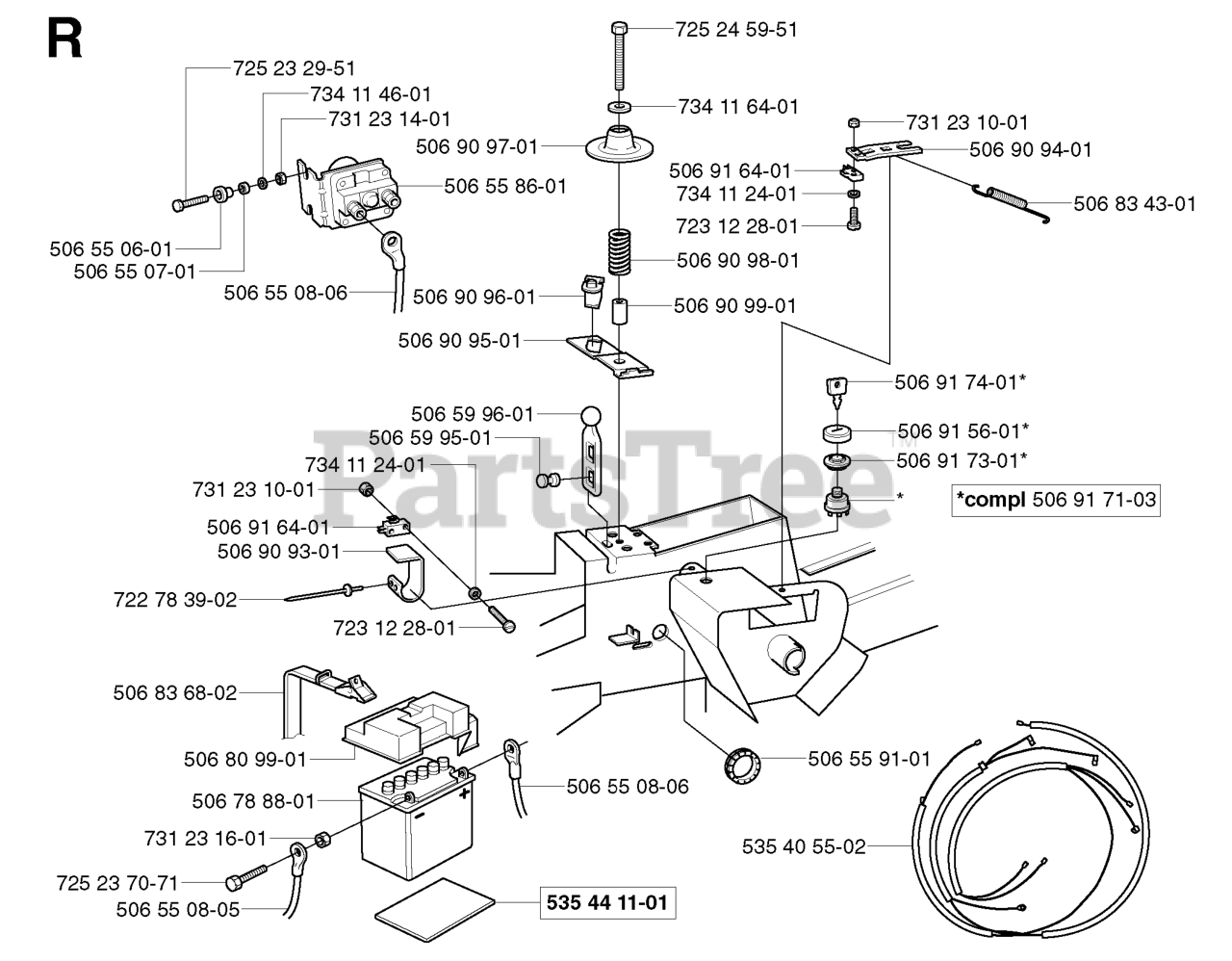

R 11 - Husqvarna Swedish Riding Mower (2003-01) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title
723 12 28-01

$1.49

$

Usually ships in 3-10 days

0

506 55 91-01

Husqvarna 506559101

Protection Ring

$

$

Not available

506 55 07-01

$

$

Not available

506 90 93-01

$

$

Not available

506 80 99-01

$

$

Not available

506 90 98-01

$

$

Not available

506 90 96-01

$31.99

$

Usually ships in 3-10 days

0

506 91 74-01

Husqvarna 506917401

KEY
(Superseded to 516844602)

$

$

Not available

506 78 88-01

Husqvarna 506788801

BATTERY - DRY
(Superseded to 531031071)

$

$

Not available

535 44 11-01

$

$

Not available

506 91 64-01

Husqvarna 506916401

SWITCH
(Superseded to 574316001)

$14.99

$

In Stock, only 1 left!

0

506 91 71-03

Husqvarna 506917103

IGNITION SWITCH

$

$

Not available

506 83 68-02

$11.99

$

Usually ships in 3-10 days

0

506 55 08-06

$

$

Not available

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

506 90 94-01

$

$

Not available

506 55 08-05

$

$

Not available

731 23 10-01

Husqvarna 731231001

NUT M6M M3

$3.99

$

Usually ships in 3-10 days

0

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

734 11 24-01

Husqvarna 734112401

WASHER BRB 3.2X7

$2.99

$

Usually ships in 3-10 days

0

506 90 97-01

$14.99

$

Usually ships in 3-10 days

0

506 90 95-01

$

$

Not available

725 24 59-51

$5.99

$

In Stock, only 4 left!

0

731 23 16-01

$6.49

$

In Stock, only 1 left!

0

506 59 95-01

$

$

Not available

506 55 06-01

$5.99

$

In Stock, only 1 left!

0

506 55 86-01

Husqvarna 506558601

STARTING SOLENOID

$

$

Not available

506 59 96-01

Husqvarna 506599601

Support Strap

$

$

Not available

506 91 73-01

Husqvarna 506917301

SWITCH
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

722 78 39-02

$

$

Not available

725 23 29-51

Husqvarna 725232951

Slotted Truss Head Screw #10-32 x 5/8"

$

$

Not available

731 23 14-01

$2.49

$

In Stock, only 1 left!

0

535 40 55-02

Husqvarna 535405502

NEEDS DESCRIPTION

$

$

Not available

506 91 56-01

Husqvarna 506915601

GROMMET
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

506 83 43-01

$4.99

$

Usually ships in 3-10 days

0

506 90 99-01

$

$

Not available

725 23 70-71

$7.49

$

Usually ships in 3-10 days

0
