R 11 - Husqvarna Swedish Riding Mower (1998-09) 85CM CUTTING DECK Parts Diagram

Swedish Riding Mower

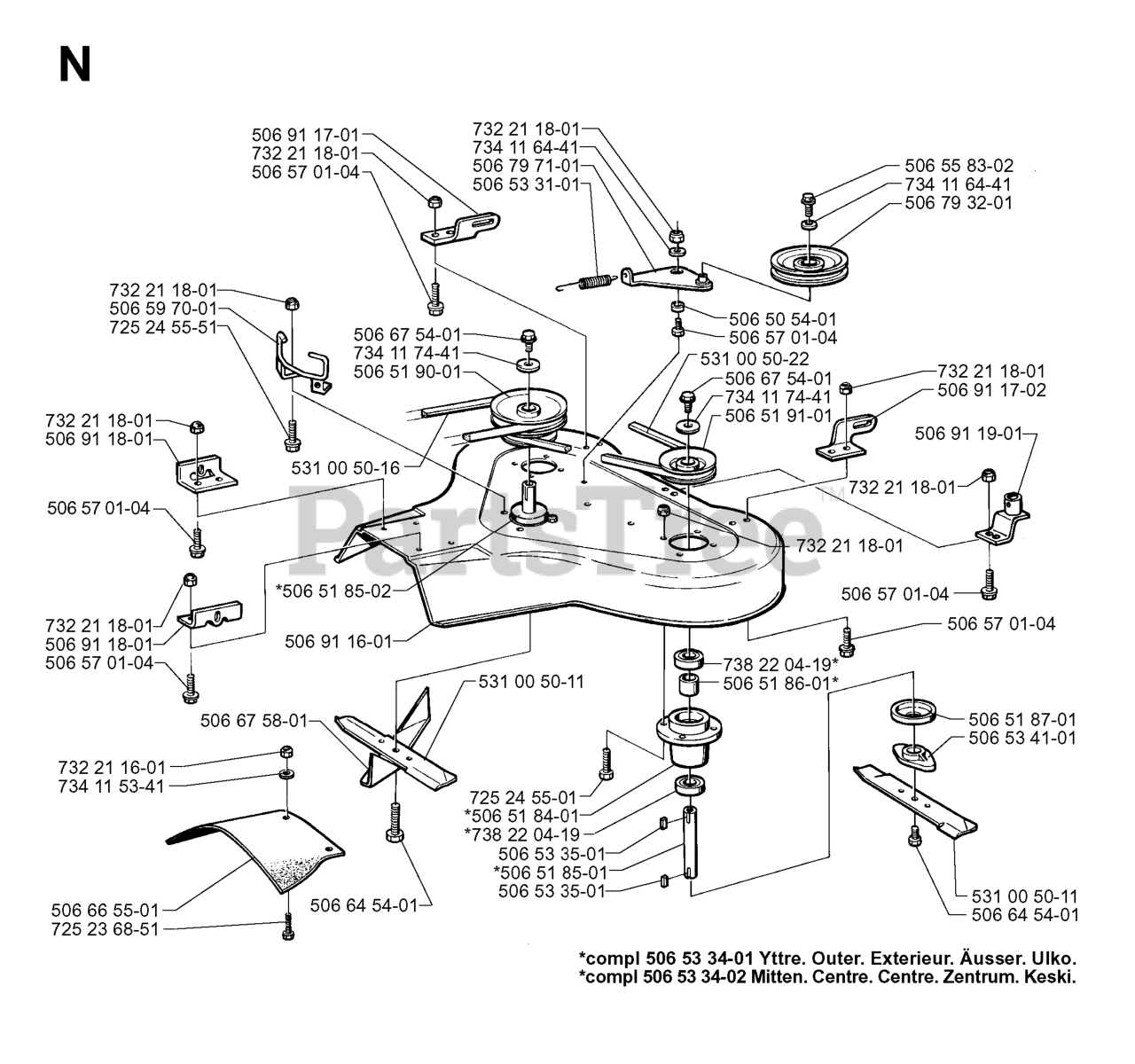

85CM CUTTING DECK Parts Diagram

  • Title
506 50 54-01

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

738 22 04-19

Husqvarna 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

734 11 64-41

$4.99

$

Usually ships in 3-10 days

0

531 00 50-22

Husqvarna 531005022

BELT
(Superseded to 589530801)

$

$

Not available

531 00 50-11

$

$

Not available

506 57 01-04

$6.49

$

In Stock, only 1 left!

0

725 24 55-51

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

506 91 16-01

$

$

Not available

725 24 55-01

$

$

Not available

506 53 34-02

Husqvarna 506533402

BLADE BEARING CPL

Note: MITTEN.

$

$

Not available

506 51 85-02

Husqvarna 506518502

CENTRE SHAFT

$

$

Not available

734 11 74-41

$4.99

$

In Stock, only 2 left!

0

506 91 18-01

$

$

Not available

725 23 68-51

Husqvarna 725236851

Screw
(Superseded to 725236871)

$4.99

$

In Stock, only 4 left!

0

506 67 54-01

$5.99

$

In Stock, only 1 left!

0

506 64 54-01

Husqvarna 506645401

CYLINDER COVER NLA

$

$

Not available

531 00 50-16

Husqvarna 531005016

BELT
(Superseded to 589531601)

$

$

Not available

506 91 17-01

$

$

Not available

506 79 32-01

Husqvarna 506793201

PULLEY
(Superseded to 586964001)

$39.99

$

Usually ships in 3-10 days

0

506 79 71-01

$26.99

$

Usually ships in 3-10 days

0

506 53 31-01

$11.99

$

Usually ships in 3-10 days

0

506 51 87-01

Husqvarna 506518701

BEARING COVER

$

$

Not available

506 51 91-01

Husqvarna 506519101

RP PULLEY
(Superseded to 535482101)

$

$

Not available

506 53 35-01

$6.49

$

Usually ships in 3-10 days

0

506 67 58-01

Husqvarna 506675801

SPREADER BLADE

$

$

Not available

506 53 41-01

Husqvarna 506534101

BLADE BOSS

$

$

Not available

506 66 55-01

Husqvarna 506665501

SPLASH GUARD

$

$

Not available

506 53 34-01

Husqvarna 506533401

BLADE BEARING CPL

Note: YTTRE.

$

$

Not available

506 51 85-01

$

$

Not available

506 59 70-01

Husqvarna 506597001

BELT TENSIONER

$

$

Not available

506 91 19-01

$

$

Not available

506 51 84-01

Husqvarna 506518401

BEARING HOUSING

$

$

Not available

506 55 83-02

$4.99

$

In Stock, only 1 left!

0

734 11 53-41

$

$

Not available

506 51 86-01

$

$

Not available

506 51 90-01

Husqvarna 506519001

DOUBLE PULLEY ASSY

$

$

Not available

506 91 17-02

$

$

Not available

732 21 16-01

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0
