R 11 C (965094201) - Husqvarna Swedish Riding Mower (2010-07) CHASSIS REAR 2 Parts Diagram

Swedish Riding Mower

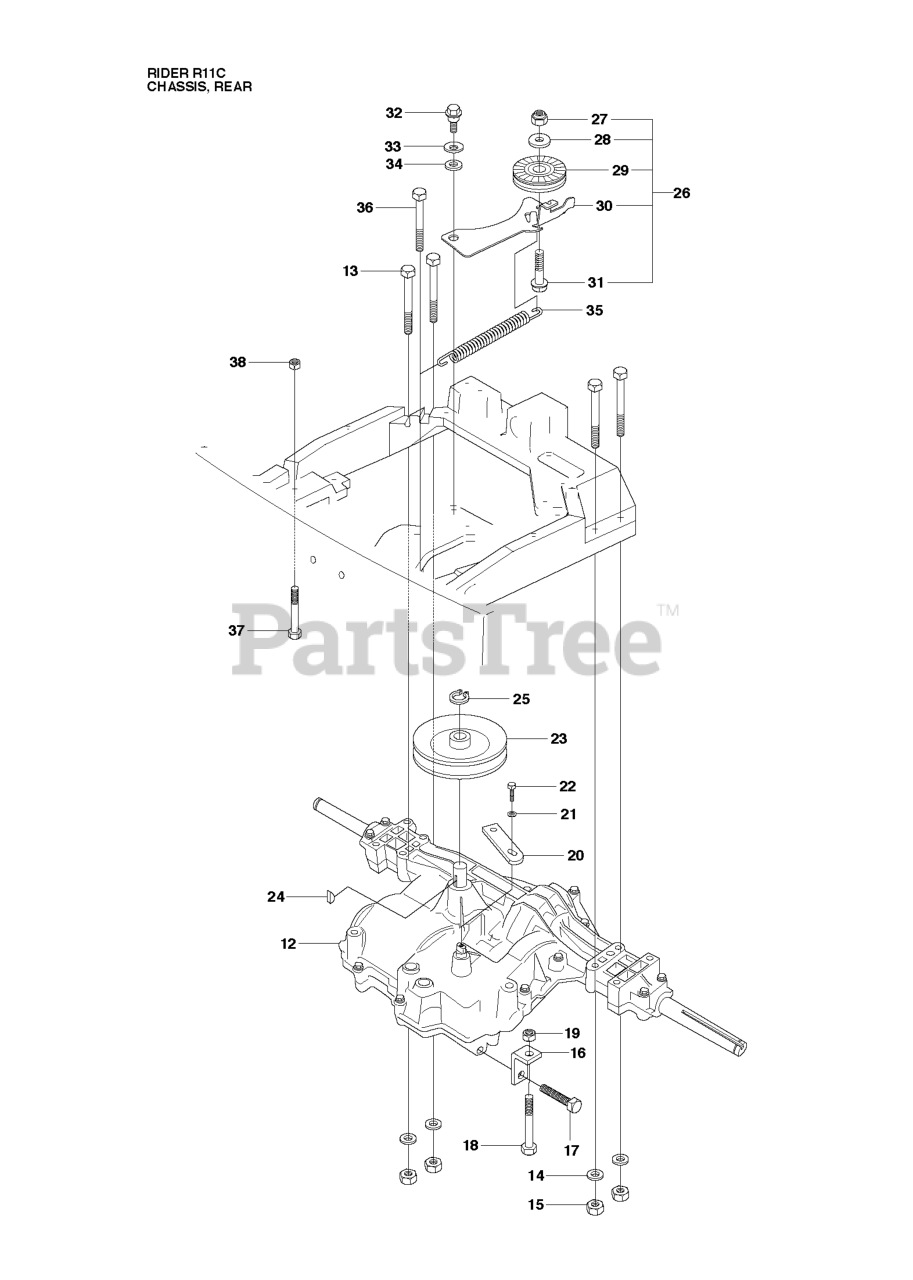

CHASSIS REAR 2 Parts Diagram

  • Title

33

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

35

Husqvarna 506988601

SPRING

$

$

Not available

29

Husqvarna 506793401

PULLEY

$

$

Not available

22

Husqvarna 506557801

Bolt

$

$

Not available

34

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

26

Husqvarna 506989501

NEEDS DESCRIPTION

$

$

Not available

15

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

31

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

37

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

20

Husqvarna 506904501

Lever

$

$

Not available

16

Husqvarna 506575101

Wire Bracket

$

$

Not available

18

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

30

Husqvarna 506989601

NEEDS DESCRIPTION

$

$

Not available

21

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

38

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

19

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

28

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 502234401

PULLEY

$

$

Not available

27

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

36

Husqvarna 725246451

SCREW

$1.99

$

Usually ships in 3-10 days

0

25

Husqvarna 735311800

Retaining Ring Sga 16

$

$

Not available

13

Husqvarna 725246751

Hex Bolt

$1.49

$

Usually ships in 3-10 days

0

32

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 506955501

GEAR BOX

$

$

Not available

17

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 506509401

Key

$

$

Not available
