R 11 BIO (953519901) - Husqvarna Swedish Riding Mower (2004-01) CONTROLS Parts Diagram

Swedish Riding Mower

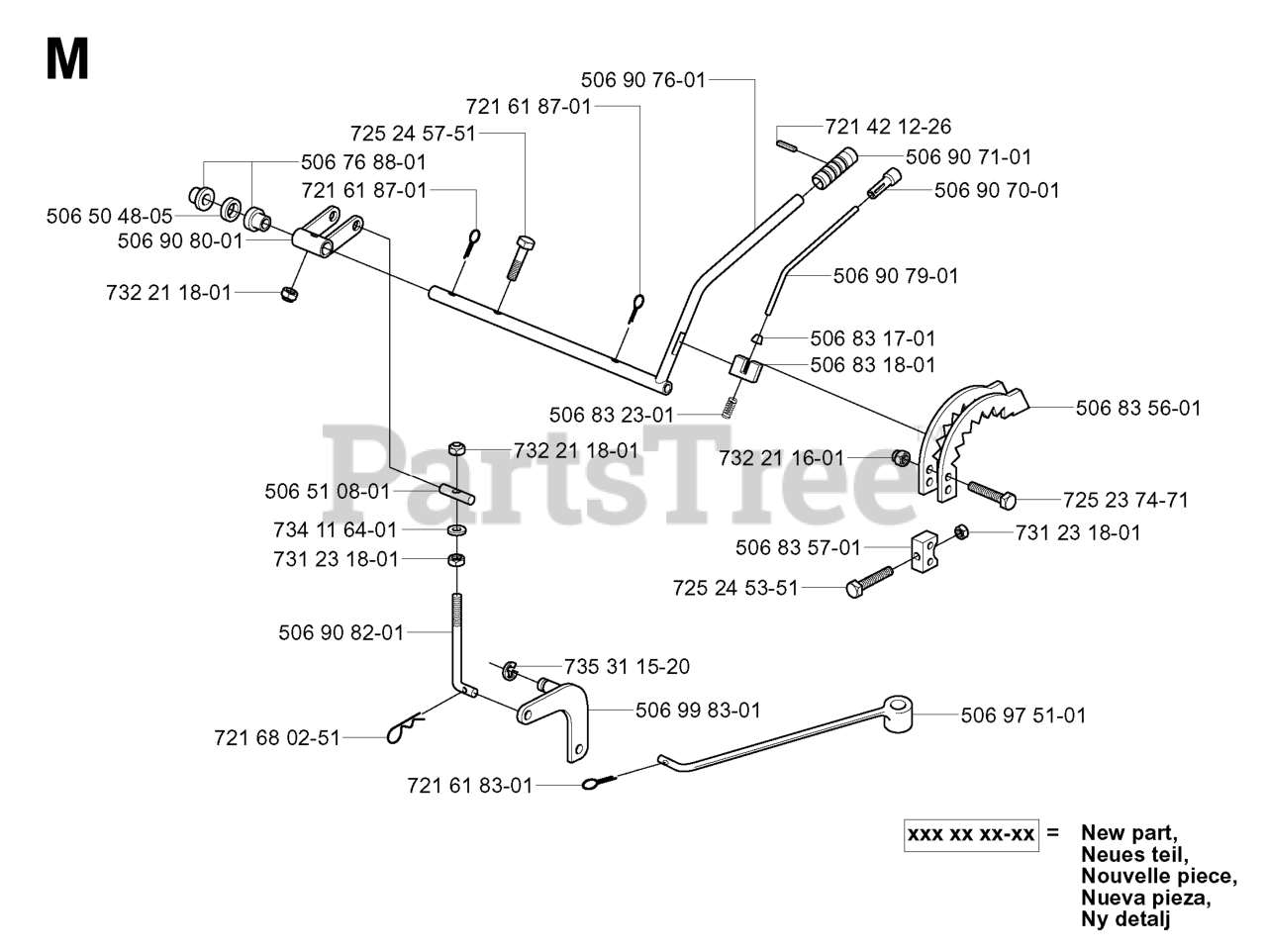

CONTROLS Parts Diagram

  • Title

590

Husqvarna 601001804

CHUTE, LWR SRS 8HP

$

$

Not available

633

Husqvarna 601001811

BLOCK, PIVOT PLASTIC

$

$

Not available

613

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

632

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

630

Husqvarna 601001810

ROD, ASSY CHUTE LWR

$

$

Not available

611

Husqvarna 601001411

BOLT

$

$

Not available

591

Husqvarna 601000066

SCREW, 1/4-20X .50 HHC

$

$

Not available

625

Husqvarna 601001809

PLATE, CHUTE ROD

$

$

Not available

607

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$5.49

$

In Stock, only 1 left!

0

600

Husqvarna 601001805

CHUTE, UPR SRS W/O HDLE

$

$

Not available

602

Husqvarna 601001390

BOLT

$

$

Not available

627

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

In Stock, only 1 left!

0

620

Husqvarna 601001808

BRACKET, CHUTE

$

$

Not available

604

Husqvarna 601000684

KNOB, W/NUT
(Superseded to 601400069)

$22.99

$

In Stock, only 1 left!

0

603

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$5.49

$

In Stock, only 1 left!

0

612

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$5.49

$

In Stock, only 1 left!

0

610

Husqvarna 601001807

BRACKET, WORM ADJUST

$

$

Not available

634

Husqvarna 601001404

WASHER

$

$

Not available

606

Husqvarna 601001391

SCREW

$

$

Not available

624

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

592

Husqvarna 601000827

NUT 1/4-20

$6.99

$

In Stock, only 4 left!

0

622

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$5.49

$

In Stock, only 1 left!

0

580

Husqvarna 601001801

RING, LOWER CHUTE

$31.99

$

In Stock, only 2 left!

0

582

Husqvarna 601001803

CLIP, CHUTE RING PLASTIC

$20.99

$

Usually ships in 3-10 days

0

614

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

605

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

581

Husqvarna 601001802

SCREW, 1/4-14X.63 HWATAP

$

$

Not available

626

Husqvarna 601000066

SCREW, 1/4-20X .50 HHC

$

$

Not available

621

Husqvarna 601001411

BOLT

$

$

Not available

608

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$10.99

$

In Stock, only 2 left!

0

601

Husqvarna 601001806

WIRE, HINGE 6.65 LG SR

$

$

Not available

631

Husqvarna 601001851

WASHER, FLAT .40X.75X.025
(Superseded to 601400003)

$

$

Not available

623

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available
