R 105 (CMXGRAM211303) (13B726JD091) - Craftsman Rear-Engine Riding Mower (2021) Electrical Parts Diagram
Rear-Engine Riding Mower

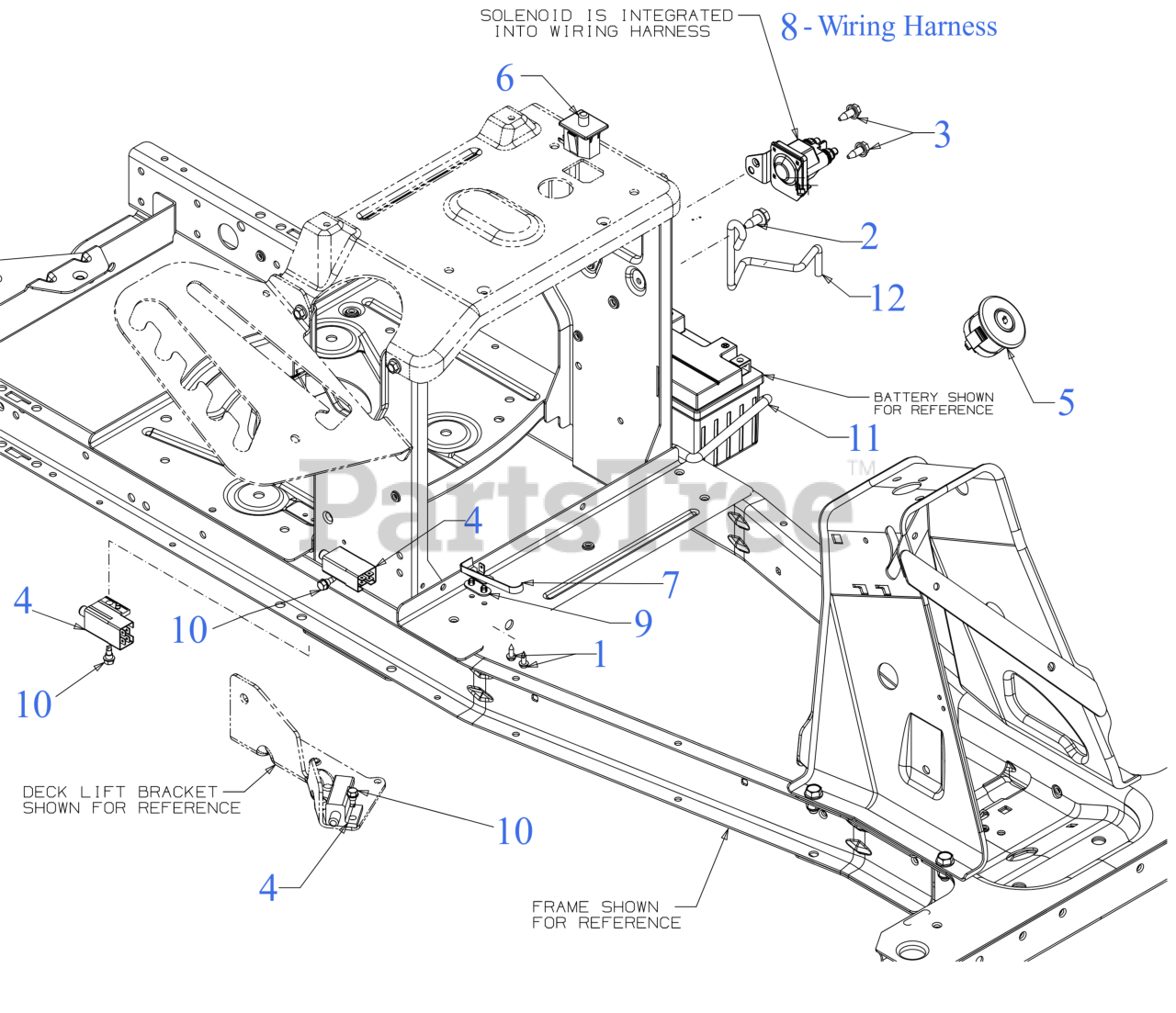

Electrical Parts Diagram
MTD 710-0227
HEX SCREW WASHER HD #8-18 x 0.500
$4.49
$
In Stock, Qty 20+
MTD 710-04484
SCREW 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
MTD 710-1652
SCREW 1/4-20X.625
$4.49
$
In Stock, Qty 20+
MTD 725-04363
INTERLOCK SWITCH (NO/NC)
$15.99
$
In Stock, Qty 10
MTD 925-04659
KEY SWITCH 3 POS WHITE PAD
$44.99
$
In Stock, Qty 20+
MTD 925-05013
SEAT SWITCH N/C,N/C
$31.99
$
In Stock, only 4 left!
MTD 725-1643
SPRING SWITCH
$10.99
$
In Stock, only 1 left!
MTD 725P17172
HARNESS (3POS SOL ACDC&DC AGM)
$172.99
$
Usually ships in 3-6 days
MTD 725-06153A
12V SOLENOID
$42.99
$
In Stock, Qty 13
MTD 926-0320
INSULATOR NUT PLATE
$6.99
$
In Stock, Qty 11
MTD 738-04237A
SHOULDER SCREW
$6.49
$
In Stock, Qty 7
MTD 747-11586
BATTERY TRAY ROD
$11.99
$
Usually ships in 3-6 days
MTD 747-11587
BATTERY HOLD DOWN ROD
$4.49
$
Usually ships in 3-6 days
