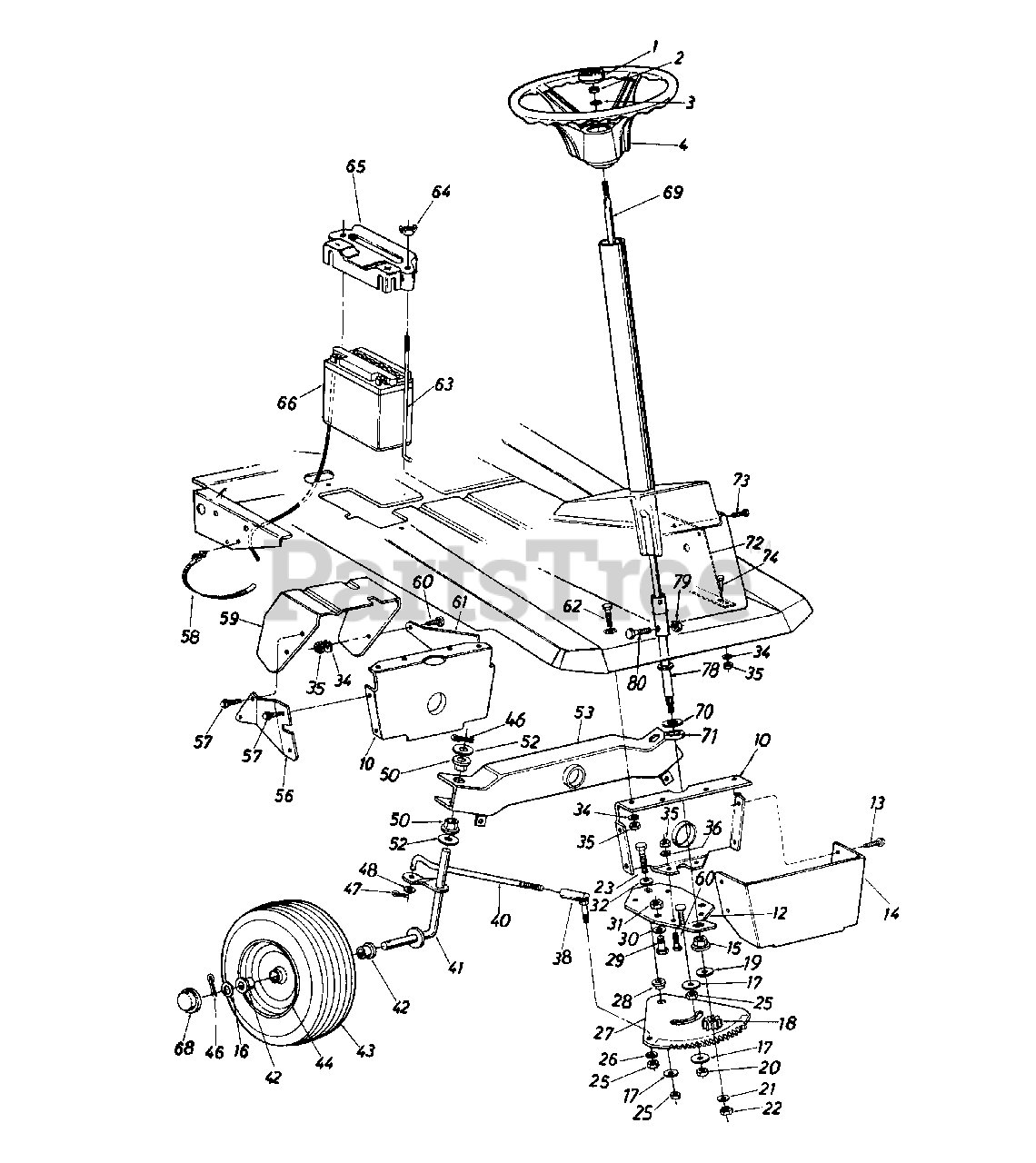

R-10 (134B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1994) Steering Assembly Parts Diagram

30" Rear-Engine Riding Mower

Steering Assembly Parts Diagram

  • Title

1

MTD 931-0220

Steering Wheel Cap

$9.49

$

In Stock, only 2 left!

0

2

MTD 912-0237

Hex L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

3

MTD 736-0242

Bell-Wash..345" I.D. x .88" O.D

$4.49

$

In Stock, Qty 20+

0

4

MTD 931-0806A

Steering Wheel Ass'y.

$

$

Not available

10

MTD 15613A

Pivot Bar Bracket

Note: NLA

Variations

MTD 15613A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 683-0045

Steering Gear Support Brkt.

Note: NLA

$

$

Not available

13

MTD 710-0896

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 15608

Steering Gear Cover

Note: NLA

Variations

MTD 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15608-0637

No Longer Available COVER-STEE - POWDER BLACK (0637)

$

$

Not available

MTD 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

16

MTD 736-0285

Fl-Wash..64" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0320

Fl-Wash. 3/8" I.D. x 1.37" O.D.

$6.99

$

In Stock, Qty 7

0

18

MTD 948-0290

Steering Pinion Gear

$

$

Not available

19

MTD 936-0272

Fl-Wash..51" I.D. x 1" O.D.
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-0116

Hex L-Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

21

MTD 936-0275

Fl-Wash..34" I.D. x .68" O.D.
(Superseded to 736-0275)

$

$

Not available

22

MTD 912-3057

Hex L-Nut 5/16-24 Thd.

$6.99

$

In Stock, only 1 left!

0

23

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)

$6.99

$

In Stock, Qty 8

0

?24

MTD 736-0320

Fl-Wash..385" I.D. x 1.38"

$6.99

$

In Stock, Qty 7

0

25

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

26

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

27

MTD 917-0472A

Steering Gear Segment

$

$

Not available

28

MTD 738-0541

Shoulder Spacer .622" Dia. x .218

Note: NLA

$

$

Not available

29

MTD 710-0689

Hex Bolt (Nylon) 1/2-13 x .75"

$6.99

$

Usually ships in 3-6 days

0

30

MTD 936-0160

Fl-Wash..530" I.D. x .930"

$4.49

$

In Stock, only 1 left!

0

31

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0105

Bell-Wash..385" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

?33

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

34

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

35

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 936-0271

Spr. Wash..32" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 10

0

38

MTD 923-0156

Ball Joint Ass'y. 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

40

MTD 747-0417

Steering Tie Rod

Note: NLA

$

$

Not available

41

MTD 983-0012

Front Axle Ass'y. - R.H.

$141.99

$

Usually ships in 3-6 days

0

41

MTD 983-0011

Front Axle Ass'y.- L.H.

$

$

Not available

42

MTD 741-0487C

Bearing

$7.49

$

Usually ships in 3-6 days

0

43

MTD 634-0147

Wheel Assembly Comp.

$

$

Not available

43

MTD 734-1382-0901

Tire Only

$32.99

$

Usually ships in 3-6 days

0

43

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

43

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

44

MTD 734-1455

Rim Only

Note: NLA

$

$

Not available

46

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25"
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

47

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00"
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

48

MTD 936-0300

Fl-Wash..385" I.D. x .87"
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

50

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

52

MTD 736-0156

Fl-Wash..635" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

53

MTD 15610C-0637

Pivot Bar Ass'y.

$224.99

$

Usually ships in 3-6 days

0

56

MTD 15694A

Bracket Reinforcement - R.H.

Note: NLA

Variations

MTD 15694A-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 710-0896

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

59

MTD 17677

Clutch-Brake Pedal Ass'y.

Note: NLA

$

$

Not available

60

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

61

MTD 15699A

Bracket Reinforcement - L.H.

Note: NLA

Variations

MTD 15699A-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

63

MTD 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

64

MTD 912-0113

Wing Nut Solid 1/4-20 Thd.

$6.99

$

In Stock, only 2 left!

0

65

MTD 731-0708

Battery Hold Down Cover

$

$

Not available

66

MTD 753-0607

12V Battery

$170.99

$

Usually ships in 3-6 days

0

68

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

69

MTD 683-0034

Steering Shaft Ass'y.

Note: NLA

$

$

Not available

70

MTD 736-0187

Fl-Wash..62" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 950-0532

Spacer

Note: Plastic

$

$

Not available

72

MTD 16069

Reinf. Brkt. Ass'y.

Note: NLA

Variations

MTD 16069-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 710-0323

Truss Mach. Scr. 5/16-18

$4.99

$

In Stock, only 2 left!

0

74

MTD 710-3103

Hex Bolt 5/16-18 x 2.00" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 738-3089A

Steering End Adapter

$

$

Not available

79

MTD 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

80

MTD 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0
