R-10 (134B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1994) Deck & Guard Assembly Parts Diagram

30" Rear-Engine Riding Mower

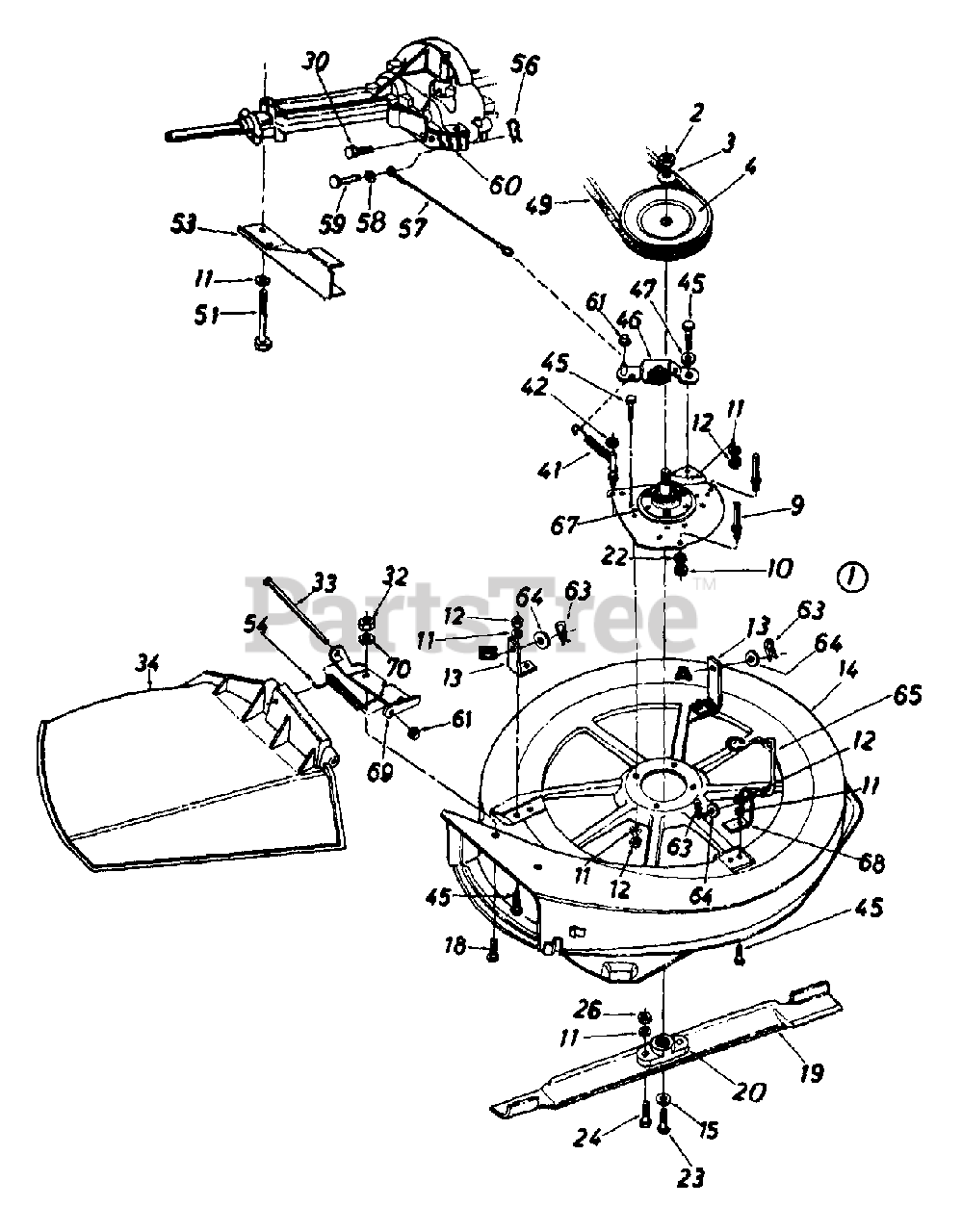

Deck & Guard Assembly Parts Diagram

  • Title

1

MTD 17611

30" S.O. Deck Ass'y. Comp.

Note: NLA

$

$

Not available

2

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 11

0

3

MTD 736-0317

Bell-Wash..630" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

4

MTD 756-0430

5/8 V-Pulley.75" I.D. x 7"

$100.99

$

Usually ships in 3-6 days

0

9

MTD 911-0640

Stud 3/8-16 x 2.75" Lg.
(Superseded to 711-0640)

$7.99

$

Usually ships in 3-6 days

0

10

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

11

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

12

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 16706

Hanger Brkt. 3.25"

Note: NLA

Variations

MTD 16706-0637

No Longer Available BRACKET-HA - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 17610

30" S.D. Deck Ass'y.

Note: NLA

Variations

MTD 17610-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 17610-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

15

MTD 936-0217

L-Wash. 3/8" I.D. Hd.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

18

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

19

MTD 742-0256A

30" High Lift Blade

Note: NLA

$

$

Not available

20

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 3 left!

0

22

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-1039

Hex Bolt 3/8-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 1 left!

0

30

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.

$3.99

$

In Stock, only 3 left!

0

32

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

33

MTD 911-0792

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

34

MTD 931-1032B

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: Incl. Ref. #33,34,54,61,69

$81.99

$

In Stock, Qty 5

0

41

MTD 732-0482

Extension Spring .5" O.D, x 3.2" Lg.

$

$

Not available

42

MTD 726-0201

Push Speed Nut

$6.99

$

In Stock, only 2 left!

0

45

MTD 710-3008

Hex Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

46

MTD 96053

Blade Brake Brkt. Ass'y.

$

$

Not available

47

MTD 748-0234

Shoulder Spacer .500" Dia.

$4.49

$

In Stock, Qty 20+

0

49

MTD 954-0264

V-Belt

$51.99

$

Usually ships in 3-6 days

0

51

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

53

MTD 15625B

Lower Outside Belt Guard

Note: NLA

Variations

MTD 15625B-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 732-0602A

Torsion Spring

$12.99

$

In Stock, Qty 5

0

56

MTD 914-0104

Int. Cot. Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

57

MTD 727-0296

Brake Cable 9.75" Lg.

Note: NLA

$

$

Not available

58

MTD 936-0142

Fl-Wash..281" I.D. x .50"
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

59

MTD 911-0701

Clevis Pin 1/4" Dia.

$6.99

$

In Stock, only 1 left!

0

60

MTD 15626B-0637

Lower Inside Belt Guard

$

$

Not available

61

MTD 926-0106

Cap Speed Nut 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

63

MTD 914-0145

Int. Cotter Pin 1/2" Dia.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

64

MTD 936-0160

Fl-Wash..531" I.D. x .930"

$4.49

$

In Stock, only 1 left!

0

65

MTD 747-0428

Deck Link 3.9" Lg.

Note: NLA

$

$

Currently unavailable

67

MTD 717-0916

Blade Spindle Ass'y. Comp.

Note: NLA

$

$

Not available

68

MTD 15621A

Weld Bracket

$

$

Not available

69

MTD 703-1693A

Hinge Mtg. Brkt.

$23.99

$

In Stock, only 4 left!

0

70

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
