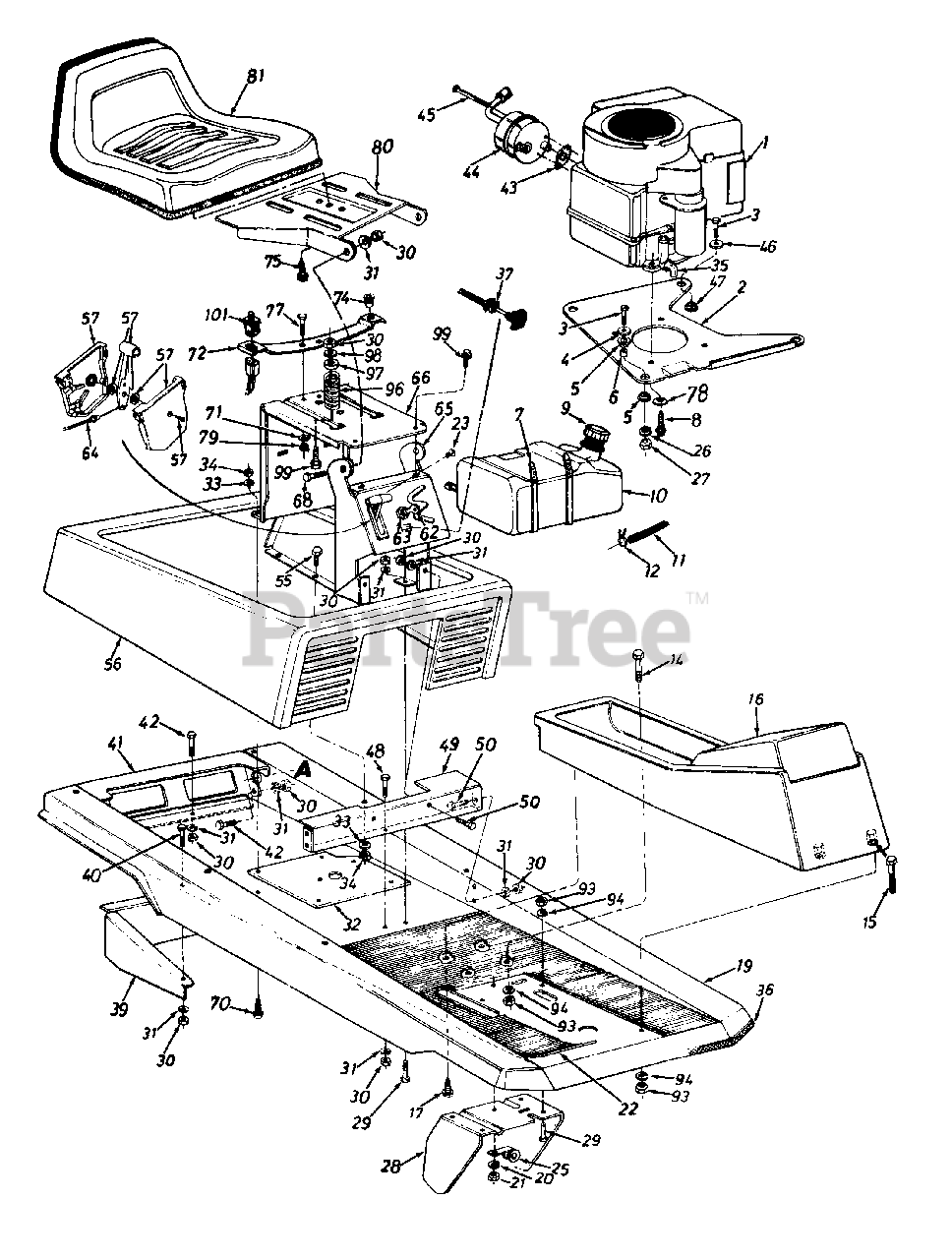

R-10 (134B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1994) Complete Assembly Parts Diagram

30" Rear-Engine Riding Mower

Complete Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 15572A-0637

Engine Mounting Plate

$

$

Not available

3

MTD 710-0672

Hex Bolt 5/16-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 18

0

4

MTD 936-0231

Fl - Wash. .330" I.D. x 1.125" O.D.
(Superseded to 736-0231)

$

$

Not available

5

MTD 922-0153

Engine Mounting Grommet
(Superseded to 722-0153)

$

$

Not available

6

MTD 950-0539

Spacer .315" I.D. x .50" O.D. x .520" Lg.

$

$

Not available

7

MTD 726-0230

Cable Tie 30.6" Lg.

$27.99

$

In Stock, only 1 left!

0

8

MTD 710-0502A

Hex Wash. Hd. Self - Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

9

MTD 751-0603A

Gas Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

10

MTD 751-0368C

Fuel Tank

$

$

Not available

11

MTD 751-10349-28

Gas Line - 26 Inches

$41.99

$

In Stock, only 1 left!

0

12

MTD 726-0205

Hose Clamp - 1/2" O.D. Tube

$3.99

$

In Stock, Qty 18

0

14

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 14

0

15

MTD 710-3103

Hex Bolt 5/16-18 x 2.0" Lg.

$4.49

$

In Stock, only 4 left!

0

16

MTD 731-0712A

Front Console

Note: NLA

$

$

Not available

17

MTD 710-0323

Plastite Scr. 5/16 x 1.25" Lg.

$4.99

$

In Stock, only 2 left!

0

19

MTD 17672A

Main Frame

Note: NLA

$

$

Currently unavailable

20

MTD 936-0119

L - Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

21

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 735-0220A

Floor Mat

Note: NLA

$

$

Not available

23

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

25

MTD 726-0175

Clamp

$

$

Not available

26

MTD 936-0119

L - Wash. 5/16" I.D."

$4.99

$

In Stock, Qty 20+

0

27

MTD 912-3057

Hex Nut 5/16-24 Thd."

$6.99

$

In Stock, only 3 left!

0

28

MTD 17677

Clutch - Brake Pedal Ass'y.

Note: NLA

$

$

Not available

29

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

30

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-0119

L - Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

32

MTD 783-0005

Variable Speed Mounting Plate

Note: NLA

Variations

MTD 783-0005-0637

No Longer Available PLATE-V/S - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 936-0329

L - Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

34

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

35

MTD 737-0125

90ø Elbow Male To Female

$

$

Not available

36

MTD 731-0511-57

Trim Strip 57" Lg.

Note: 39" Req'd.

$73.99

$

Usually ships in 3-6 days

0

37

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

39

MTD 15552

Transaxle Support Ass'y.

Note: NLA

Variations

MTD 15552-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 15571

Rear Frame Panel

Note: NLA

Variations

MTD 15571-0498

No Longer Available PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15571-0629

No Longer Available PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

MTD 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 15571-0638

No Longer Available PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

MTD 710-3039

Hex Bolt 5/16-18 x .50" Lg.

$

$

Not available

43

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

44

MTD 951-0413

Muffler Ass'y.

$

$

Not available

44

MTD 951-0544

Spark Arrester

$

$

Not available

45

MTD 938-0636

Shld, Bolt

$

$

Not available

46

MTD 736-0343

Fl - Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

47

MTD 736-0392

Flange Wash. .32" I.D. x .75" O.D.

Note: NLA

$

$

Not available

48

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

49

MTD 15604

Seat Support & Frame Brkt.

Note: NLA

$

$

Not available

50

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

55

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.

$3.99

$

In Stock, only 3 left!

0

56

MTD 15975A

Engine Cover Ass'y.

Note: NLA

Variations

MTD 15975A-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15975A-0662

No Longer Available COVER ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

57

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

62

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

63

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 8

0

64

MTD 946-0503

Throttle Control Wire 35" Lg.

$

$

Not available

65

MTD 16483A

Front Seat Bracket

Note: NLA

Variations

MTD 16483A-0637

No Longer Available BRACKET-SE - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 15606A-0637

Rear Seat Bracket

$

$

Not available

68

MTD 938-0296

Shld. Bolt .437" Dia. x .268" Lg.
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

?69

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0788

Hex Tap Scr. 1/4-20 x 1.0" Lg.

$7.49

$

In Stock, only 4 left!

0

71

MTD 936-0119

L - Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

72

MTD 732-0632

Seat Spring

Note: NLA

$

$

Not available

74

MTD 731-0555A

Grommet

$

$

Not available

75

MTD 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, only 2 left!

0

77

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 736-0242

Bell - Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 912-0158

Hex Cent. L - Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

80

MTD 783-0039A

Seat Pivot Bracket

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

81

MTD 957-0378

Seat Ass'y.

$

$

Not available

93

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

94

MTD 936-0119

L - Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

96

MTD 932-0633

Compression Spring 2.6" Lg.

$

$

Not available

97

MTD 722-0160

Bushing

$

$

Not available

98

MTD 936-0159

Fl - Wash. .344" I.D. x .875"
(Superseded to 736-0159)

$

$

Not available

99

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, only 4 left!

0

101

MTD 725-1441

Seat Switch

Note: NLA

$

$

Not available
