R-10 (133B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1993) Single Speed Transaxle - L.H. Parts Diagram

30" Rear-Engine Riding Mower

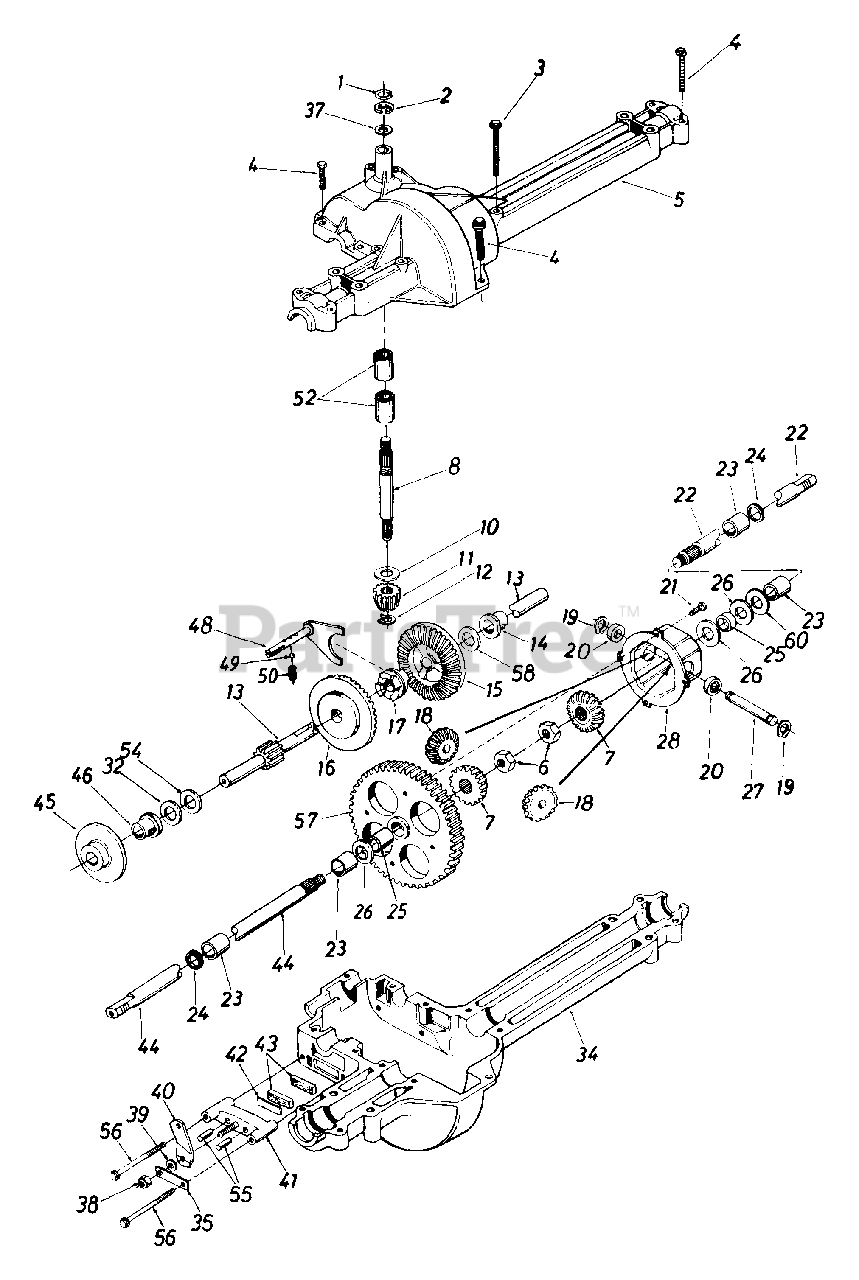

Single Speed Transaxle - L.H. Parts Diagram

  • Title

White Outdoor 618-0074

Single Speed Transaxle - L.H.
(Superseded to 918-0165A)

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

2

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0854

Hex Bolt 1/4-20 x 1.75" Lg.
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

4

White Outdoor 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 17

0

5

White Outdoor 719-0314

Upper Housing
(Superseded to 753-0678)

$

$

Not available

6

White Outdoor 712-0200A

Hex Jam Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

7

White Outdoor 717-1019

Miter Gear
(Superseded to 917-1019)

$29.99

$

Usually ships in 3-6 days

0

8

$

$

Not available

10

White Outdoor 736-0335

Thrust Washer 5/8" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 8

0

11

White Outdoor 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

12

White Outdoor 716-0171

Retaining Ring
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

13

White Outdoor 711-0942

Drive Shaft - L.H. Brake
(Superseded to 753-0596)

$103.99

$

Usually ships in 3-6 days

0

14

White Outdoor 741-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 1 left!

0

15

White Outdoor 717-1362

Bevel Gear 42T - Small I.D.
(Superseded to 917-1362)

$51.99

$

In Stock, only 1 left!

0

16

White Outdoor 717-1363

Bevel Gear 42T - Large I.D.
(Superseded to 917-1363)

$51.99

$

In Stock, only 1 left!

0

17

White Outdoor 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

18

White Outdoor 717-1020

Miter Gear 15T (H.D.)

$

$

Not available

19

White Outdoor 716-0184

Snap Ring
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

20

White Outdoor 741-0589

Thrust Bearing
(Superseded to 941-0589)

$6.49

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

$4.99

$

Usually ships in 3-6 days

0

22

White Outdoor 717-0771A

Axle R.H.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

23

White Outdoor 741-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 8

0

24

White Outdoor 721-0179

Oil Seal 3/4" I.D.

$8.99

$

In Stock, Qty 20+

0

25

$5.99

$

Usually ships in 3-6 days

0

26

White Outdoor 736-0445

Fl-Wash. .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 11

0

27

$15.99

$

Usually ships in 3-6 days

0

28

White Outdoor 717-1252

Differential Can Ass'y.
(Superseded to 918-04089)

$

$

Not available

32

Washer

$

$

Not available

White Outdoor 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0494

Thrust Wash. 5/8" I.D. x 1" O.D. x .035" Thk.

$4.99

$

In Stock, only 4 left!

0

White Outdoor 736-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

34

White Outdoor 719-0313

Lower Housing
(Superseded to 719-0313B)

$154.99

$

Usually ships in 3-6 days

0

35

White Outdoor 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

37

Washer

$

$

Not available

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

38

White Outdoor 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0371

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 717-0772A

Actuating Arm
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

41

White Outdoor 761-0198

Brake Yoke
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

42

White Outdoor 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

43

White Outdoor 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 7

0

44

717-0770A

Axle L.H.

$

$

Not available

45

$15.99

$

In Stock, only 1 left!

0

46

White Outdoor 741-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.
(Superseded to 941-0337)

$10.99

$

In Stock, only 3 left!

0

48

White Outdoor 611-0011

Shift Fork Ass'y.
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

49

White Outdoor 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 1 left!

0

52

White Outdoor 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 2 left!

0

54

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 741-0343

Actuating Pin 5/16" Dia

$10.99

$

In Stock, Qty 7

0

56

White Outdoor 710-1206

Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd.

$7.49

$

In Stock, Qty 6

0

57

White Outdoor 717-1364

Differential Gear 58T
(Superseded to 917-04292)

$

$

Not available

58

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

60

Washer

$

$

Not available

White Outdoor 736-0492

Fl-Wash. .76" I.D. x 1.5" O.D. x .010" Thk.
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0493

Fl-Wash. .76" I.D. x 1.5" O.D. x .020" Thk.
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0445

Fl-Wash. .76" I.D. x 1.5" O.D. x .060" Thk.

$4.49

$

In Stock, Qty 11

0

White Outdoor 737-0148

Grease - Shell (15 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
