R-10 (131-521B190) - White Outdoor 30" Rear-Engine Riding Mower (1991) Body Assembly Parts Diagram

30" Rear-Engine Riding Mower

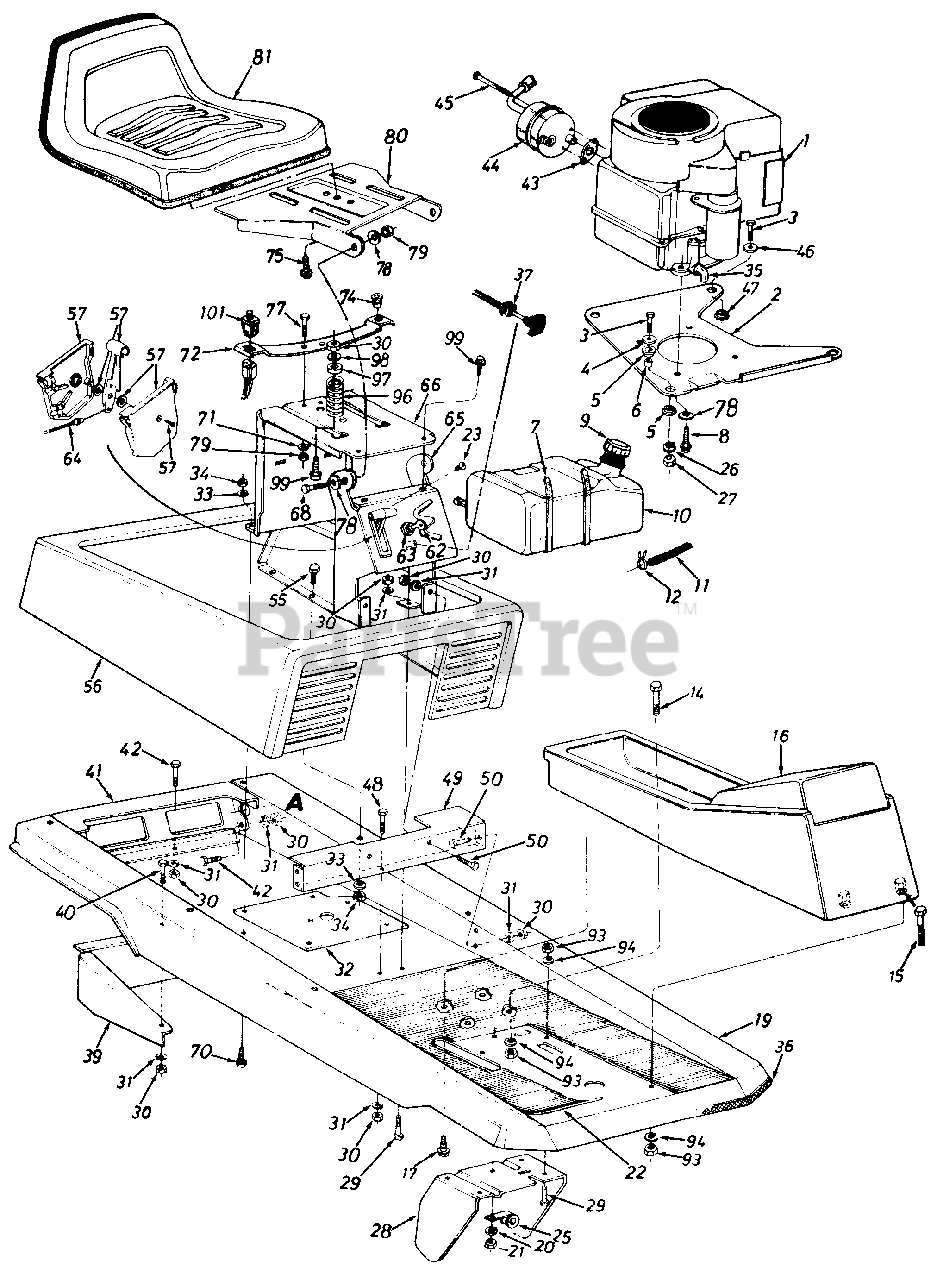

Body Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 15572A

Engine Mounting Plate
(Superseded to 15572A-0637)

Variations

White Outdoor 15572A-0637

PLATE-ENGINE MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

4

White Outdoor 736-0231

Fl-Wash. .330" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 11

0

5

White Outdoor 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

White Outdoor 750-0539

Spacer .315" I.D. x .50" O.D. x.520" Lg.
(Superseded to 950-0539)

$

$

Not available

7

White Outdoor 726-0209

Cable Tie 30.6" Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0502A

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 723-0155

Gas Gauge

Note: (Used w/Black Fuel Tank)

$

$

Not available

White Outdoor 751-3071

Gas Cap
(Superseded to 751-0603B)

Note: (Used w/White Fuel Tank)

$23.99

$

In Stock, only 2 left!

0

10

White Outdoor 751-0368

Fuel Tank (Black)
(Superseded to 751-0368C)

$

$

Not available

White Outdoor 751-0368A

Fuel Tank (White)
(Superseded to 751-0368C)

$

$

Not available

11

751-0535

Gas Line-26 Inches

$

$

Not available

12

White Outdoor 726-0205

Hose Clamp-1/2" O.D. Tube

$3.99

$

In Stock, Qty 18

0

14

White Outdoor 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

15

White Outdoor 710-0116

Hex Bolt 5/16-18 x 2.0" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

16

White Outdoor 731-0712A

Front Console

$

$

Not available

17

White Outdoor 710-0906

Plastite Scr. 5/16 x 1.25 Lg.
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

19

White Outdoor 17672

Main Frame

$

$

Not available

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

22

White Outdoor 735-0220A

Floor Mat

$

$

Not available

23

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

25

White Outdoor 726-0175

Clamp

$

$

Not available

26

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

White Outdoor 17677

Clutch-Brake Pedal Ass'y.

$

$

Not available

29

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

31

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 783-0005

Variable Speed Mounting Plate

Variations

White Outdoor 783-0005-0637

No Longer Available PLATE-V/S MTG - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

34

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

35

White Outdoor 737-0125

90ø Elbow Male To Female

$

$

Not available

36

White Outdoor 731-0511-18

Trim Strip 18" Lg.

$29.99

$

Usually ships in 3-6 days

0

37

White Outdoor 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

39

White Outdoor 15552

Transaxle Support Ass'y.

Variations

White Outdoor 15552-0637

No Longer Available SUPPORT ASSY-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 15571

Rear Frame Panel

Variations

White Outdoor 15571-0498

No Longer Available PANEL-FRAME-RR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 15571-0629

No Longer Available PANEL-FRAME-RR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 15571-0638

No Longer Available PANEL-FRAME-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

White Outdoor 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

43

White Outdoor 721-0207

Exhaust Gasket
(Superseded to BS-692237)

Note: (R-86)

$5.49

$

In Stock, only 4 left!

0

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (R-10)

$5.49

$

In Stock, Qty 20+

0

44

White Outdoor 751-0412

Muffler Ass'y.

Note: (R-86)

$

$

Not available

White Outdoor 751-0425

Spark Arrester For 8 H.P. Muffler
(Superseded to 951-0643)

Note: (Optional)

$

$

Not available

White Outdoor 751-0413

Muffler Ass'y.
(Superseded to 951-0413)

Note: (R-10)

$

$

Not available

White Outdoor 751-0426

Spark Arrester For 10 H.P.
(Superseded to 951-0544)

Note: (Optional)

$

$

Not available

45

White Outdoor 738-0635

Shld. Bolt
(Superseded to 938-0635)

Note: (R-86)

$

$

Not available

White Outdoor 738-0636

Shld. Bolt
(Superseded to 938-0636)

Note: (R-10)

$

$

Not available

46

White Outdoor 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

47

White Outdoor 736-0392

Flange Wash. .32" I.D. x .75" O.D.

$

$

Not available

48

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 15604

Seat Support & Frame Brkt.

$

$

Not available

50

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

56

White Outdoor 15975

Engine Cover Ass'y.

$

$

Not available

57

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

62

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

64

White Outdoor 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

65

White Outdoor 16483A

Front Seat Bracket

Variations

White Outdoor 16483A-0637

No Longer Available BRACKET-SEAT - POWDER BLACK (0637)

$

$

Not available

$

$

66

White Outdoor 15606A

Rear Seat Bracket

Variations

White Outdoor 15606A-0637

BRACKET-SEAT-REVIS - POWDER BLACK (0637)

$

$

Not available

$

$

68

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 710-0855

Hex Tap Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 4 left!

0

71

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

White Outdoor 732-0632

Seat Spring

$

$

Not available

74

White Outdoor 731-0555A

Grommet

$

$

Not available

75

White Outdoor 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4 " Lg.

$4.49

$

In Stock, only 2 left!

0

77

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

80

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

White Outdoor 757-0345

Seat Ass'y.
(Superseded to 957-0378)

Note: (R-86)

$

$

Not available

White Outdoor 757-0338

Seat Ass'y.
(Superseded to 957-0360A)

Note: (R-10)

$

$

Not available

93

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

94

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

96

White Outdoor 732-0633

Compression Spring 2.61" Lg.
(Superseded to 932-0633)

$

$

Not available

97

White Outdoor 722-0160

Bushing

$

$

Not available

98

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

99

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, only 4 left!

0

101

White Outdoor 725-1441

Seat Switch

$

$

Not available
