R-10 (130-521D190) - White Outdoor 30" Rear-Engine Riding Mower (1990) 32" Side Discharge Mowing Deck Assembly Parts Diagram

30" Rear-Engine Riding Mower

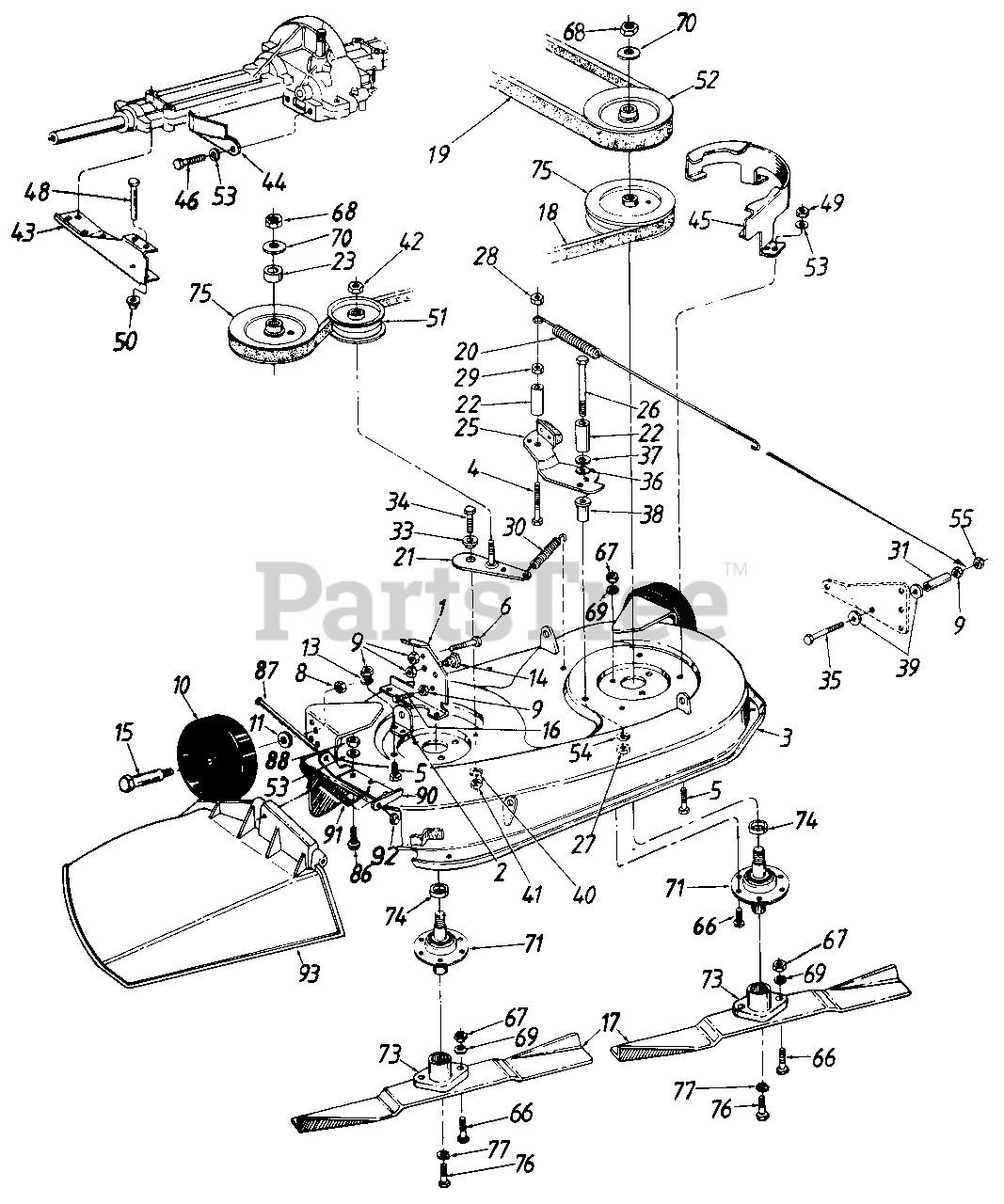

32" Side Discharge Mowing Deck Assembly Parts Diagram

  • Title

1

White Outdoor 17094B

Deck Disengagement Brkt.

$

$

Not available

2

17096

Rear Deck Brkt.-R.H.

$

$

Not available

3

White Outdoor 17102

32" Deck Ass'y.
(Superseded to 17102A)

$

$

Not available

17242

32" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available

4

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

5

710-0285

Hex Bolt 1/4-20 x .62" Lg.

$

$

Not available

6

White Outdoor 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

9

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

White Outdoor 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

White Outdoor 738-0183

Shld. Bolt .500" Dia. x .215"
(Superseded to 938-0183)

$

$

Not available

15

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0642

Hex Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 742-0487

R.H. High-Lift Blade

$

$

Not available

18

White Outdoor 754-0290

V-Belt
(Superseded to 954-0290)

$

$

Not available

19

White Outdoor 754-0347

V-Belt
(Superseded to 954-0347)

$

$

Not available

20

White Outdoor 732-0575

Extension Spring 15-5/8" Lg.

$

$

Not available

21

White Outdoor 17241

Idler Brkt. Ass'y.

$

$

Not available

22

White Outdoor 750-0470

Spacer 5/16" I.D. x 1/2" O.D. x 31 /32

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 750-0732

Spacer .752" I.D. x 1.25" O.D.

$

$

Not available

25

White Outdoor 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

26

White Outdoor 710-3056

Hex Bolt 5/16-18 x 3.25" Lg.

$10.99

$

In Stock, only 1 left!

0

27

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

White Outdoor 712-0117

Hex L-Nut l/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

29

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

30

White Outdoor 732-0428A

Extension Spring 4.35" Lg.
(Superseded to 932-0428A)

$

$

Not available

31

White Outdoor 750-0583

Spacer 1/4" l.D. x 3/8" O.D. x 1-5/16"
(Superseded to 950-0583)

$

$

Not available

33

White Outdoor 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0230

Wave Washer
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

37

White Outdoor 748-0234

Shld. Spacer .27" Lg.

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 750-0702

Spacer 1.46" Lg.

$

$

Not available

39

White Outdoor 736-0176

Flat Wash. 1/4"

$4.99

$

In Stock, only 4 left!

0

40

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 712-3017

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

43

White Outdoor 15625B

Lower Outside Belt Guard

Variations

White Outdoor 15625B-0637

No Longer Available GUARD-BELT-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

44

17117

Lower Inside Belt Guard

$

$

Not available

45

White Outdoor 17164

Belt Guard Deck-R.H.

$

$

Not available

46

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 710-0586

Pin

$

$

Not available

49

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

White Outdoor 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

51

White Outdoor 756-0515

Flat Idler Pulley

$

$

Not available

52

White Outdoor 756-0517

5" Dia. Pulley

$

$

Not available

53

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

54

White Outdoor 736-0242

Bell-Wash. 5/16" l.D.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

66

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

68

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

69

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 736-0317

Bell-Wash. 5/8" l.D.

$7.99

$

In Stock, Qty 20+

0

71

White Outdoor 717-0900

Blade Spindle Ass'y. Comp.
(Superseded to 917-0900A)

$

$

Not available

73

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

74

750-0731

Spacer

$

$

Not available

75

White Outdoor 756-0516

5" Dia. Pulley

$

$

Not available

76

White Outdoor 710-0152

Hex Bolt 3/8-24 x l.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 736-0217

L-Wash. 3/8" l.D. H.D.

$4.49

$

In Stock, Qty 8

0

86

White Outdoor 710-0255

Truss.-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

88

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

90

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

91

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

92

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

93

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0
