Exmark QZX735GKC48300 - Exmark 48" Quest X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Motion Control Assembly Parts Lookup with Diagrams

1

Exmark 138-7598-03

PLATE-CONTROL BOX, LH

$33.99

$

Usually ships in 3-6 days

2

Exmark 138-7599-03

PLATE-CONTROL BOX, RH

$33.99

$

Usually ships in 3-6 days

3

Exmark 144-1960

BOX, STORAGE

$10.99

$

Usually ships in 3-6 days

4

Exmark 119-3470

ACTUATOR ARM ASM

$27.99

$

In Stock, only 1 left!

4:2

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

5

Exmark 133-9299-05

ARM-CONTROL

$49.99

$

In Stock, Qty 5

6

Exmark 139-5803

ECCENTRIC

$1.49

$

Usually ships in 3-6 days

7

Exmark 138-7539

SPRING-TORSION

$6.99

$

Usually ships in 3-6 days

8

Exmark 133-7055

HANDLE-CONTROL, LH

$63.99

$

In Stock, only 1 left!

8:1

Exmark 121-0726

GRIP

$14.99

$

In Stock, only 2 left!

9

Exmark 133-7057

HANDLE-CONTROL, RH

$63.99

$

In Stock, only 1 left!

9:1

Exmark 121-0726

GRIP

$14.99

$

In Stock, only 2 left!

10

Exmark 138-2580

ROD-HYDRO, FRONT

$9.49

$

Usually ships in 3-6 days

12

Exmark 121-1753

PIN-ROD, HYDRO

$6.49

$

Usually ships in 3-6 days

17

Exmark 132-6853

DAMPER-NON CAVITATING

$35.99

$

Usually ships in 3-6 days

18

Exmark 138-7215

STUD-DAMPER

$2.99

$

In Stock, only 2 left!

20

Exmark 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

21

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

22

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

23

Exmark 139-5811

BOLT-PIVOT, ECCENTRIC

$1.99

$

Usually ships in 3-6 days

24

Exmark 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 15

25

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

27

Exmark 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

29

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

30

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

31

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

32

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

33

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

34

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

35

Exmark 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

36

Exmark 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

38

Exmark 139-3280-05

PLATE-KICK

$19.99

$

Usually ships in 3-6 days

41

Exmark 119-8948

PLATE-STOP, HYDRO

$2.99

$

Usually ships in 3-6 days

42

Rod Hydro ASM

Note: Not serviced separately

$

Not available 

42:1

Exmark 144-1818

ROD-HYDRO, REAR

$8.49

$

Usually ships in 3-6 days

42:2

Exmark 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

42:3

Exmark 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

42:4

Exmark 138-7218

Rod-Hydro

$12.99

$

In Stock, only 1 left!

42:5

Exmark 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

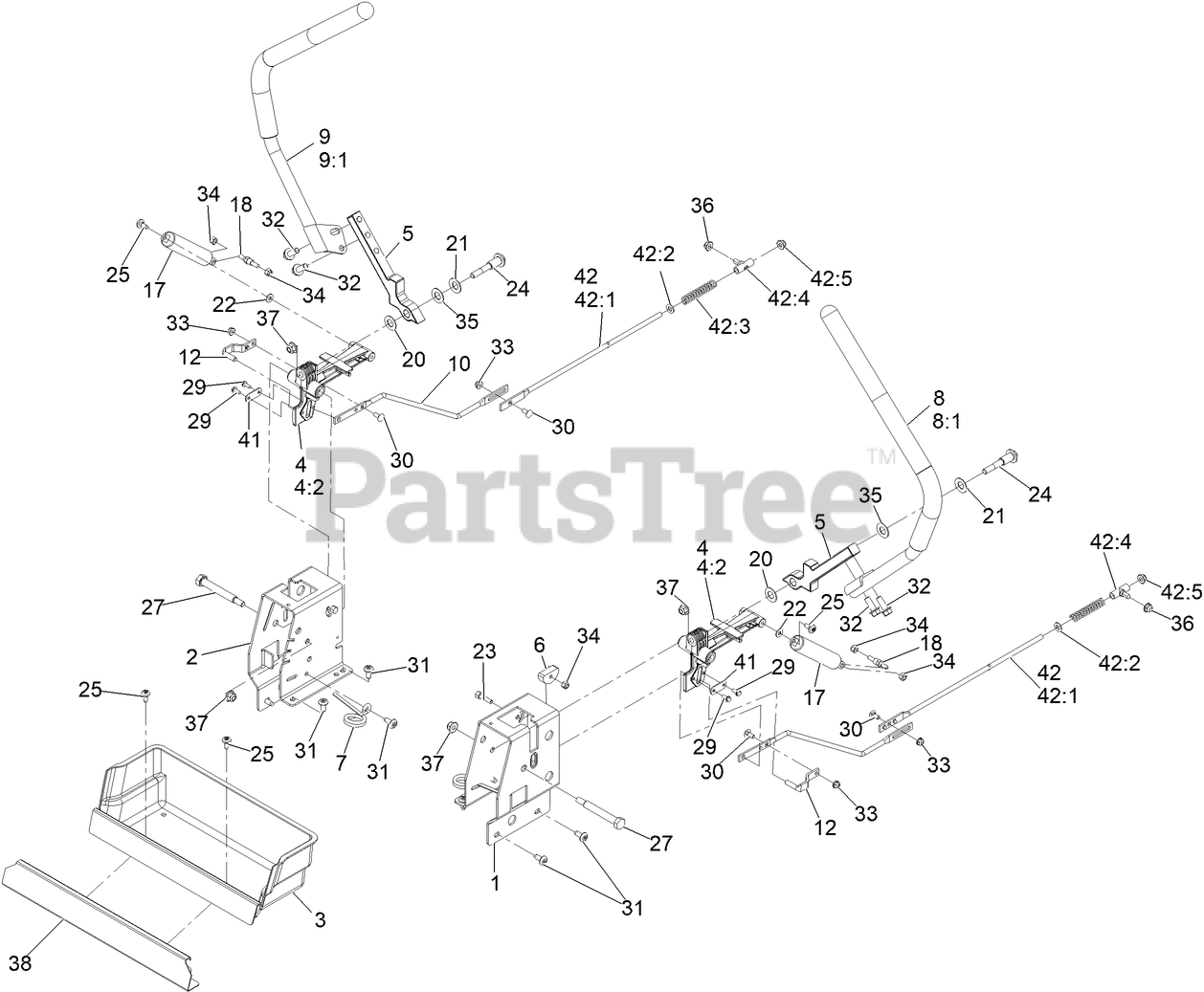

QZX735GKC48300 - Exmark 48" Quest X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Motion Control Assembly Parts Diagram

Motion Control Assembly Parts Diagram
