QZS735GKC54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Kohler

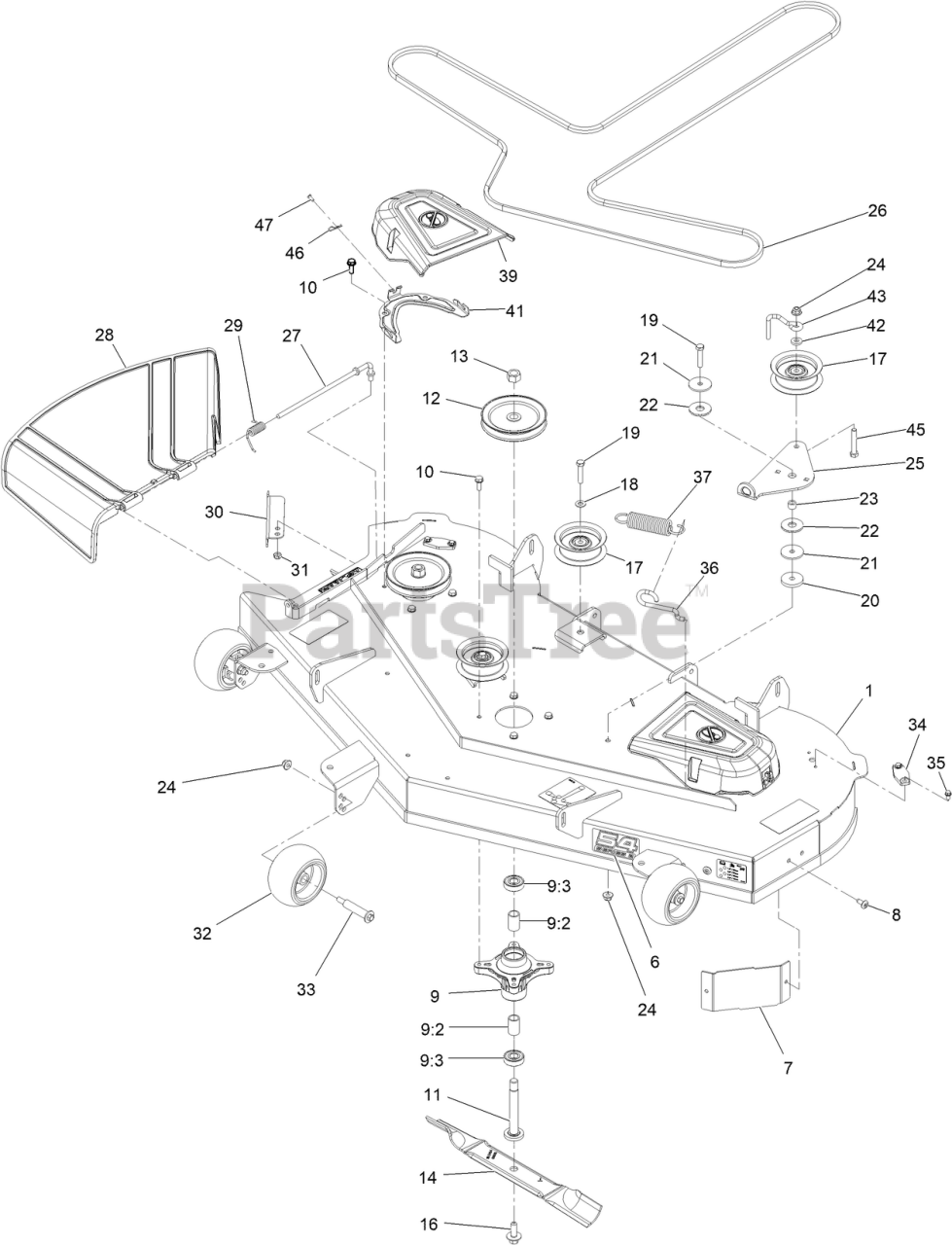

Deck Assembly Parts Diagram

  • Title

1

Exmark 144-5289

DECK ASM-54 4PT

$1029.99

$

Usually ships in 3-6 days

0

6

Exmark 142-5863

DECAL-54 SERIES 2

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 139-2448-03

BAFFLE-CORNER

$23.99

$

In Stock, only 1 left!

0

8

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 8

0

9

Exmark 139-3214

SPINDLE ASM

$78.99

$

Usually ships in 3-6 days

0

9:2

Exmark 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

9:3

Exmark 138-9770

BEARING-BALL

$7.99

$

In Stock, only 4 left!

0

10

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

11

Exmark 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 17

0

12

Exmark 138-7261

PULLEY ASM

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

14

Exmark 115-2454-03

BLADE-HI LIFT

$31.99

$

In Stock, Qty 5

0

16

Exmark 145-0411

Bolt-Blade, Sems

$3.49

$

In Stock, only 3 left!

0

17

Exmark 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

19

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, only 2 left!

0

21

Exmark 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

22

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 138-7262

Arm-Idler

$18.99

$

In Stock, only 1 left!

0

26

Exmark 130-0843

BELT-V
(Superseded to 130-0843-SL)

$109.99

$

Usually ships in 3-6 days

0

27

Exmark 137-2019

ROD-PIVOT

$12.99

$

In Stock, only 1 left!

0

28

Exmark 138-7502

DEFLECTOR-DISCHARGE

$64.99

$

In Stock, Qty 13

0

29

Exmark 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 9

0

30

Exmark 138-9800-03

BAFFLE-CUTOFF

$10.99

$

In Stock, only 3 left!

0

31

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

32

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

33

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

34

Exmark 136-4171

COVER-WASHOUT PORT

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 138-7266

Hook-Return Spring

$5.49

$

In Stock, only 1 left!

0

37

Exmark 138-7264

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

39

Exmark 144-1906

COVER-BELT

$11.99

$

In Stock, only 4 left!

0

41

Exmark 139-3272-03

BRACKET-COVER, BELT

$12.99

$

In Stock, only 1 left!

0

42

Exmark 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0

43

Exmark 138-7270

Belt Guide - Idler

$2.99

$

In Stock, Qty 5

0

45

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Exmark 144-1944

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

47

Exmark 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0
