QZS735GKC54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Caster Tire Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Kohler

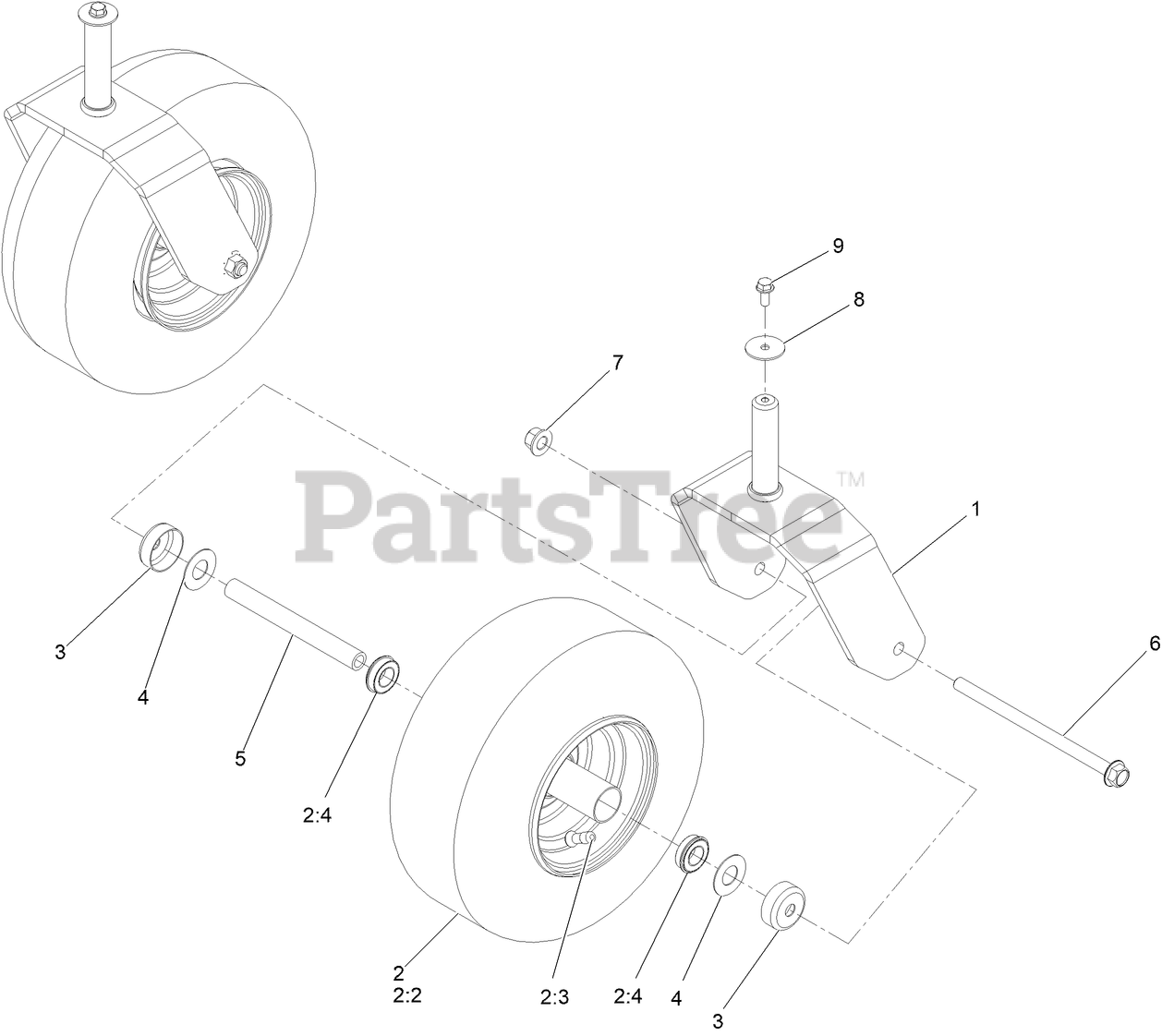

Caster Tire Assembly Parts Diagram

  • Title

1

Exmark 133-4375-01

FORK ASM

$141.99

$

Usually ships in 3-6 days

0

2

Exmark 133-4427

TIRE AND WHEEL ASM

$143.99

$

In Stock, only 1 left!

0

2:2

Exmark 125-5581

TIRE

$102.99

$

Usually ships in 3-6 days

0

2:3

Exmark 232-27

Stem-Valve

$

$

Not available

2:4

Exmark 136-4190

BEARING

$12.99

$

In Stock, only 3 left!

0

2:99

Exmark 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 138-7208

GUARD-SEAL

$2.99

$

In Stock, only 3 left!

0

4

Exmark 136-5590

WASHER

$1.49

$

In Stock, Qty 6

0

5

Exmark 133-4487

SPANNER-WHEEL

$13.99

$

In Stock, only 2 left!

0

6

Exmark 126-5389

SCREW-HHF

$7.99

$

In Stock, only 4 left!

0

7

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

8

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

9

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0
