QZS735GKC54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Kohler (SN: 408644346 - 411294211) (Rev A) (2021) Traction Drive Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Kohler

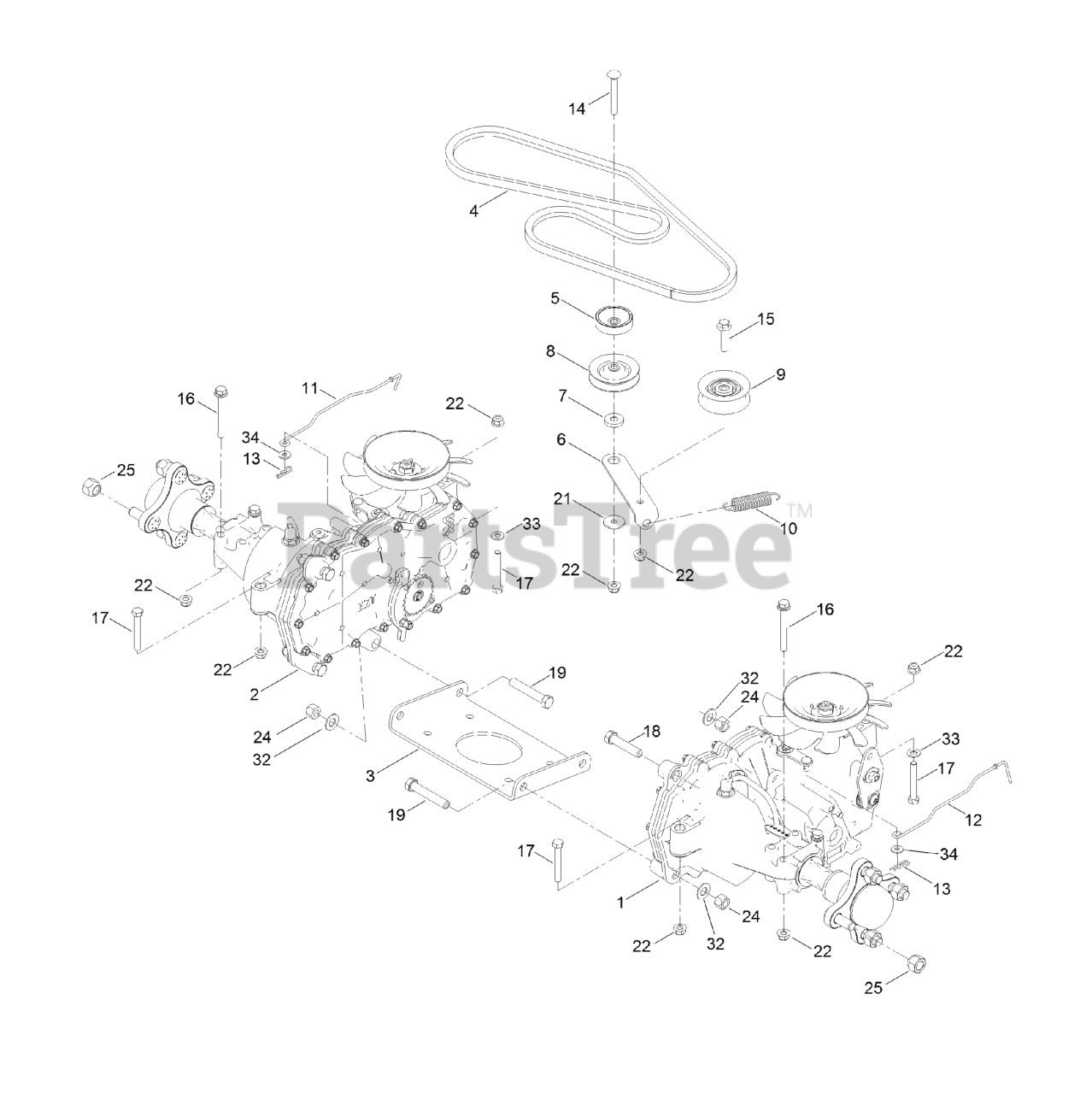

Traction Drive Assembly Parts Diagram

  • Title

1

Exmark 139-7470

LH HYDRO TRANSAXLE ASM

$1472.99

$

Usually ships in 3-6 days

0

2

Exmark 139-7471

RH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

3

Exmark 138-2571-03

CROSSPLATE-HYDRO

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 139-2399

V-BELT

$30.99

$

In Stock, Qty 20+

0

5

Exmark 138-9809

SPACER

$6.49

$

In Stock, Qty 11

0

6

Exmark 138-7276

Arm-Idler

$6.49

$

In Stock, Qty 20+

0

7

Exmark 138-7277

SPACER-ARM, IDLER

$1.99

$

In Stock, Qty 8

0

8

Exmark 68-0030

USE 68-0030-03
(Superseded to 68-0030-03)

$

$

Not available

9

Exmark 138-7597

Pulley-Idler, Flat

$15.99

$

In Stock, Qty 20+

0

10

Exmark 137-7040

Spring-Return, Pedal

$5.49

$

In Stock, Qty 20+

0

11

Exmark 138-7245

Rod- Bypass,RH

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 138-7243

Rod- Bypass,LH

$8.49

$

In Stock, only 1 left!

0

13

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

15

Exmark 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 11

0

16

Exmark 138-7590

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

19

Exmark 324-10

SCREW-HH

$2.49

$

In Stock, Qty 15

0

21

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

32

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0
