QZS735GKC54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Kohler (SN: 408644346 - 411294211) (Rev A) (2021) Motion Control Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Kohler

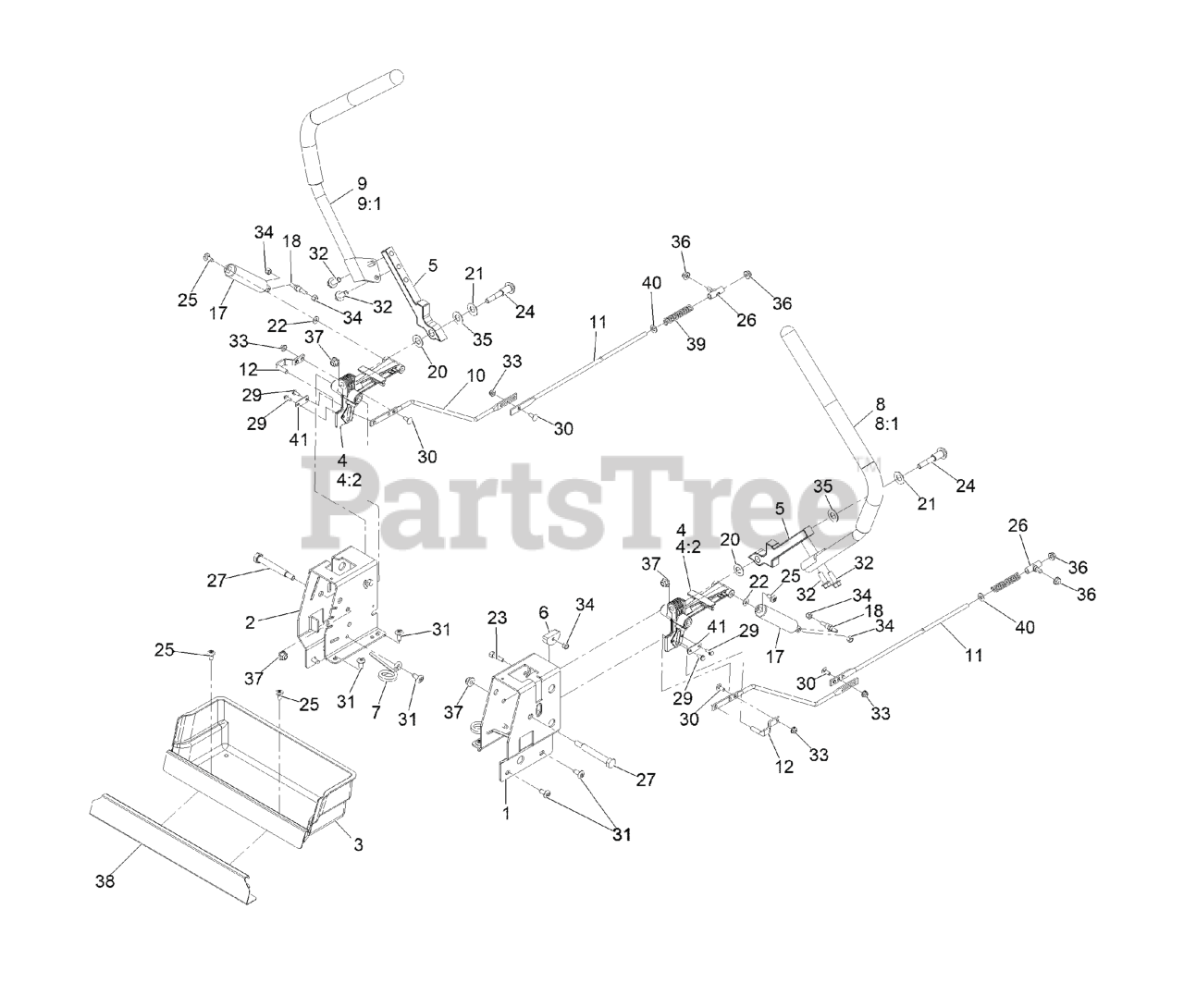

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 138-7598-03

PLATE-CONTROL BOX, LH

$32.99

$

Usually ships in 3-6 days

0

2

Exmark 138-7599-03

PLATE-CONTROL BOX, RH

$32.99

$

Usually ships in 3-6 days

0

3

Exmark 144-1960

BOX, STORAGE

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 119-3470

ACTUATOR ARM ASM

$26.99

$

Usually ships in 3-6 days

0

4:2

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

5

Exmark 133-9299-05

ARM-CONTROL

$47.99

$

In Stock, Qty 6

0

6

Exmark 139-5803

ECCENTRIC

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 138-7539

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 133-7055

HANDLE-CONTROL, LH

$61.99

$

In Stock, only 1 left!

0

8:1

Exmark 121-0726

GRIP

$14.99

$

In Stock, only 4 left!

0

9

Exmark 133-7057

HANDLE-CONTROL, RH

$61.99

$

Usually ships in 3-6 days

0

9:1

Exmark 121-0726

GRIP

$14.99

$

In Stock, only 4 left!

0

10

Exmark 138-2580

ROD-HYDRO, FRONT

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 144-1818

ROD-HYDRO, REAR

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 121-1753

PIN-ROD, HYDRO

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 132-6853

DAMPER-NON CAVITATING

$34.99

$

In Stock, only 2 left!

0

18

Exmark 138-7215

STUD-DAMPER

$2.99

$

In Stock, only 2 left!

0

20

Exmark 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

21

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

22

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

23

Exmark 139-5811

BOLT-PIVOT, ECCENTRIC

$1.99

$

Usually ships in 3-6 days

0

24

Exmark 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 7

0

25

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

26

Exmark 138-7218

Rod-Hydro

$12.99

$

In Stock, only 1 left!

0

27

Exmark 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

29

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

30

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

31

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 8

0

32

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

33

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

35

Exmark 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

36

Exmark 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 139-3280-05

PLATE-KICK

$19.99

$

Usually ships in 3-6 days

0

39

Exmark 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

41

Exmark 119-8948

PLATE-STOP, HYDRO

$2.99

$

Usually ships in 3-6 days

0
