QZS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Deck Assembly Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

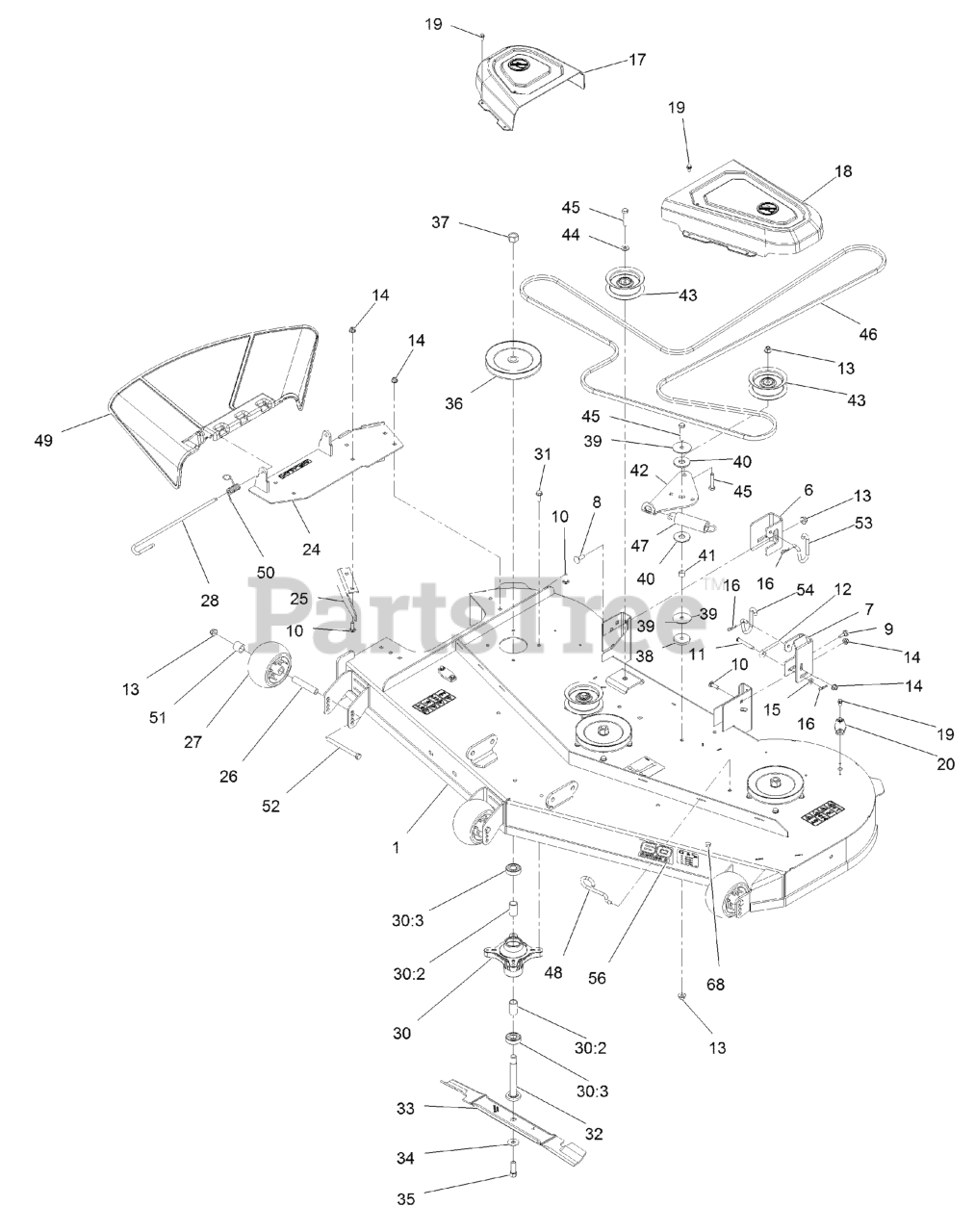

Deck Assembly Parts Diagram

  • Title

1

Exmark 133-4461

60 INCH DECK AND DECAL ASM

$1287.99

$

Usually ships in 3-6 days

0

6

Exmark 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, only 4 left!

0

7

Exmark 131-3935

BRACKET-HANGER, LH

$14.99

$

In Stock, only 2 left!

0

8

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

9

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

11

Exmark 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

12

Exmark 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 1 left!

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Exmark 133-9283

COVER-BELT, RH

$19.99

$

Usually ships in 3-6 days

0

18

Exmark 133-9282

COVER-BELT, LH

$21.99

$

Usually ships in 3-6 days

0

19

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 136-4171

COVER-WASHOUT PORT

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 130-0764

PIVOT-DEFLECTOR

$141.99

$

Usually ships in 3-6 days

0

25

Exmark 119-3388-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

0

26

Exmark 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

27

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

28

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

30

Exmark 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$77.99

$

Usually ships in 3-6 days

0

30:2

Exmark 120-7935

SPACER

$2.99

$

In Stock, Qty 20+

0

30:3

Exmark 136-5441

BEARING-BALL

$7.99

$

In Stock, only 4 left!

0

31

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Exmark 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0

33

Exmark 115-9649-03

BLADE-HI FLOW, 20.5 INCH

$31.99

$

In Stock, Qty 20+

0

34

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Exmark 133-1199

PULLEY

$38.99

$

In Stock, only 1 left!

0

37

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

38

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

Usually ships in 3-6 days

0

39

Exmark 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 9

0

41

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 10

0

42

Exmark 114-8540

ARM-IDLER

$21.99

$

In Stock, only 3 left!

0

43

Exmark 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

44

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Exmark 109-3661

BELT
(Superseded to 109-3661-SL)

$91.99

$

Usually ships in 3-6 days

0

47

Exmark 1-603414

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

48

Exmark 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.49

$

In Stock, only 1 left!

0

49

Exmark 133-1212

DEFLECTOR-DISCHARGE

$77.99

$

In Stock, Qty 5

0

50

Exmark 121-2983

SPRING-TORSION

$5.49

$

In Stock, Qty 8

0

51

Exmark 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

0

52

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

53

Exmark 131-8734

LINK-RETENTION, DECK (RH)

$7.99

$

In Stock, only 1 left!

0

54

Exmark 131-4131

LINK-RETENTION, DECK (LH)

$7.99

$

In Stock, only 4 left!

0

56

Exmark 136-4181

DECAL-SERIES 2 60

$8.99

$

Usually ships in 3-6 days

0

68

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
