QZS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

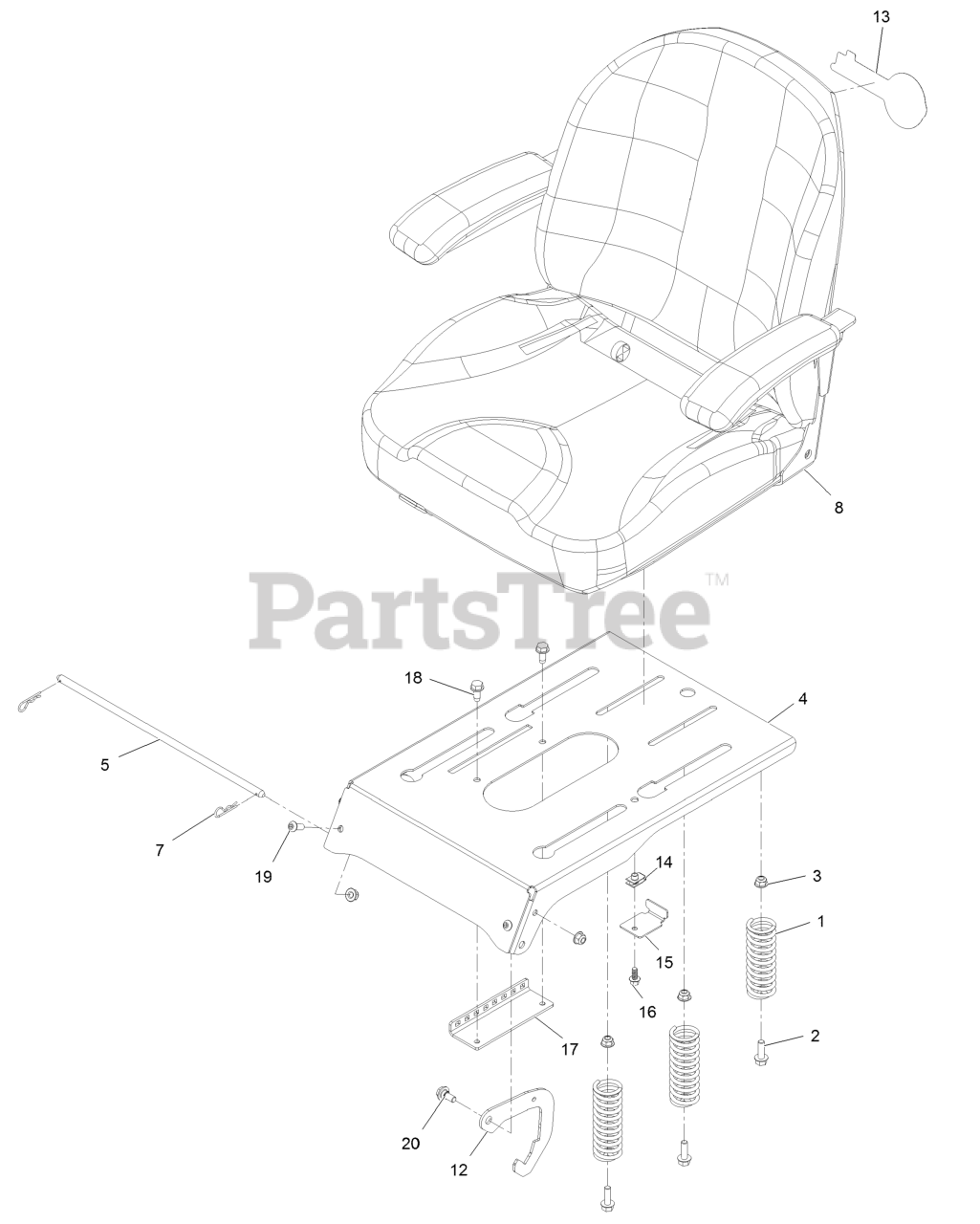

Seat Assembly Parts Diagram

  • Title

1

Exmark 92-7054

Spring-Compression

$20.99

$

In Stock, Qty 10

0

2

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 14

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 136-5571-03

Pan-Seat, Deluxe

$67.99

$

Usually ships in 3-6 days

0

5

Exmark 119-3433

Rod-Pivot, Narrow

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 3290-250

Pin-Cotter

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 131-4148

Seat ASM, Exmark

$710.99

$

Usually ships in 3-6 days

0

12

Exmark 132-9353

Latch-Seat
(Superseded to 138-7250)

$8.49

$

In Stock, only 1 left!

0

13

Exmark 135-3747

Decal, Exmark Logo

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

15

Exmark 131-1038

Bracket-Stop, Seat
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 99-6810

Screw-HH 1/4-20 X 5/8

$3.49

$

In Stock, only 1 left!

0

17

Exmark 131-4008-03

Bracket-Latch, Seat

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

20

Exmark 19-1470

Screw-Shoulder

$3.99

$

In Stock, Qty 5

0
