QZS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) RH Transaxle Assembly No. 133-4419 Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

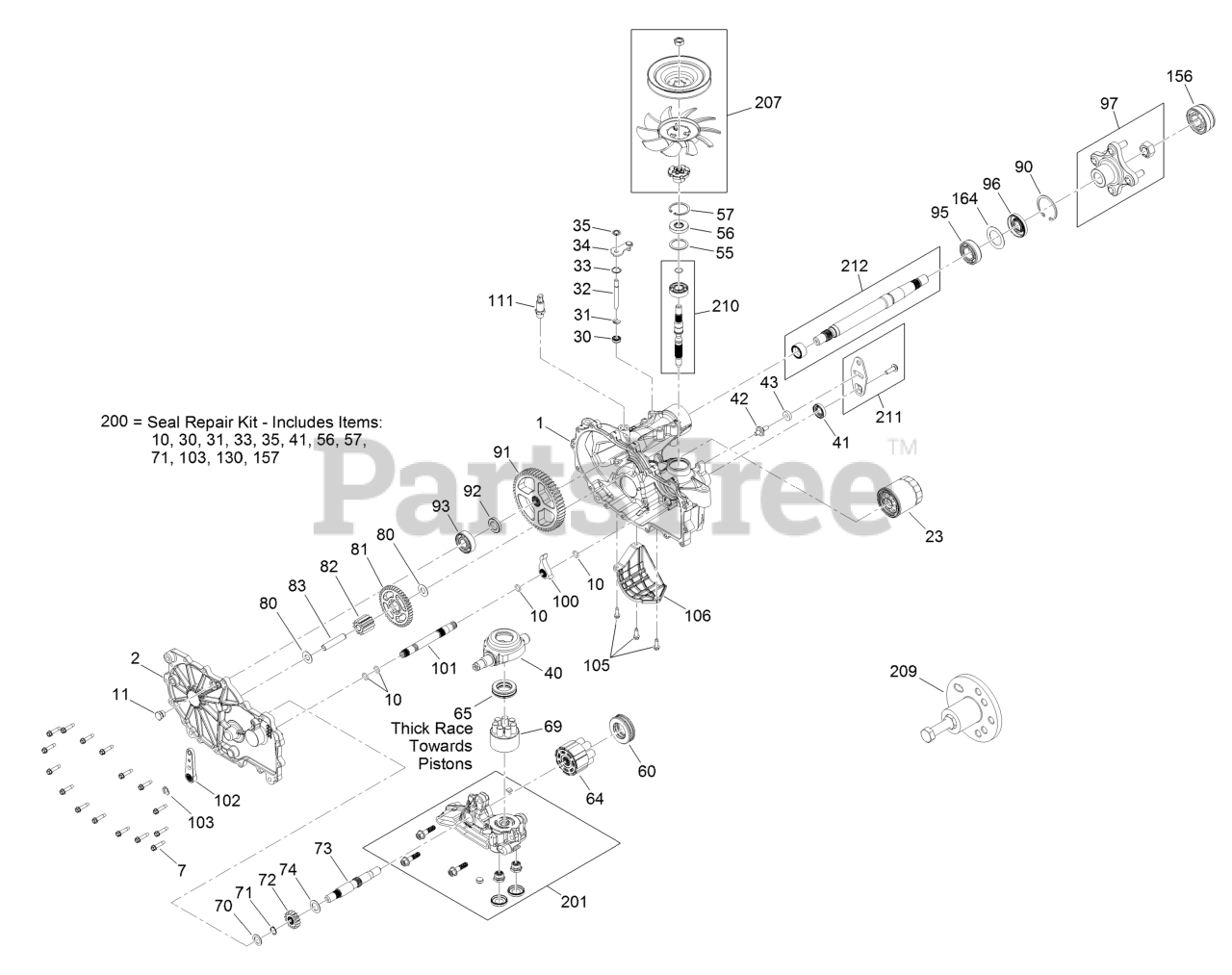

RH Transaxle Assembly No. 133-4419 Parts Diagram

  • Title

1

Exmark 121-5748

Main Housing Kit

$461.99

$

Usually ships in 3-6 days

0

2

Exmark 132-0938

LH Side Cover Kit

$

$

Not available

7

Exmark 117-5359

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 114-1678

O-Ring

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 135-1140

Plug-Straight
(Superseded to 353-508)

$8.49

$

In Stock, only 1 left!

0

23

Exmark 109-3321

Element-Oil Filter, HYD

$31.99

$

In Stock, only 4 left!

0

30

Exmark 106-8676

Seal-Lip
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

31

Exmark 106-8677

Ring-Retaining, External

$8.99

$

In Stock, only 1 left!

0

32

Exmark 114-1685

Rod-Bypass

$35.99

$

Usually ships in 3-6 days

0

33

Exmark 106-8679

Ring-Retaining, Internal

$9.49

$

Usually ships in 3-6 days

0

34

Exmark 107-2490

Arm-Bypass

$58.99

$

Usually ships in 3-6 days

0

35

Exmark 106-8681

Ring-Retaining, External

$8.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5304

Swashplate-Trunnion

$194.99

$

Usually ships in 3-6 days

0

41

Exmark 104-5313

Seal-Lip

$25.99

$

In Stock, only 1 left!

0

42

Exmark 104-2116

Stud

$38.99

$

Usually ships in 3-6 days

0

43

Exmark 112-9853

Puck-Friction

$7.99

$

In Stock, only 2 left!

0

55

Exmark 104-5308

Spacer

$9.49

$

Usually ships in 3-6 days

0

56

Exmark 104-5310

Seal-Lip

$36.99

$

In Stock, only 1 left!

0

57

Exmark 104-5309

Ring-Retaining

$12.99

$

In Stock, only 1 left!

0

60

Exmark 112-4154

Bearing-Thrust

$103.99

$

Usually ships in 3-6 days

0

64

Exmark 114-1689

Motor Cylinder Block Kit
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

65

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

69

Exmark 110-8561

Pump Block ASM

$347.99

$

Usually ships in 3-6 days

0

70

Exmark 104-5339

Washer-Flat

$6.99

$

Usually ships in 3-6 days

0

71

Exmark 104-5340

Ring-Retaining

$7.99

$

Usually ships in 3-6 days

0

72

Exmark 121-5749

Gear-16T

$13.99

$

Usually ships in 3-6 days

0

73

Exmark 114-1691

Shaft-Motor

$169.99

$

Usually ships in 3-6 days

0

74

Exmark 104-5360

Washer

$7.99

$

Usually ships in 3-6 days

0

80

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

81

Exmark 125-0000

Gear-43T

$62.99

$

Usually ships in 3-6 days

0

82

Exmark 114-1693

Gear-11T

$28.99

$

Usually ships in 3-6 days

0

83

Exmark 104-5329

Pin-Jackshaft

$112.99

$

Usually ships in 3-6 days

0

90

Exmark 104-2169

Ring-Retaining

$19.99

$

Usually ships in 3-6 days

0

91

Exmark 114-1694

Gear-54T

$139.99

$

In Stock, only 2 left!

0

92

Exmark 120-7975

Spacer

$6.49

$

Usually ships in 3-6 days

0

93

Exmark 137-2004

Bearing Kit
(Superseded to 135-1361)

$38.99

$

Usually ships in 3-6 days

0

95

Exmark 109-8110

Input Bearing Kit
(Superseded to 104-2143)

$41.99

$

Usually ships in 3-6 days

0

96

Exmark 130-8478

Seal-Lip
(Superseded to 104-2144)

$49.99

$

In Stock, only 1 left!

0

97

Exmark 109-5939

Hub Kit

$103.99

$

In Stock, only 3 left!

0

100

Exmark 114-1697

Pawl-Brake

$17.99

$

Usually ships in 3-6 days

0

101

Exmark 114-1698

Shaft-Brake, Inboard

$140.99

$

Usually ships in 3-6 days

0

102

Exmark 125-0021

Handle-Brake

$14.99

$

In Stock, only 1 left!

0

103

Exmark 131-0906

Ring-Retaining, EXT

$6.49

$

Usually ships in 3-6 days

0

105

Exmark 104-2120

Screw

$7.99

$

In Stock, only 1 left!

0

106

Exmark 120-7979

Guard-Filter, LH

$34.99

$

In Stock, only 1 left!

0

111

Exmark 109-3278

Adapter-Straight

$124.99

$

Usually ships in 3-6 days

0

156

Exmark 115-5057

Cover-Nut, Axle

$18.99

$

Usually ships in 3-6 days

0

164

Exmark 121-5745

Spacer

$10.99

$

Usually ships in 3-6 days

0

200

Exmark 109-3537

Seal Kit
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0

201

Exmark 125-0036

Center Section Kit

$352.99

$

Usually ships in 3-6 days

0

207

Exmark 137-2006

Fan Pulley Kit
(Superseded to 135-7343)

$90.99

$

In Stock, only 1 left!

0

209

Exmark 114-8467

Puller-Hub, 4 Bolt
(Superseded to 130-8482)

$383.99

$

Usually ships in 3-6 days

0

210

Exmark 114-8468

Input Shaft Kit

$173.99

$

Usually ships in 3-6 days

0

211

Exmark 117-5362

Control Arm Kit

$29.99

$

In Stock, only 1 left!

0

212

Exmark 114-8470

Axle Shaft Kit

$265.99

$

Usually ships in 3-6 days

0
