QZS708GEM54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 408644346 - 411294211) (Rev A) (2021) Main Frame Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Exmark 708

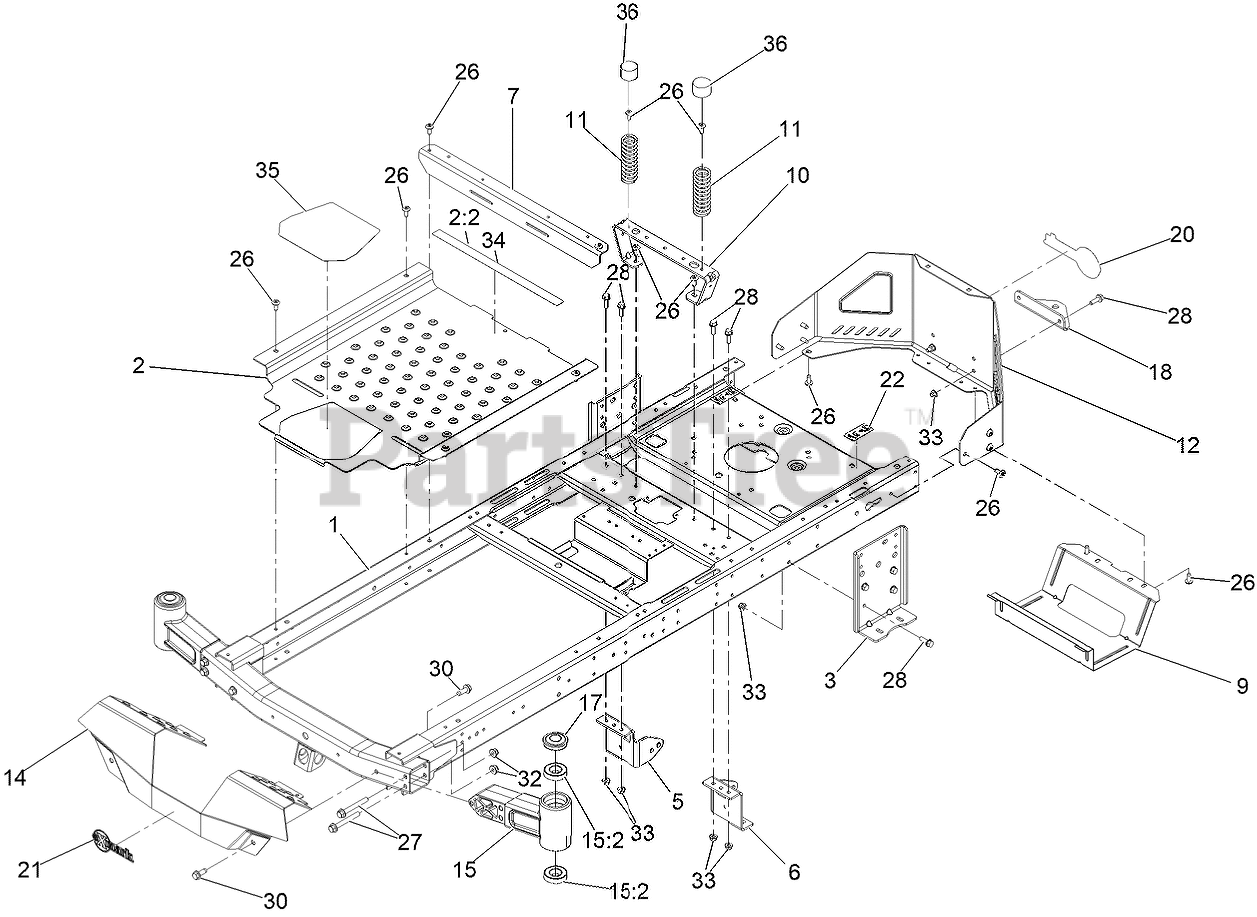

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 137-9820-05

FRAME ASM - RIVETED/WELDED

$462.99

$

Usually ships in 3-6 days

0

2

Exmark 144-1927

Pan-Floor ASM

$186.99

$

Usually ships in 3-6 days

0

2:2

Exmark 142-5846

DECAL-WARNING

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 138-7520-01

PLATE-MOUNT, HYDRO

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT

$17.99

$

In Stock, only 1 left!

0

6

Exmark 139-3211-01

Mount-Hydro, Front (Left)

$15.99

$

Usually ships in 3-6 days

0

7

Exmark 138-9791-05

BRACE-CROSS

$23.99

$

Usually ships in 3-6 days

0

9

Exmark 138-0867-03

GUARD-MUFFLER

$35.99

$

Usually ships in 3-6 days

0

10

Exmark 138-6036-03

SUPPORT-SEAT

$21.99

$

Usually ships in 3-6 days

0

11

Exmark 138-2548

SPRING-COMPRESSION

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 138-9820-05

GUARD-ENGINE

$104.99

$

Usually ships in 3-6 days

0

14

Exmark 138-9827-01

FOOTREST

$74.99

$

Usually ships in 3-6 days

0

15

Exmark 142-5809

AXLE-STUB

$98.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-3678

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

17

Exmark 138-7200

Cap-Grease

$5.49

$

In Stock, only 2 left!

0

18

Exmark 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 2 left!

0

20

Exmark 142-5858

DECAL-EXMARK LOGO

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 142-5841

DECAL-EXMARK LOGO

$3.99

$

Usually ships in 3-6 days

0

22

Exmark 142-5854

DECAL-BYPASS

$1.99

$

Usually ships in 3-6 days

0

26

Exmark 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

27

Exmark 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

28

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

30

Exmark 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

34

Exmark 142-5846

DECAL-WARNING

$6.99

$

Usually ships in 3-6 days

0

35

Exmark 139-3220

TREAD-STEP

$8.99

$

Usually ships in 3-6 days

0

36

Exmark 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0
