QZS708GEM54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 408644346 - 411294211) (Rev A) (2021) Electrical Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Exmark 708

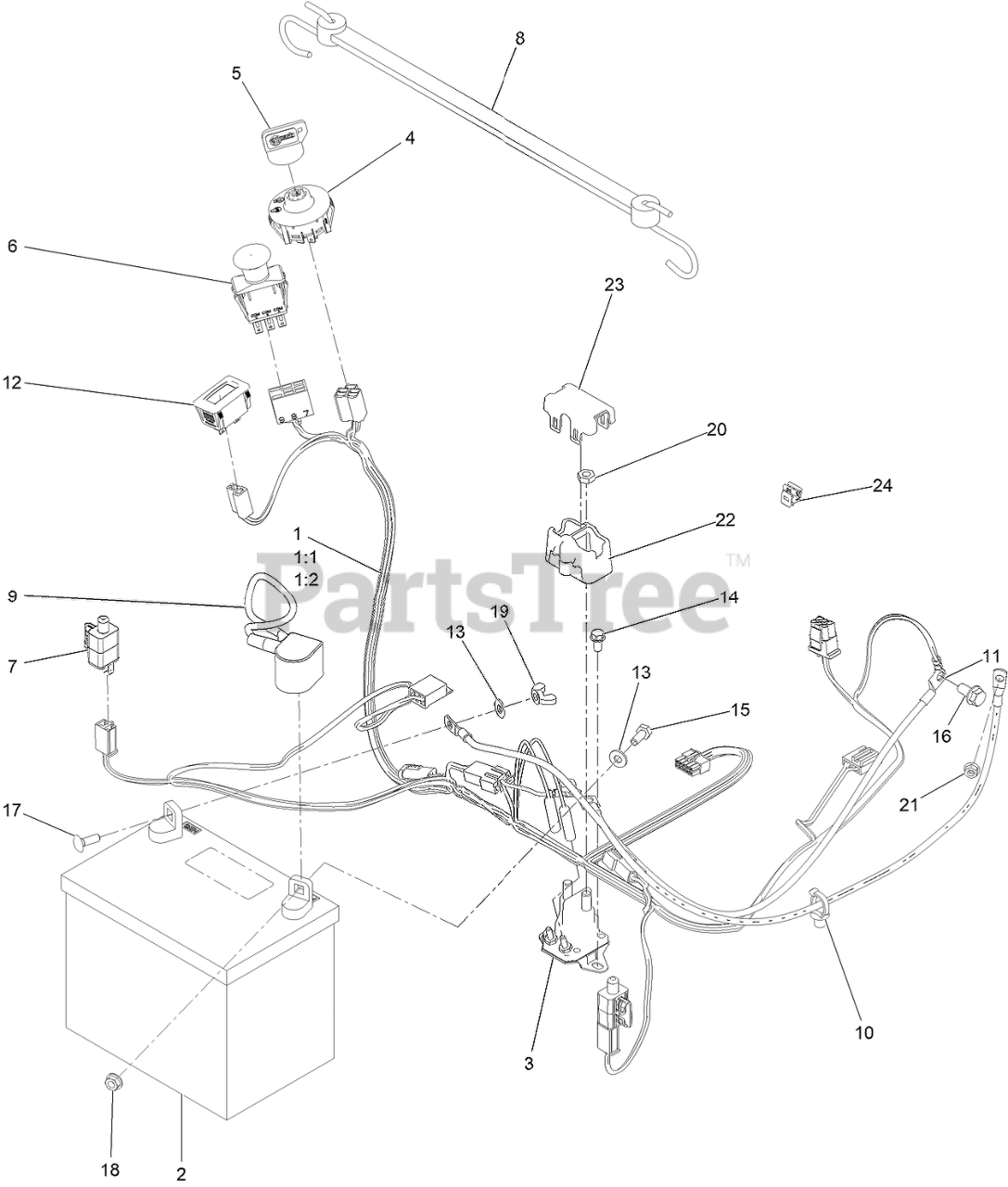

Electrical Assembly Parts Diagram

  • Title

1

Exmark 138-2521

HARNESS-WIRE

$120.99

$

Usually ships in 3-6 days

0

1:1

Exmark 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

1:2

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

2

Exmark 105-1692

BATTERY

$

$

Not available

3

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

4

Exmark 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

5

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

6

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

7

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

8

Exmark 139-2381

STRAP-RUBBER

$6.99

$

In Stock, only 1 left!

0

9

Exmark 140-2713

CABLE-BATTERY, POS

$12.99

$

Usually ships in 3-6 days

0

10

Exmark 139-2431

CABLE-BATTERY, RED (8 GAUGE)

$12.99

$

In Stock, only 1 left!

0

11

Exmark 110-6793

CABLE-BATTERY, BLACK

$29.99

$

Usually ships in 3-6 days

0

12

Exmark 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

13

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

20

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

21

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 140-2080

COVER-SOLENOID

$2.99

$

In Stock, only 1 left!

0

23

Exmark 140-2081

CAP-SOLENOID

$2.99

$

In Stock, only 2 left!

0

24

Exmark 32180-418

CLIP-HARNESS

$5.49

$

Usually ships in 3-6 days

0
