QZS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Transaxle Drive Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

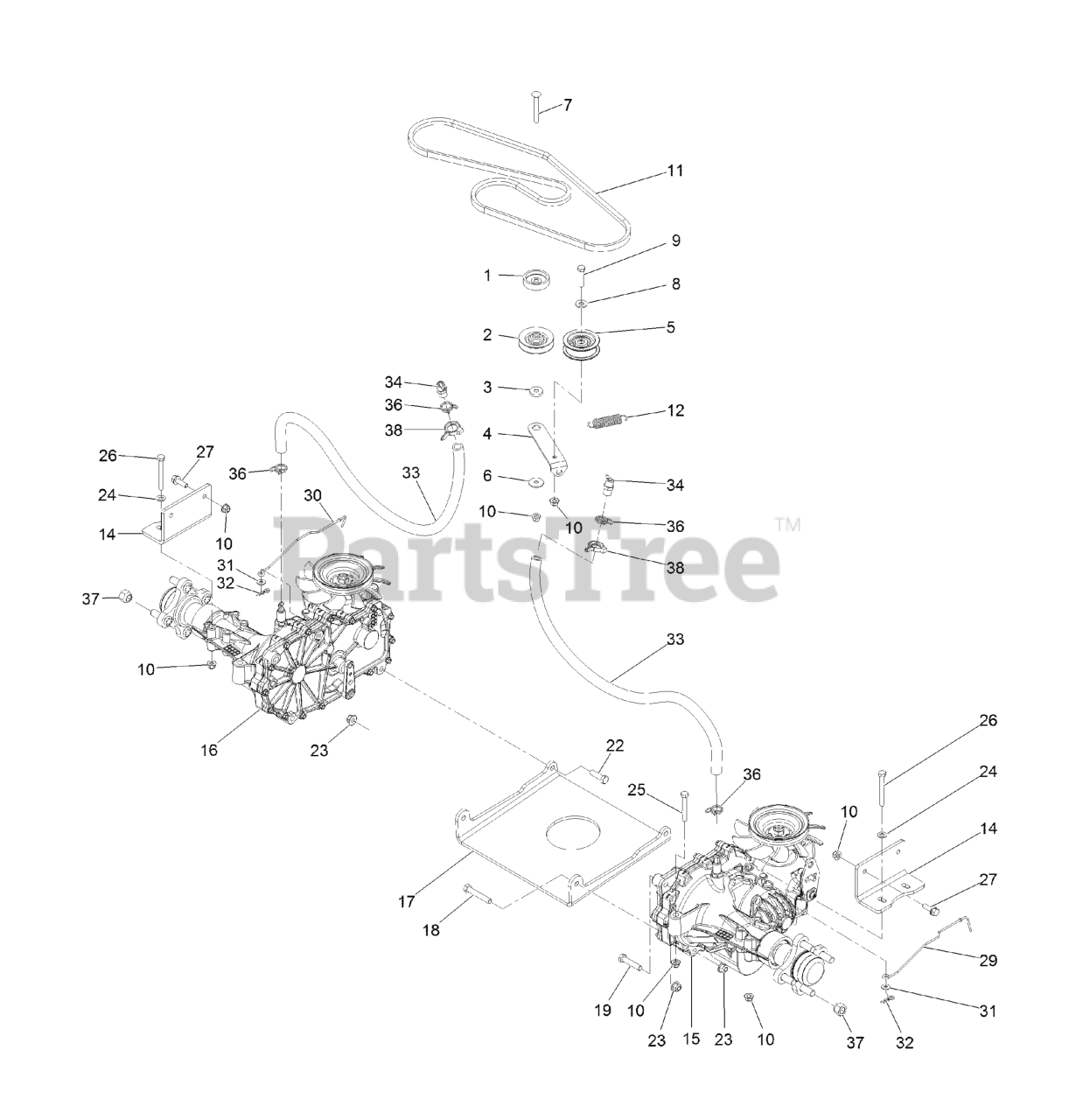

Transaxle Drive Parts Diagram

  • Title
1

$11.99

$

In Stock, Qty 20+

0

2

Exmark 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 20+

0

3

Exmark 119-3327

SPACER-ARM, IDLER

$3.99

$

In Stock, Qty 20+

0

4

Exmark 138-7276

Arm-Idler

$6.49

$

In Stock, Qty 20+

0

5

Exmark 138-7597

Pulley-Idler, Flat

$15.99

$

In Stock, Qty 20+

0

6

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

8

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 130-6976

V-BELT
(Superseded to 130-6976-SL)

$37.99

$

In Stock, Qty 20+

0

12

Exmark 137-7040

Spring-Return, Pedal

$5.49

$

In Stock, Qty 20+

0

14

Exmark 121-0745-01

MOUNT-HYDRO

$34.99

$

Usually ships in 3-6 days

0

15

Exmark 130-6960

LH HYDRO TRANSMISSION ASM
(Superseded to 140-5190)

$1659.99

$

Usually ships in 3-6 days

0

16

Exmark 130-6961

RH HYDRO TRANSMISSION ASM
(Superseded to 140-5191)

$1507.99

$

Usually ships in 3-6 days

0

17

Exmark 130-0718-01

PLATE-CROSS, HYDRO

$71.99

$

Usually ships in 3-6 days

0

18

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

27

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Exmark 130-7048

ROD-BYPASS, LH

$8.99

$

Usually ships in 3-6 days

0

30

Exmark 130-7047

ROD-BYPASS, RH

$8.99

$

Usually ships in 3-6 days

0

31

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

33

Exmark 136-4182

HOSE-HYDRO

$26.99

$

In Stock, only 2 left!

0

34

Exmark 136-4183

BREATHER KIT

$15.99

$

In Stock, only 2 left!

0

36

Exmark 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

37

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

38

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0
