QZS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) LH Transaxle Assembly No. 130-6960 Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

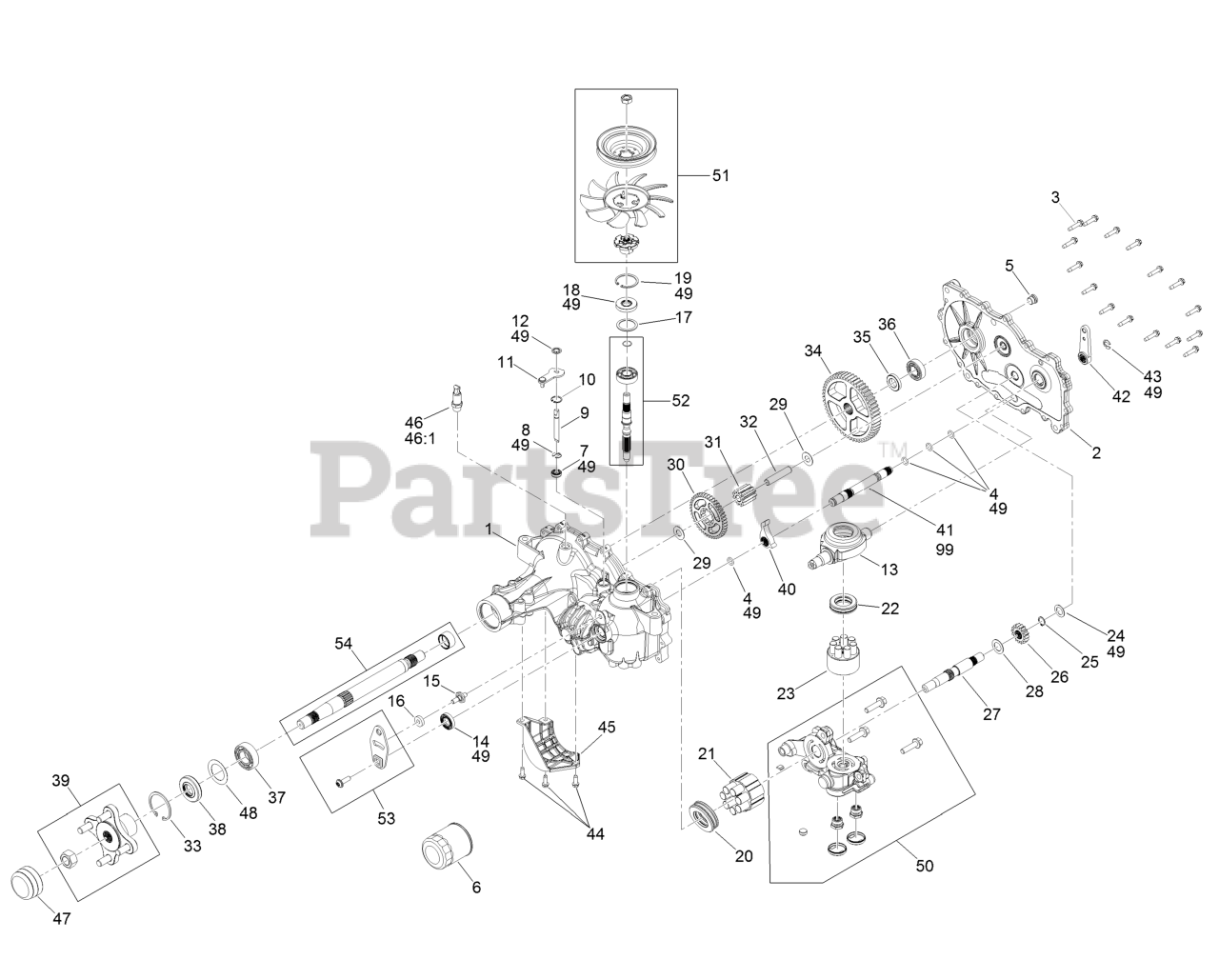

LH Transaxle Assembly No. 130-6960 Parts Diagram

  • Title
1

Exmark 125-0037

Main Housing Kit

$

$

Not available

2

Exmark 132-0939

RH Side Cover Kit

$302.99

$

Usually ships in 3-6 days

0

3

Exmark 117-5359

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

4

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 104-2189

Plug-Thread, Straight

$26.99

$

In Stock, only 2 left!

0

6

Exmark 109-3321

Filter-Hydraulic

$31.99

$

In Stock, only 4 left!

0

7

Exmark 106-8676

Seal-Lip
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 106-8677

Ring-Retaining, External

$8.99

$

In Stock, only 1 left!

0

9

Exmark 114-1685

Rod-Bypass

$35.99

$

Usually ships in 3-6 days

0

10

Exmark 106-8679

Ring-Retaining, Internal

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 112-9852

Arm-Bypass
(Superseded to 107-2489)

$83.99

$

Usually ships in 3-6 days

0

12

Exmark 106-8681

Ring-Retaining, External

$8.99

$

Usually ships in 3-6 days

0

13

Exmark 104-5304

Swashplate-Trunnion

$194.99

$

Usually ships in 3-6 days

0

14

Exmark 104-5313

Seal-Lip

$25.99

$

In Stock, only 1 left!

0

15

$38.99

$

Usually ships in 3-6 days

0

16

Exmark 112-9853

Puck-Friction

$7.99

$

In Stock, only 2 left!

0

17

$9.49

$

Usually ships in 3-6 days

0

18

Exmark 104-5310

Seal-Lip

$36.99

$

In Stock, only 1 left!

0

19

Exmark 104-5309

Ring-Retaining

$12.99

$

In Stock, only 1 left!

0

20

Exmark 112-4154

Bearing-Thrust

$103.99

$

Usually ships in 3-6 days

0

21

Exmark 114-1689

Motor Cylinder Block Kit
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

22

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

23

Exmark 110-8561

Pump Block ASM

$347.99

$

Usually ships in 3-6 days

0

24

Exmark 104-5339

Washer-Flat

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 104-5340

Ring-Retaining

$7.99

$

Usually ships in 3-6 days

0

26

Exmark 121-5749

Gear-16T

$13.99

$

Usually ships in 3-6 days

0

27

Exmark 114-1691

Shaft-Motor

$169.99

$

Usually ships in 3-6 days

0

28

$7.99

$

Usually ships in 3-6 days

0

29

$6.49

$

Usually ships in 3-6 days

0

30

Exmark 125-0000

Gear-43T

$62.99

$

Usually ships in 3-6 days

0

31

Exmark 114-1693

Gear-11T

$28.99

$

Usually ships in 3-6 days

0

32

Exmark 104-5329

Pin-Jackshaft

$112.99

$

Usually ships in 3-6 days

0

33

Exmark 104-2169

Ring-Retaining

$19.99

$

Usually ships in 3-6 days

0

34

Exmark 114-1694

Gear-54T

$139.99

$

In Stock, only 2 left!

0

35

$6.49

$

Usually ships in 3-6 days

0

36

Exmark 126-0789

Bearing-Ball

$15.99

$

Usually ships in 3-6 days

0

37

Exmark 120-7976

Bearing-Ball
(Superseded to 130-8477)

$25.99

$

Usually ships in 3-6 days

0

38

$49.99

$

In Stock, only 1 left!

0

39

Exmark 109-5939

Hub Kit

$103.99

$

In Stock, only 3 left!

0

40

Exmark 114-1697

Pawl-Brake

$17.99

$

Usually ships in 3-6 days

0

41

Exmark 114-1698

Shaft-Brake, Inboard

$140.99

$

Usually ships in 3-6 days

0

42

Exmark 125-0021

Handle-Brake

$14.99

$

In Stock, only 1 left!

0

43

Exmark 131-0906

Ring-Retaining, EXT

$6.49

$

Usually ships in 3-6 days

0

44

$7.99

$

In Stock, only 1 left!

0

45

Exmark 120-7981

Guard-Filter, RH

$34.99

$

Usually ships in 3-6 days

0

46

Exmark 109-3278

Adapter-Straight

$124.99

$

Usually ships in 3-6 days

0

46:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 9

0

47

Exmark 115-5057

Cover-Nut, Axle

$18.99

$

Usually ships in 3-6 days

0

48

$10.99

$

Usually ships in 3-6 days

0

49

Exmark 109-3537

Seal Kit
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0

50

Exmark 132-0940

RH Center Section Kit

$352.99

$

Usually ships in 3-6 days

0

51

Exmark 121-5746

Fan Pulley Kit
(Superseded to 135-7349)

$90.99

$

In Stock, only 3 left!

0

52

Exmark 114-8468

Input Shaft Kit

$173.99

$

Usually ships in 3-6 days

0

53

Exmark 117-5362

Control Arm Kit

$29.99

$

In Stock, only 1 left!

0

54

Exmark 114-8470

Axle Shaft Kit

$265.99

$

Usually ships in 3-6 days

0

99

Exmark 135-3604

Brake Shaft Seal Kit

$167.99

$

Usually ships in 3-6 days

0
