QZS691CKA50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki 691 (SN: 404314159 - 406294344) (2019) Seat Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki 691

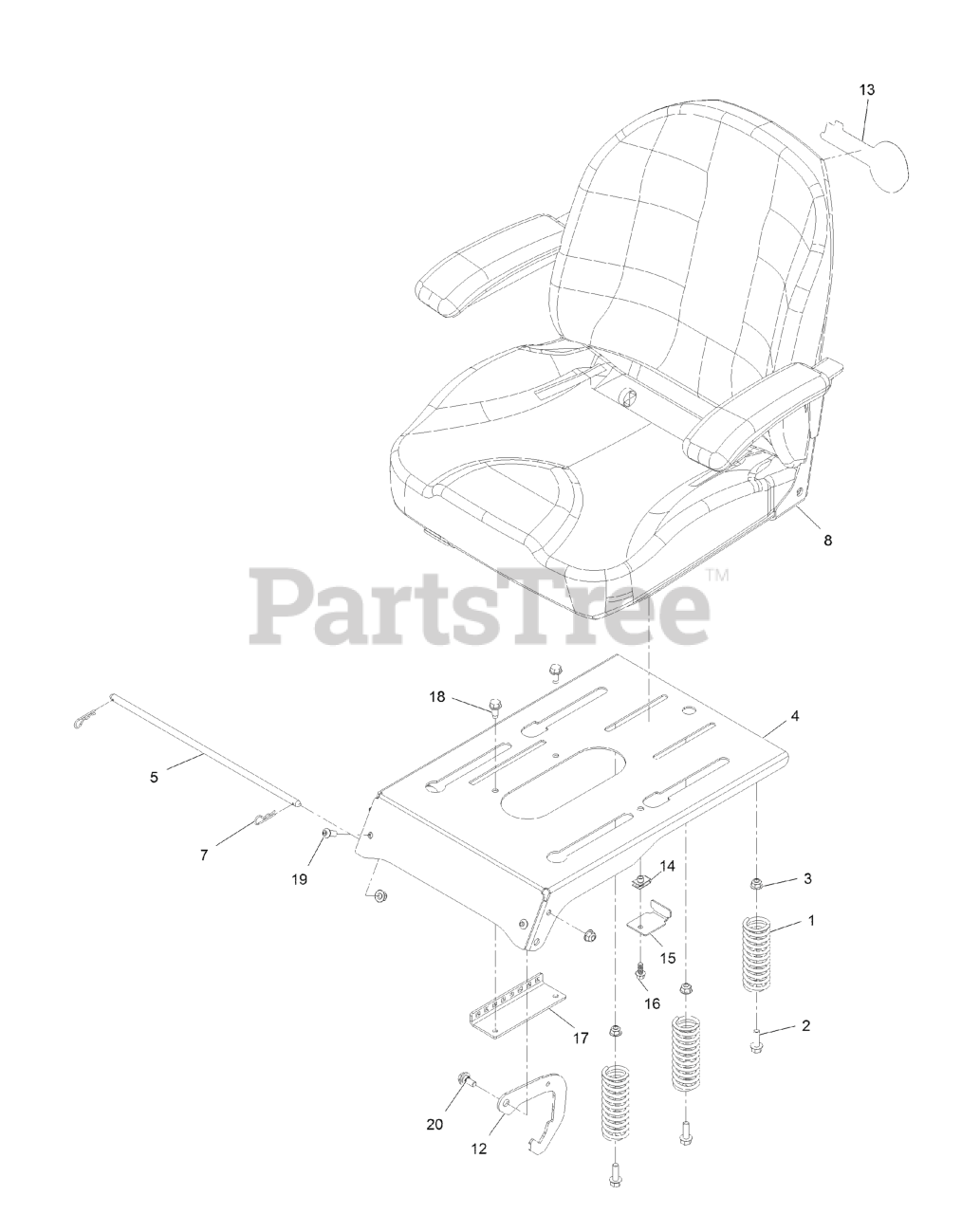

Seat Assembly Parts Diagram

  • Title

1

Exmark 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

2

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 136-5571-03

PAN-SEAT, DELUXE

$67.99

$

Usually ships in 3-6 days

0

5

Exmark 119-3433

ROD-PIVOT, NARROW

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 131-4148

SEAT ASM, EXMARK

$710.99

$

Usually ships in 3-6 days

0

12

Exmark 138-7250

Seat Latch

$8.49

$

In Stock, only 1 left!

0

13

Exmark 135-3747

DECAL-EXMARK LOGO

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Exmark 138-7214

Bracket-Stop, Seat

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

17

Exmark 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

20

Exmark 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0
