QZS691CKA50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki 691 (SN: 404314159 - 406294344) (2019) Fuel Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki 691

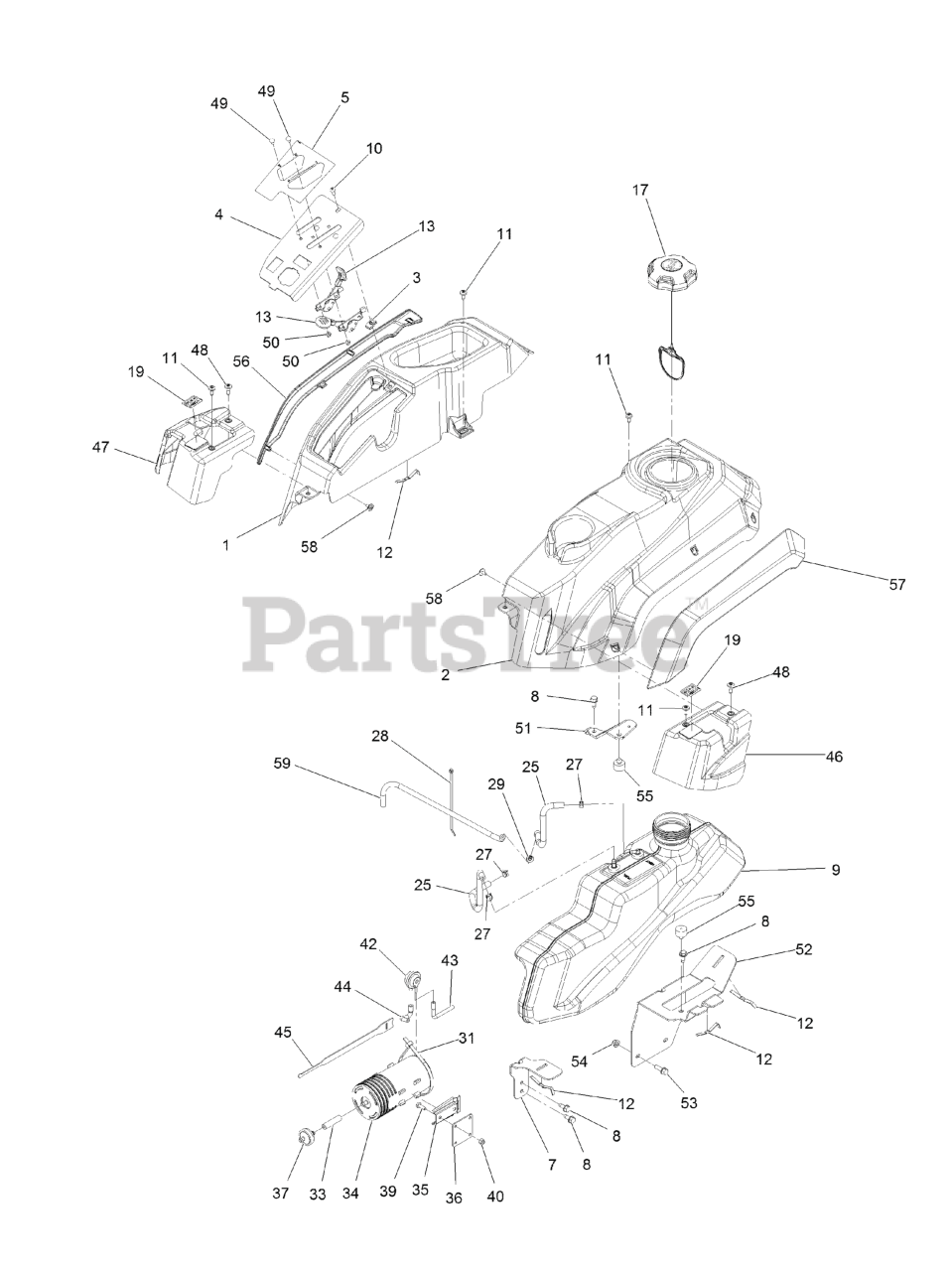

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-1392

POD-RH, NARROW

$78.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1138

POD-LH, NARROW

$78.99

$

Usually ships in 3-6 days

0

3

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Exmark 135-1402-03

PANEL-CONTROL, NARROW

$29.99

$

In Stock, only 1 left!

0

5

Exmark 135-2470

DECAL-CONTROL

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 135-1564-03

SUPPORT-TANK

$8.99

$

Usually ships in 3-6 days

0

8

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-4520

TANK, FUEL

$247.99

$

Usually ships in 3-6 days

0

10

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Exmark 609830

SPRING

$5.49

$

In Stock, only 3 left!

0

13

Exmark 126-6944

CABLE-CONTROL, THROTTLE

$36.99

$

In Stock, only 1 left!

0

13

Exmark 126-6945

CABLE-CONTROL, CHOKE

$36.99

$

In Stock, only 1 left!

0

17

Exmark 137-4119

CAP-FUEL, RATCHETING

$28.99

$

In Stock, Qty 11

0

19

Exmark 135-2310

DECAL-MOTION CONTROL

$3.49

$

Usually ships in 3-6 days

0

25

Exmark 109-0294

HOSE-FUEL

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0297

HOSE-FUEL

$8.49

$

In Stock, only 1 left!

0

27

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

28

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

29

Exmark 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, only 2 left!

0

31

Exmark 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 99-9415

HOSE-FUEL

$3.99

$

In Stock, Qty 5

0

34

Exmark 117-1221

CANISTER-CARBON, 800CC

$80.99

$

In Stock, only 1 left!

0

35

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

36

Exmark 119-8992-03

PLATE-ADAPTER

$9.49

$

Usually ships in 3-6 days

0

37

Exmark 115-7854

FILTER-FUEL, INLINE

$7.99

$

In Stock, Qty 11

0

39

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Exmark 116-2232

VALVE-CONTROL, VACUUM

$35.99

$

In Stock, only 3 left!

0

43

Exmark 119-8501

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

44

Exmark 119-8502

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

45

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$19.99

$

Usually ships in 3-6 days

0

46

Exmark 135-1341

Cover, Motion Control LH

$

$

Currently unavailable

47

Exmark 135-1342

Cover, Motion Control RH

$

$

Currently unavailable

48

Exmark 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

49

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

50

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Exmark 135-0868-03

BRACKET-CLAMP

$11.99

$

Usually ships in 3-6 days

0

52

Exmark 135-1563-03

BRACKET-SUPPORT TANK

$44.99

$

Usually ships in 3-6 days

0

53

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

54

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

55

Exmark 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 126-4741

FENDER-RH

$20.99

$

Usually ships in 3-6 days

0

57

Exmark 126-4742

FENDER-LH

$20.99

$

In Stock, Qty 5

0

58

Exmark 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 8

0

59

Exmark 110-8751

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0
