QZE725GKC50200 - Exmark 50" Quest E-Series Zero-Turn Mower, Kohler KT725 (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kohler KT725

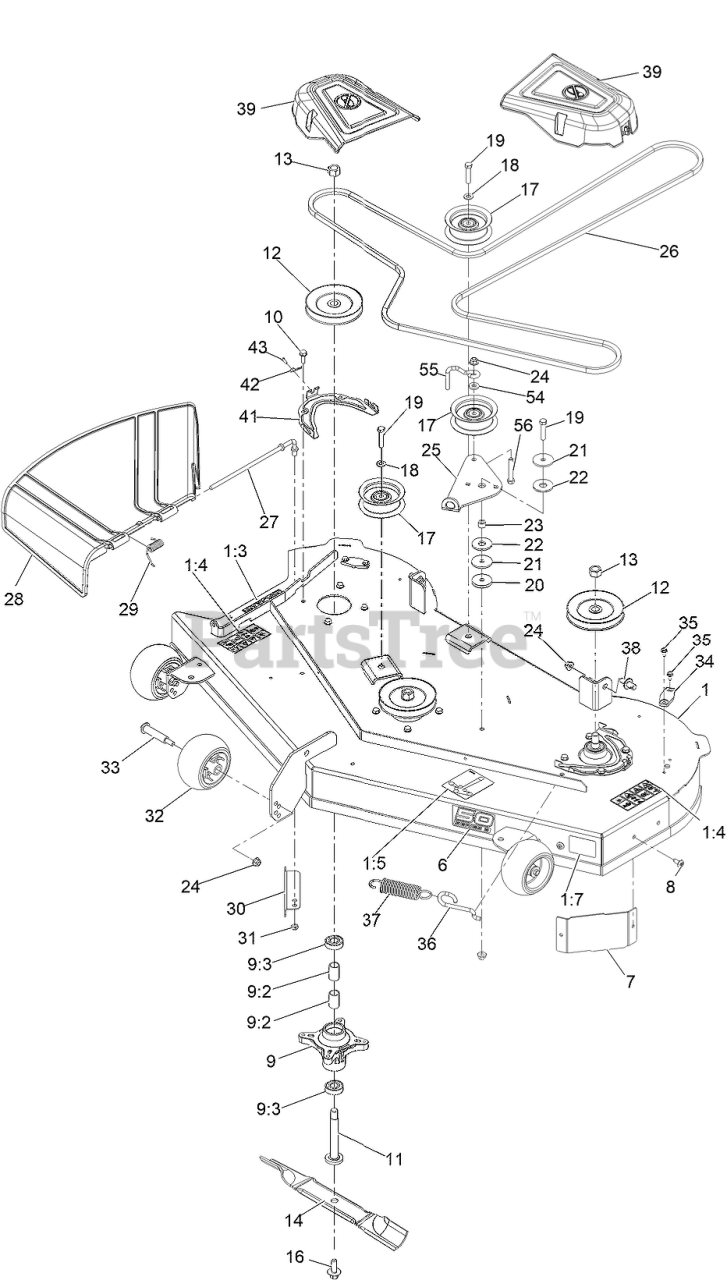

Deck Assembly Parts Diagram

  • Title

1

Exmark 138-9764

50 INCH DECK AND DECAL ASM

$1033.99

$

Usually ships in 3-6 days

0

1:3

Exmark 130-0731

Decal-Danger

$3.99

$

Usually ships in 3-6 days

0

1:4

Exmark 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 13

0

1:5

Exmark 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

1:7

Exmark 112-9840

DECAL-SCALP, ANTI

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 126-7156

Decal-50 Series 2

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 139-2448-03

BAFFLE-CORNER

$23.99

$

In Stock, only 1 left!

0

8

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 8

0

9

Exmark 139-3214

SPINDLE ASM

$78.99

$

Usually ships in 3-6 days

0

9:2

Exmark 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

9:3

Exmark 138-9770

BEARING-BALL

$7.99

$

In Stock, only 4 left!

0

10

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

11

Exmark 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 17

0

12

Exmark 139-7454

PULLEY

$19.99

$

In Stock, only 2 left!

0

13

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

14

Exmark 115-5059-03

BLADE-HI LIFT
(Superseded to 142-6453-S)

$25.99

$

In Stock, Qty 7

0

16

Exmark 145-0411

Bolt-Blade, Sems

$3.49

$

In Stock, only 3 left!

0

17

Exmark 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

19

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, only 2 left!

0

21

Exmark 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

22

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 138-7262

Arm-Idler

$18.99

$

In Stock, only 1 left!

0

26

Exmark 119-8820

V-BELT
(Superseded to 119-8820-SL)

$62.99

$

Usually ships in 3-6 days

0

27

Exmark 137-2019

ROD-PIVOT

$12.99

$

In Stock, only 1 left!

0

28

Exmark 138-7502

DEFLECTOR-DISCHARGE

$64.99

$

In Stock, Qty 13

0

29

Exmark 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 9

0

30

Exmark 138-9800-03

BAFFLE-CUTOFF

$10.99

$

In Stock, only 3 left!

0

31

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

32

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

33

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

34

Exmark 136-4171

COVER-WASHOUT PORT

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 138-7266

Hook-Return Spring

$5.49

$

In Stock, only 1 left!

0

37

Exmark 138-7264

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

38

Exmark 139-5871

PIN-DECK

$2.99

$

In Stock, only 3 left!

0

39

Exmark 144-1906

COVER-BELT

$11.99

$

In Stock, only 4 left!

0

41

Exmark 139-3272-03

BRACKET-COVER, BELT

$12.99

$

In Stock, only 1 left!

0

42

Exmark 144-1944

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

43

Exmark 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

54

Exmark 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0

55

Exmark 138-7270

Belt Guide - Idler

$2.99

$

In Stock, Qty 5

0

56

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
