QZE725GKC42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Kohler KT725 (SN: 408644346 - 411294211) (Rev A) (2021) Fuel Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kohler KT725

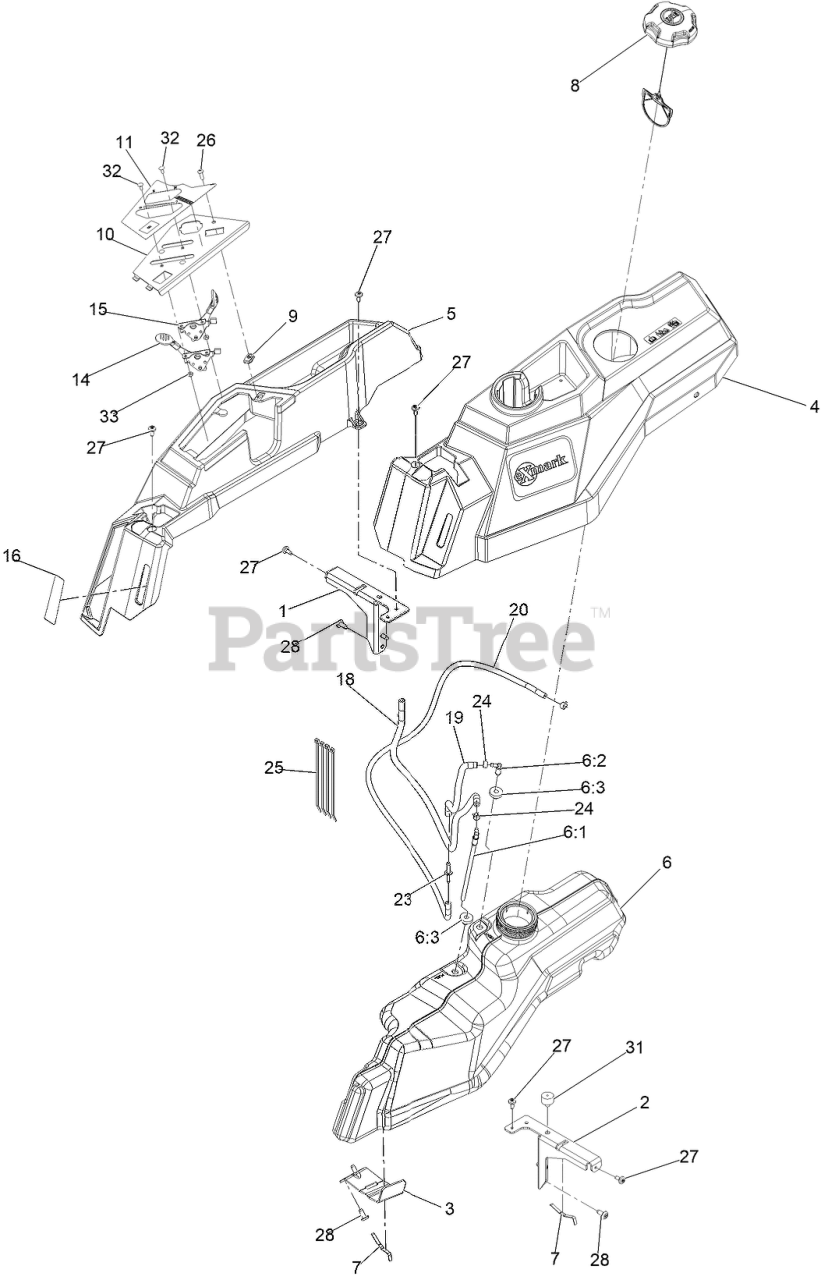

Fuel Assembly Parts Diagram

  • Title

1

Exmark 138-6070-03

SUPPORT-POD, RH

$18.99

$

Usually ships in 3-6 days

0

2

Exmark 138-6071-03

SUPPORT-POD, LH

$18.99

$

Usually ships in 3-6 days

0

3

Exmark 139-3271-03

SUPPORT-TANK, FUEL

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 142-4191

POD- LH

$47.99

$

Usually ships in 3-6 days

0

5

Exmark 142-4192

POD- RH

$47.99

$

Usually ships in 3-6 days

0

6

Exmark 138-6072

FUEL TANK ASM

$172.99

$

In Stock, only 1 left!

0

6:1

Exmark 139-1091

Connector-Elbow, 90 DEG

$9.49

$

Usually ships in 3-6 days

0

6:2

Exmark 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 5

0

6:3

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

7

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 6

0

8

Exmark 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

9

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Exmark 142-4193-03

PANEL- CONTROL

$27.99

$

Usually ships in 3-6 days

0

11

Exmark 142-5861

DECAL-CONTROL PANEL

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 116-0969

ASM,THROTTLE CABLE

$49.99

$

In Stock, only 2 left!

0

15

Exmark 126-6945

CABLE-CONTROL, CHOKE

$33.99

$

In Stock, only 1 left!

0

16

Exmark 142-6576

DECAL- COVER SC

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 109-0284

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

19

Exmark 109-0294

HOSE-FUEL

$6.99

$

In Stock, only 1 left!

0

20

Exmark 140-2712

Hose-Fuel

$22.99

$

Usually ships in 3-6 days

0

23

Exmark 117-5399

ADAPTOR-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

25

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

26

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

28

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

31

Exmark 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
